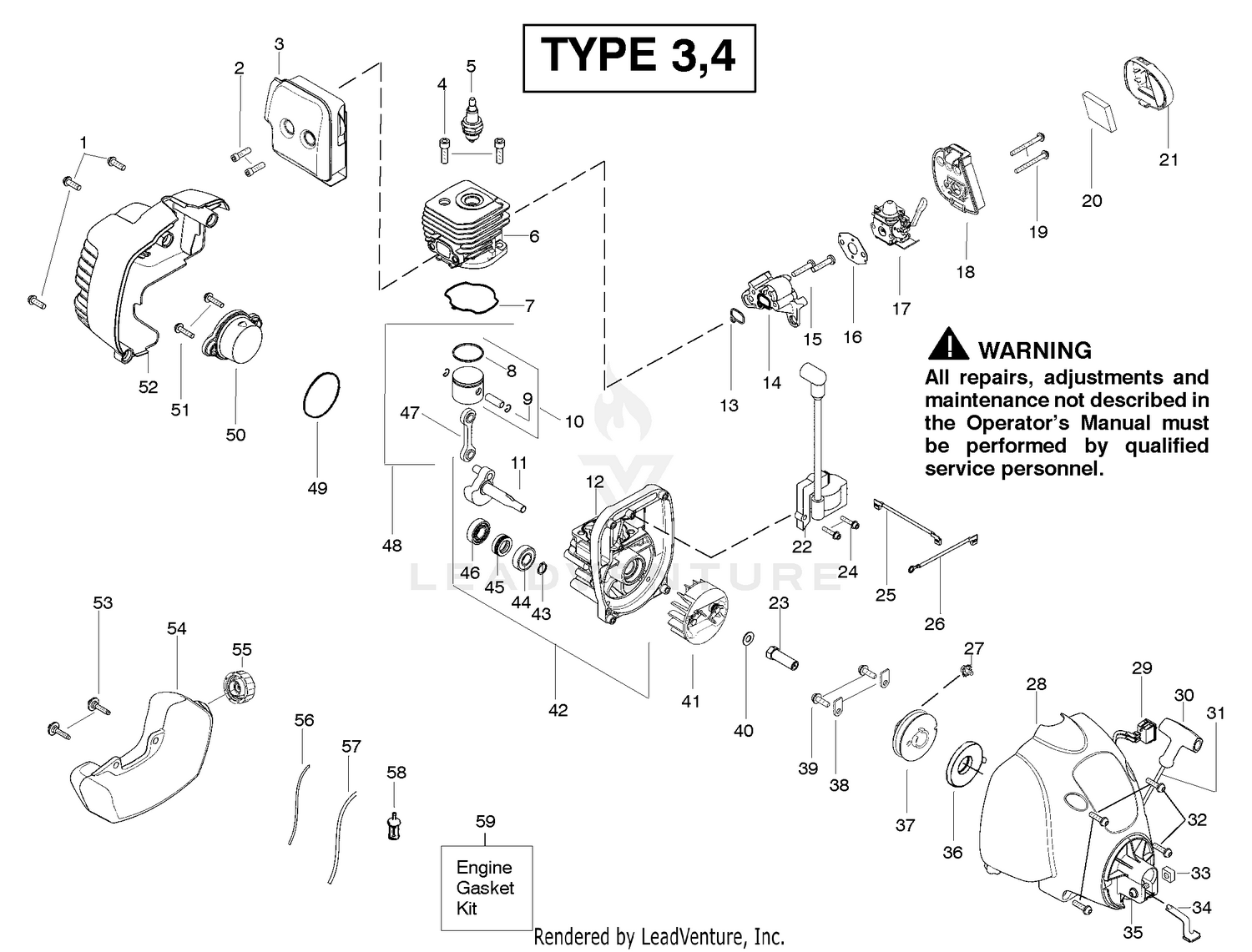

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
530015814 |
Screw Price: $1.99 |
| 2 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
530057829 |
Assy-Crankshaft Price: $12.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
112-1718-01 |
BEDBAR Price: $300.88 |
| 15 |
530016441 |
Screw Price: $1.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 17 |
137-6091 |
BEDKNIFE-EDGEMAX This part replaces 121-3165. Price: $172.72 |
| 17 |
530071822 |
KIT CARB ASSY # C1U-W24 This part replaces 530071752. Price: $29.99 |
| 18 |
580731001 |
BASE AIRBOX BLACK This part replaces 530057585. Price: $1.99 |
| 19 |
530016429 |
Screw Price: $1.99 |
| 20 |
530057781 |
Foam-Air Filter Price: $1.99 |
| 21 |
530057584 |
Cover-Air Box Price: $4.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 22 |
578287001 |
IGNITION MODULE This part replaces 530039237. Price: $11.99 |
| 23 |
530038604 |
Coupling-Drive Price: $1.99 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
120-9941 |
BOLT-BEDBAR Price: $13.66 |
| 24 |
530016357 |
Screw Price: $1.99 |
| 25 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 25 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 26 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 27 |
125-2779-01 |
WEIGHT-END, 5 INCH Price: $125.85 |
| 27 |
530016392 |
Screw Price: $1.99 |
| 28 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 28 |
530058600 |
Assy.-Fan Hsg Price: $14.99 |
| 29 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 29 |
545081869 |
Kit-Switch Price: $1.99 |
| 30 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 30 |
530027569 |
Handle-Starter Price: $1.99 |
| 31 |
530071767 |
Kit - Rope Price: $3.99 |
| 32 |
137-8402 |
ES REEL+,5IN FWY(18) 8 BLD LD This part replaces 119-9150. Price: $688.06 |
| 32 |
530016386 |
Screw Price: $5.99 |
| 33 |
530016124 |
Nut Price: $1.99 |
| 34 |
125-2772 |
LH THREADED INSERT ASM Price: $125.14 |
| 34 |
530057588 |
Clip-Spring Price: $1.99 |
| 35 |
125-2773 |
RH THREADED INSERT ASM Price: $73.73 |
| 35 |
530016430 |
Screw Price: $2.99 |
| 36 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 36 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 37 |
127-4284 |
WASHER-SPECIAL This part replaces 121-6953. Price: $5.88 |
| 37 |
530071786 |
Kit-Pulley-Starter Price: $3.99 |
| 38 |
530027523 |
Retainer-Pulley Price: $2.99 |
| 39 |
530015775 |
Screw Price: $1.99 |
| 40 |
530015828 |
Washer-Flat Price: $1.99 |
| 41 |
545221701 |
FLYWHEEL ASSY This part replaces 530054115. Price: $8.99 |
| 43 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 44 |
530055728 |
Outer Bearing Price: $6.99 |
| 45 |
530019264 |
Seal-C'case Price: $2.99 |
| 46 |
530032125 |
Inner Bearing Price: $11.99 |
| 47 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 49 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 51 |
530016386 |
Screw Price: $5.99 |
| 52 |
545011004 |
Shroud-Rear Price: $2.99 |
| 53 |
530016445 |
Retainer-Tank Price: $1.99 |
| 55 |
530014347 |
Assy-Fuel Cap Price: $4.99 |
| 56 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 57 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 58 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
