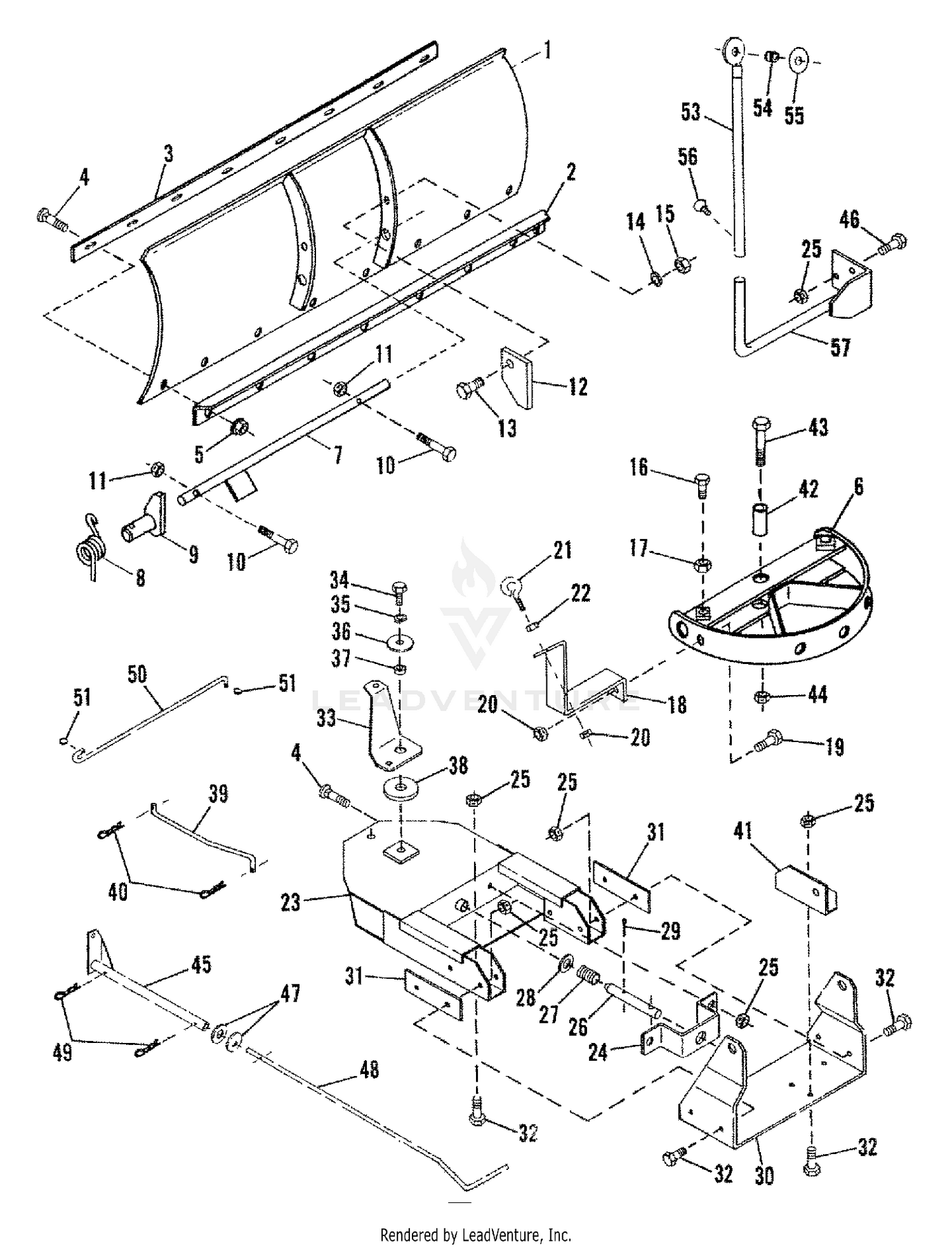

| Ref | Part Number | Description |
|---|
| 1 |
1774150 |
Blade Assembly 46" Price: Call Us |
| 2 |
1774151 |
Blade Back up Angle 46" Price: Call Us |
| 3 |
1774152 |
SCRAPER BLADE 46" Not Available Price: |
| 4 |
1186098 |
SCREW-CARR Not Available Price: |
| 5 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 6 |
1774153 |
Pivot Quadrant Assembly Price: Call Us |
| 7 |
1773361 |
ASSM-BREAK Not Available Price: |
| 8 |
1773362 |
Torsion Spring Price: Call Us |
| 9 |
1773363 |
ASSM-SPRIN Not Available Price: |
| 10 |
710-0606 |
Hex Bolt 1/4-20 x 1.50 This part replaces 1100811. Price: $4.67 |
| 11 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 12 |
1773364 |
STRAP-BLAD Not Available Price: |
| 13 |
1773365 |
SCR-HH 5/8 Not Available Price: |
| 14 |
1100247 |
WASHER-LK Not Available Price: |
| 15 |
712-3015 |
Nut, 5/8 Jam Type 5 This part replaces 1108891. Price: $4.02 |
| 16 |
710-3181 |
Hex Cap Screw, 1/2-13 x 1.5 This part replaces 1100064. Price: $6.01 |
| 17 |
712-3048 |
Nut, Hex Jam, 1/2-13 GR5 This part replaces 1186261. Price: $4.08 |
| 18 |
1773367 |
BRACKET-PIVOT CONTROL Not Available Price: |
| 19 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces 1100046. Price: $3.78 |
| 20 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 21 |
1773368 |
EYE-BOLT Not Available Price: |
| 22 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90 |
| 23 |
1774154 |
Pivot Bracket Assembly Price: Call Us |
| 24 |
1773358 |
BRACKET-LOCK PIN Not Available Price: |
| 25 |
1732499 |
Nut-5/16-18 Hex Lock Price: $3.49 |
| 26 |
1773359 |
PIN-LOCK Not Available Price: |
| 27 |
1773360 |
SPRING Not Available Price: |
| 28 |
736-0237 |
Washer, Flat, .65 x 1.25 x .075 This part replaces 1107386. Price: $3.90 |
| 29 |
1100351 |
COTTER PIN Not Available Price: |
| 30 |
1774155 |
Mounting Bracket Price: Call Us |
| 31 |
1774156 |
Strap Price: Call Us |
| 32 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces 1100045. Price: $3.66 |
| 33 |
1774157 |
Pivot Release Bracket Price: Call Us |
| 34 |
710-0347 |
Hex Cap Screw 3/8-16 x 1.75 This part replaces 1100086. Price: $4.39 |
| 35 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 36 |
1805077 |
Flat Washer Price: Call Us |
| 37 |
1773370 |
SPACER Not Available Price: |
| 38 |
1774158 |
Flat Washer Price: Call Us |
| 39 |
1774159 |
Lock Pin Release Rod Price: Call Us |
| 40 |
1717897 |
PIN-CLIP Not Available Price: |
| 41 |
1774160 |
Lift Bracket Price: Call Us |
| 42 |
1773375 |
Spacer Price: Call Us |
| 43 |
710-0182A |
SCREW-HEX 1/2-13 X 3.00 This part replaces 1100057. Price: $6.88 |
| 44 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 45 |
1774176 |
Pivot Control Arm Price: Call Us |
| 46 |
1100044 |
Bolt-5/15-18 x 3/4 Hex 3 Price: $3.76 |
| 47 |
1185023 |
Washer-19/32 x 1-3/16 Price: Call Us |
| 48 |
1774161 |
Control Handle Rod Price: Call Us |
| 49 |
1717897 |
PIN-CLIP Not Available Price: |
| 50 |
1773374 |
PIVOT ROD Not Available Price: |
| 51 |
1751908 |
RING COTTER Not Available Price: |
| 53 |
1774162 |
Control Support Assembly Price: Call Us |
| 54 |
1773332 |
BUSHING-CONTROL RO Not Available Price: |
| 55 |
1774163 |
Angling Control Decal Price: Call Us |
| 56 |
1773334 |
SCR-THUMB Not Available Price: |
| 57 |
1774164 |
Control Rod Support Assembly Price: Call Us |
