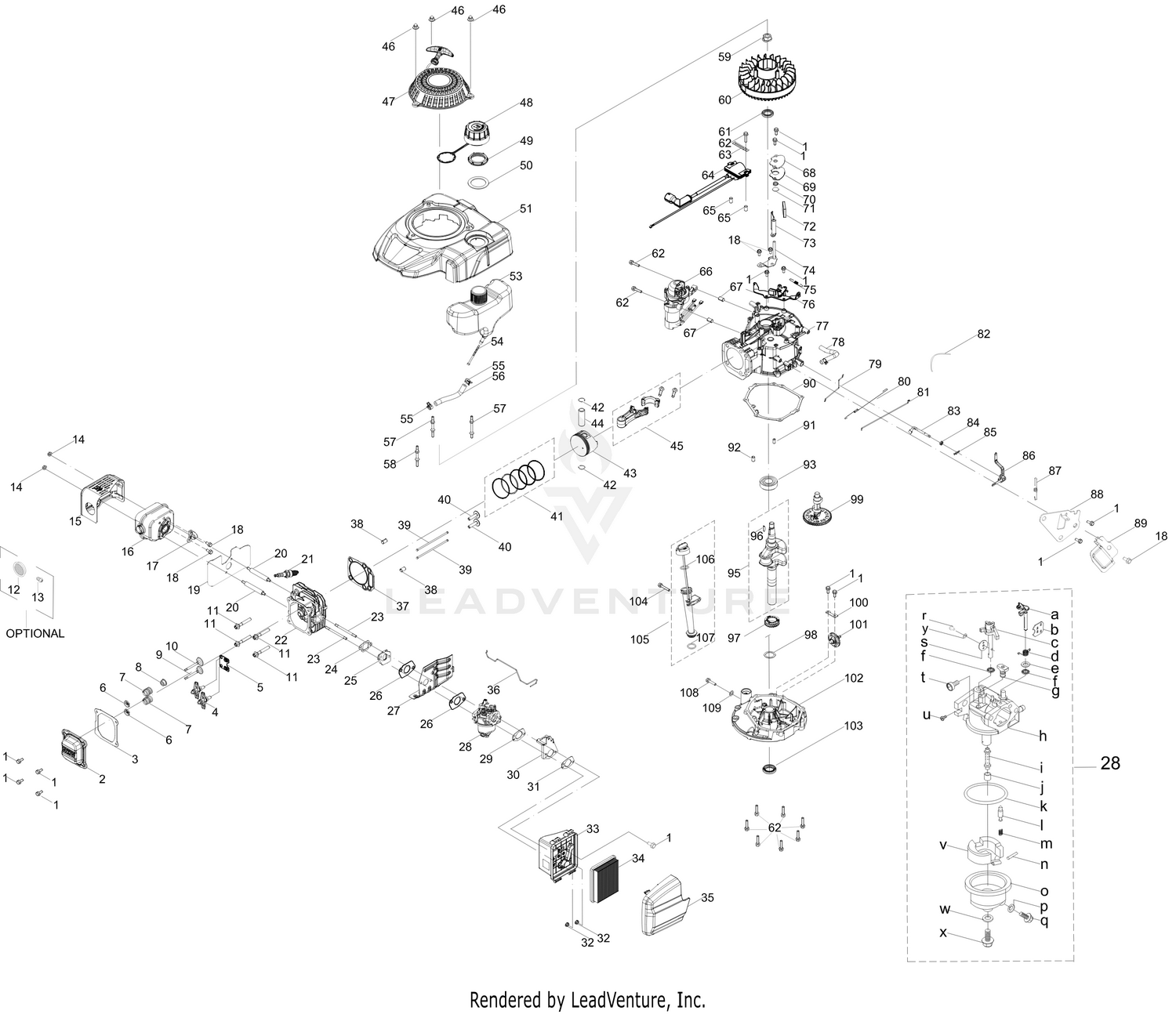

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| b |
None |
Choke Plate |
| c |
None |
Throttle Shaft |
| d |
None |
Choke Return Spring |
| e |
736-04556 |
WASHER Price: $3.56 |
| f |
None |
Throttle/Choke Shaft Fiber O-Ring |
| g |
None |
Idle Jet Assembly |
| h |
None |
Carburetor Body |
| i |
None |
Emulsion Tube |
| j |
None |
Main Jet |
| k |
951-11589 |
FUEL BOWL O-RING Price: $6.04 |
| l |
793P00165A |
NEEDLE VALVE This part replaces 793P00165. Price: $4.13 |
| m |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| n |
711-06043A |
FLOAT PIN This part replaces 711-06043. Price: $0.56 |
| o |
908-05001 |
FLOAT BOWL Price: $7.16 |
| p |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| q |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| r |
None |
Screw M3×6 Throttle Plate |
| s |
None |
Throttle Plate |
| t |
None |
Idle Speed Adjusting Screw |
| u |
None |
Idle Mixture Screw |
| v |
731P09132A |
FLOAT Price: $4.45 |
| w |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| x |
710-04945 |
BOLT M8-1 x 10 Price: $3.66 |
| y |
None |
Throttle Plate Lock Washer |
| 1 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 |
951-14609A |
VALVE COVER This part replaces 951-14609. Price: $14.42 |
| 3 |
751P18586A |
VALVE COVER GASKET This part replaces 751P18586. Price: $3.94 |
| 4 |
951-11606A |
ROCKER ARM This part replaces 951-11606. Price: $29.12 |
| 5 |
951-16027 |
PUSH ROD GUIDE Price: $4.25 |
| 6 |
951-12000 |
INTAKE VALVE SPRING RETAINER Price: $3.53 |
| 7 |
951-12116 |
VALVE SPRING Price: $3.24 |
| 8 |
921-04237A |
INTAKE VALVE SEAL This part replaces 921-04237. Price: $7.20 |
| 9 |
951-15669A |
EXHAUST VALVE This part replaces 951-15669. Price: $6.21 |
| 10 |
751P14099A |
INTAKE VALVE This part replaces 951-14099. Price: $3.53 |
| 11 |
710-06200 |
SCREW M8 x 54 GR10 Price: $5.59 |
| 12 |
951-10351A |
SPARK ARRESTOR This part replaces 951-10351. Price: $48.91 |
| 13 |
710-04983 |
SCREW M3.5 x 9.5 Price: $3.65 |
| 14 |
712-05015 |
HEX NUT Price: $5.78 |
| 15 |
951-15566 |
MUFFLER SHIELD Price: $24.41 |
| 16 |
951-14429A |
MUFFLER ASSEMBLY This part replaces 951-14429. Price: $55.88 |
| 17 |
951-14428A |
CHOKE TEMP CONTROL THERMOSTAT This part replaces 951-14428. Price: $36.29 |
| 18 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 19 |
751P18909A |
MUFFLER GASKET This part replaces 751P18909. Price: $5.60 |
| 20 |
710-05094 |
STUD M6-1 x 95 Price: $3.78 |
| 21 |
951-14437 |
SPARK PLUG Price: $7.34 |
| 22 |
951-16028 |
CYLINDER HEAD Price: $86.18 |
| 23 |
951-15580 |
STUD M6 x 90 Price: $5.25 |
| 24 |
751P18910A |
MUFFLER GASKET This part replaces 751-18910. Price: $4.45 |
| 25 |
951-15671A |
CARBURETOR INSULATOR This part replaces 951-15671. Price: $6.68 |
| 26 |
721P05941A |
CARBURETOR GASKET This part replaces 721P05941. Price: $2.98 |
| 27 |
751P18913A |
HEAT SHIELD This part replaces 751-18913. Price: $4.92 |
| 28 |
951-05538 |
CARBURETOR ASSEMBLY HY-5X70A Price: $78.50 |
| 29 |
721P05942A |
AIR FILTER BRACKET GASKET This part replaces 721P05942. Price: $5.20 |
| 30 |
908-05265 |
AIR FILTER BRACKET Price: $8.03 |
| 31 |
951-14419A |
AIR FILTER BASE GASKET This part replaces 951-14419. Price: $7.08 |
| 32 |
712-05015 |
HEX NUT Price: $5.78 |
| 33 |
931-13118A |
AIR FILTER HOUSING BASE This part replaces 931-13118. Price: $11.56 |
| 34 |
951-15245 |
AIR FILTER Price: $13.77 |
| 35 |
931-13119A |
AIR FILTER COVER This part replaces 931-13119. Price: $10.52 |
| 36 |
951-15672 |
TEMPERATURE CONTROL LINKAGE Price: $5.78 |
| 37 |
921-04257 |
CYLINDER HEAD GASKET Price: $12.04 |
| 38 |
715-04108 |
DOWEL PIN Price: $3.65 |
| 39 |
951-16026 |
PUSH ROD Price: $6.88 |
| 40 |
951-14432A |
TAPPET This part replaces 951-14432. Price: $7.49 |
| 41 |
951-14317A |
PISTON RING SET This part replaces 951-14317. Price: $23.87 |
| 42 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 43 |
951-15675 |
PISTON ASSEMBLY Price: $32.66 |
| 44 |
951-11633 |
PISTON PIN Price: $6.66 |
| 45 |
951-05539 |
CONNECTING ROD ASSEMBLY Price: $24.48 |
| 46 |
712-04276A |
ACORN NUT M6-1 This part replaces 712-04276. Price: $5.38 |
| 47 |
951-05360A |
RECOIL STARTER ASSEMBLY This part replaces 951-05360. Price: $50.15 |
| 48 |
951-15255A |
FUEL CAP W/TETHER This part replaces 951-15255. Price: $23.25 |
| 49 |
931-10290A |
FUEL TANK NUT This part replaces 931-10290. Price: $4.85 |
| 50 |
951-14406A |
FUEL TANK GROMMET This part replaces 951-14406. Price: $9.68 |
| 51 |
631-05436A |
ENGINE SHROUD W/O IGNITION SWITCH This part replaces 631-05436. Price: $30.21 |
| 53 |
931-12771A |
FUEL TANK This part replaces 931-12771. Price: $43.89 |
| 54 |
951-12296A |
FUEL FILTER This part replaces 951-12296. Price: $8.68 |
| 55 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 56 |
735-05053A |
FUEL HOSE This part replaces 735-05053. Price: $8.96 |
| 57 |
951-14397 |
STARTER/SHROUD REAR STUD Price: $8.66 |
| 58 |
951-14819 |
STARTER SHROUD FRONT STUD M6X74 Price: $7.56 |
| 59 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33 |
| 60 |
951-15491 |
FLYWHEEL ASSEMBLY Price: $89.57 |
| 61 |
951-11596A |
UPPER CRANKSHAFT SEAL This part replaces 951-11596. Price: $5.44 |
| 62 |
710-04943 |
BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 63 |
951-11622A |
FLEXIBLE CLAMP This part replaces 951-11622. Price: $3.42 |
| 64 |
925-07167 |
IGNITION COIL ASSEMBLY Price: $71.60 |
| 65 |
950-06314 |
IGNITION COIL SPACER Price: $5.47 |
| 66 |
951-05534 |
ELECTRIC STARTER ASSEMBLY Price: $165.11 |
| 67 |
715-04088A |
DOWEL PIN This part replaces 715-04088. Price: $2.97 |
| 68 |
951-14404 |
BREATHER COVER PLATE Price: $12.64 |
| 69 |
951-14405 |
BREATHER GASKET Price: $8.96 |
| 70 |
732-04718 |
BREATHER VALVE SPRING Price: $3.78 |
| 71 |
951-11614 |
BREATHER VALVE Price: $3.53 |
| 72 |
951-11730 |
BREATHER SCREEN Price: $4.75 |
| 73 |
951-11529A |
AIR VANE This part replaces 951-11529. Price: $6.25 |
| 74 |
751P18911 |
AIR VANE BRACKET Price: $5.00 |
| 75 |
932-05566A |
ENGINE BRAKE SPRING This part replaces 932-05566. Price: $4.19 |
| 76 |
951-05533 |
ENGINE BRAKE ASSEMBLY Price: $33.36 |
| 77 |
951-16030 |
CRANKCASE Price: $113.76 |
| 78 |
951-15678 |
BREATHER HOSE ASSEMBLY Price: $6.85 |
| 79 |
951-15679 |
CHOKE LINKAGE Price: $5.78 |
| 80 |
951-11258A |
THROTTLE SPRING This part replaces 951-11258. Price: $3.81 |
| 81 |
951-15677 |
THROTTLE LINKAGE Price: $5.20 |
| 82 |
725-06031 |
CABLE TIE - 3 x 150 Price: $2.04 |
| 83 |
951-11621 |
GOVERNOR ARM SHAFT Price: $8.68 |
| 84 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 85 |
714-04078 |
COTTER PIN Price: $3.66 |
| 86 |
951-05160A |
GOVERNOR ARM ASSEMBLY Price: $5.37 |
| 87 |
951-15680 |
GOVERNOR SPRING Price: $5.95 |
| 88 |
908-05254 |
COMPONENT BRACKET Price: $5.71 |
| 89 |
908-05255 |
GOVERNOR SHIELD Price: $4.02 |
| 90 |
751P18908A |
CRANKCASE COVER GASKET This part replaces 751-18908. Price: $6.63 |
| 91 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 92 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 93 |
951-11369 |
BEARING Price: $30.42 |
| 95 |
751P18914 |
CRANKSHAFT This part replaces 751-18914. Price: $51.61 |
| 96 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 97 |
951-15130 |
DRIVE TIMING GEAR Price: $12.54 |
| 98 |
736-04491 |
THRUST WASHER Price: $3.78 |
| 99 |
751P18912 |
CAMSHAFT This part replaces 751-18912. Price: $22.84 |
| 100 |
951-11609 |
GOVERNOR GEAR MOUNTING PLATE Price: $4.44 |
| 101 |
951-05336A |
GEAR GOVERNOR This part replaces 951-05336. Price: $7.77 |
| 102 |
951-15685 |
CRANKCASE COVER Price: $77.88 |
| 103 |
951-15686A |
LOWER CRANKSHAFT OIL SEAL This part replaces 951-15686. Price: $8.60 |
| 104 |
710-04980 |
BOLT M6-1 x 35 GR8.8 Price: $3.42 |
| 105 |
951-05540A |
OIL DIPSTICK This part replaces 951-05540. Price: $17.52 |
| 106 |
921-04795A |
O-RING This part replaces 921-04795. Price: $3.38 |
| 107 |
921-04697A |
O-RING This part replaces 921-04697. Price: $2.45 |
| 108 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 109 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
