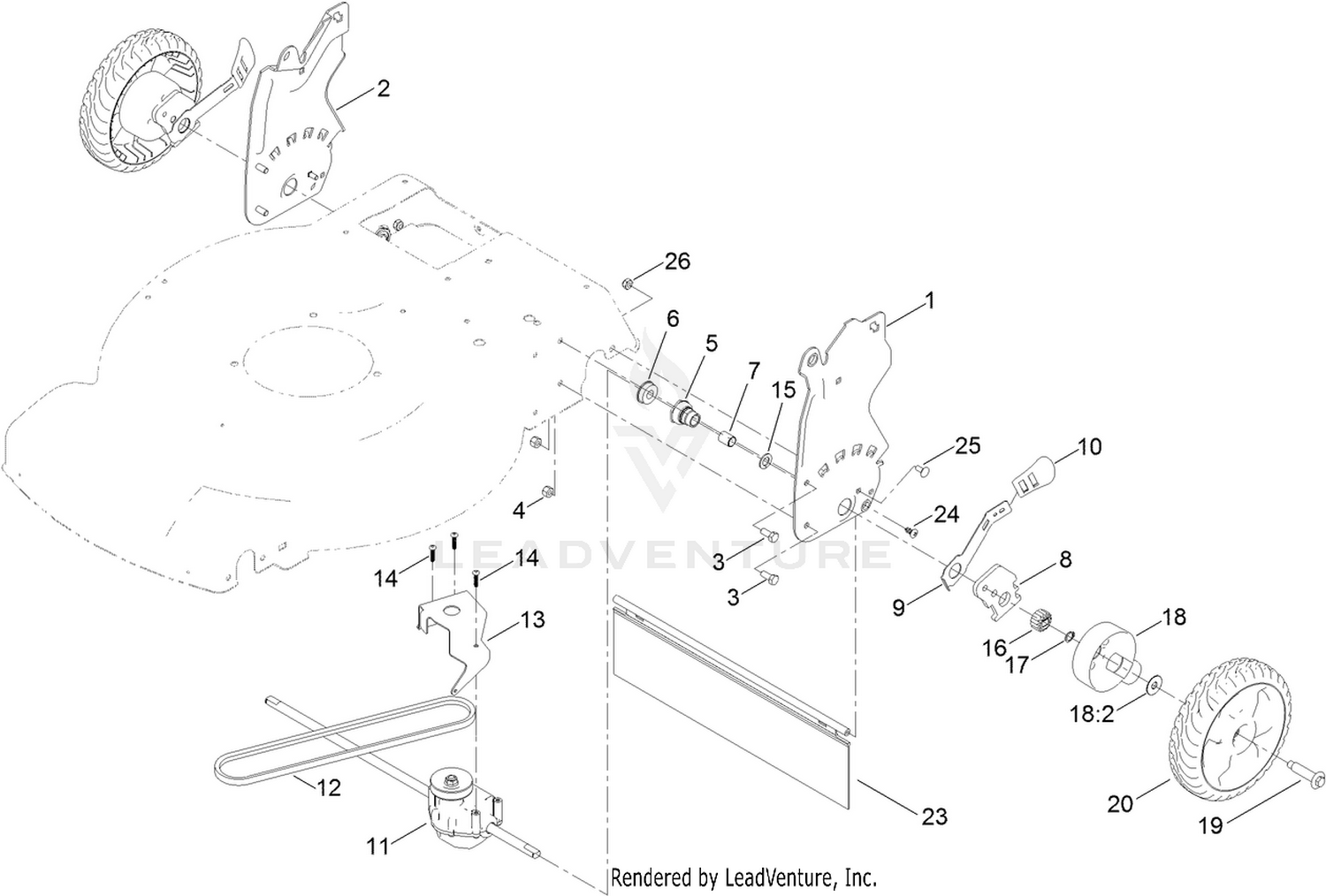

Transmission and Rear Wheel Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-9693-03 | PLATE-HOC, LH Price: $14.01 |
| 2 | 131-9694-03 | PLATE-HOC, RH Price: $14.01 |
| 3 | 137-3052 | SCREW-HH Price: $0.34 |
| 4 | 119-4038 | NUT-HEX Price: $0.31 |
| 5 | 108-9779 | RETAINER-BUSHING, HOC Price: $9.09 |
| 6 | 104-8699 | BEARING-BALL Price: $3.28 |
| 7 | 108-9782 | BUSHING-SLEEVE Price: $2.32 |
| 8 | 136-9090 | ARM-PIVOT, REAR Price: $8.02 |
| 9 | 108-9780 | ARM-SPRING Price: $6.67 |
| 10 | 110-0549 | KNOB-HOC Price: $1.08 |
| 11 | 121-9178 | TRANSMISSION ASM Price: $75.32 |
| 12 | 115-4669 | BELT-V Price: $17.50 |
| 13 | 114-7977-03 | BRACKET-TRANSMISSION Price: $8.85 |
| 14 | 120-9676 | SCREW-PLASTITE Price: $0.34 |
| 15 | 110-7191 | WASHER-THRUST Price: $1.79 |
| 16 | 131-5399 | GEAR-PINION, 15T Price: $2.67 |
| 17 | 32151-61 | RING-RETAINING Price: $2.39 |
| 18 | 136-9059 | GEAR COVER ASM Price: $3.79 |
| 19 | 614650 | BOLT-SHOULDER Price: $3.28 |
| 20 | 137-4835 | WHEEL GEAR ASM, 8IN Price: $28.44 |
| 23 | 139-6604 | SHIELD-TRAILING Price: $11.18 |
| 24 | 139-1692 | SCREW-THD Price: $0.32 |
| 25 | 100-1445 | BOLT-CARR Price: $0.33 |
