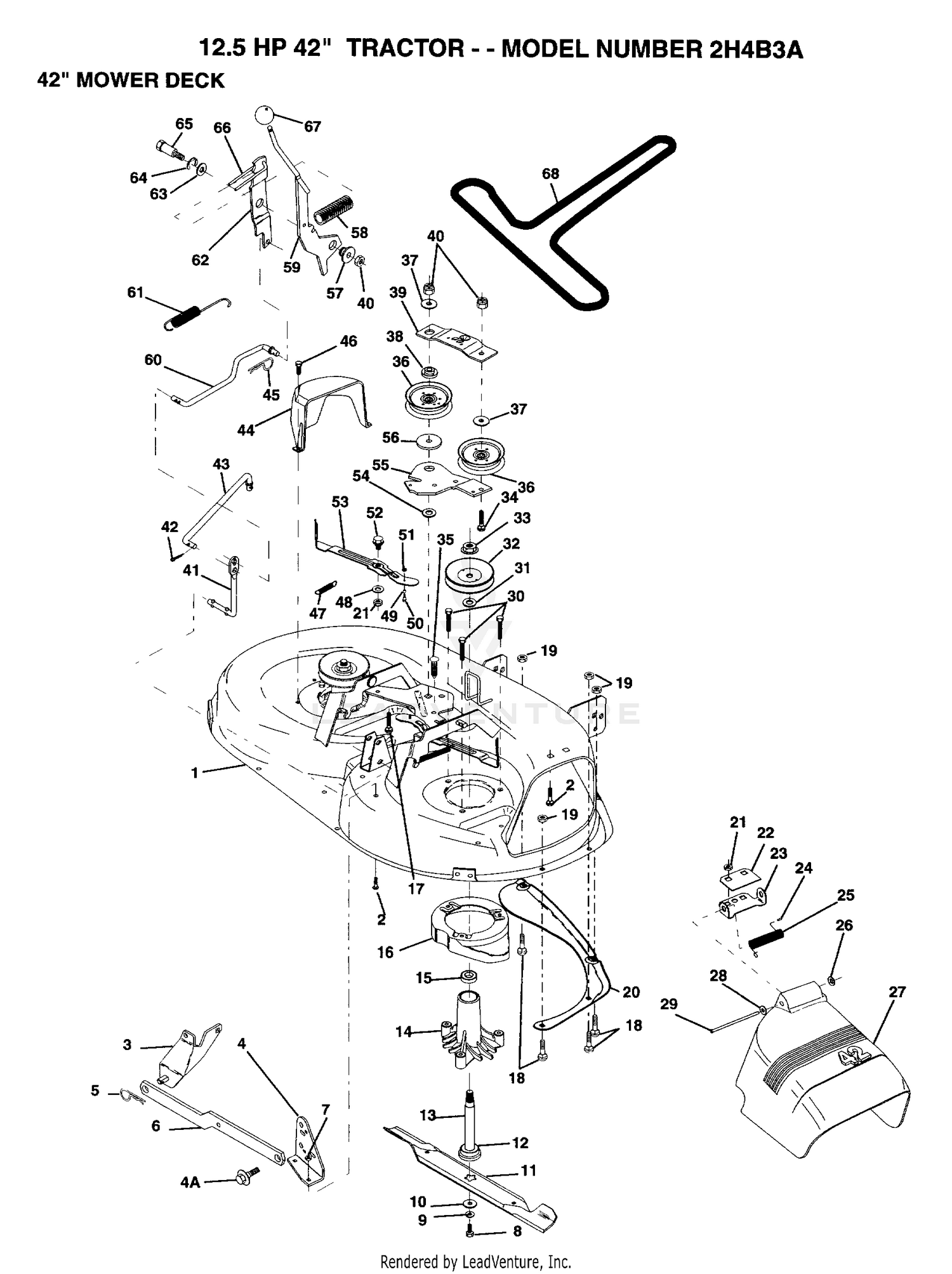

| Ref | Part Number | Description |
|---|
| 1 |
138024 |
SUB= 145338 Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4A |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
73800500 |
NUT Price: Call Us |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 010 |
100-9237 |
STARTER ASM Price: $774.46 |
| 10 |
129962 |
WASHER BLADE Price: Call Us |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
136929 |
SUB= 140329 Price: Call Us |
| 17 |
72110618 |
BOLT CARRIAGE Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
73800500 |
NUT Price: Call Us |
| 020 |
104-8608 |
YOKE ASM Price: $437.88 |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 030 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 30 |
78158 |
SUB= 17580520 Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
19131612 |
WASHER GT Price: Call Us |
| 38 |
133502 |
RETAINER SPACER Price: Call Us |
| 39 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 040 |
98-7744 |
BEARING Price: $35.64 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 42 |
76020312 |
SUB= 3145 Price: Call Us |
| 43 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 44 |
134236 |
SUB= 140088 Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 47 |
131335 |
SPRING EXTENSION Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 050 |
98-7743 |
BEARING Price: $37.48 |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
105529X |
SUB= 139888 Price: Call Us |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
133844 |
IDLER ARM Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 57 |
127498 |
BUSHING Price: Call Us |
| 58 |
128759 |
SUB= 918128759 Price: Call Us |
| 59 |
133573 |
CLUTCH ARM PRI AS Price: Call Us |
| 060 |
98-7745 |
CLUTCH-RUNNING, OVER Price: $356.53 |
| 61 |
131870 |
RETURN SPRING Price: Call Us |
| 62 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 63 |
121748X |
WASHER Price: Call Us |
| 64 |
12000029 |
RING Price: Call Us |
| 065 |
105-2887 |
PINION-BEVEL Price: $174.63 |
| 65 |
128903 |
SHOULDER BOLT Price: Call Us |
| 66 |
127845 |
SPRING KEEPER Price: Call Us |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 68 |
130969 |
BELT-V.92.4.MWR Price: Call Us |
| 070 |
98-7746 |
FRAME-END, DRIVE Price: $131.70 |
| 080 |
100-9239 |
MAGENTIC SWITCH ASM Price: $775.90 |
| 090 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7755 |
BALL Price: $0.42 |
| 160 |
98-7754 |
SPRING Price: $4.70 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
98-7758 |
BOLT ASM Price: $4.90 |
| 200 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 210 |
99-8371 |
NUT-HEX This part replaces 105-2873. Price: $3.75 |
| 220 |
99-8375 |
COVER Price: $24.86 |
| 230 |
100-9240 |
BOLT Price: $7.23 |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
