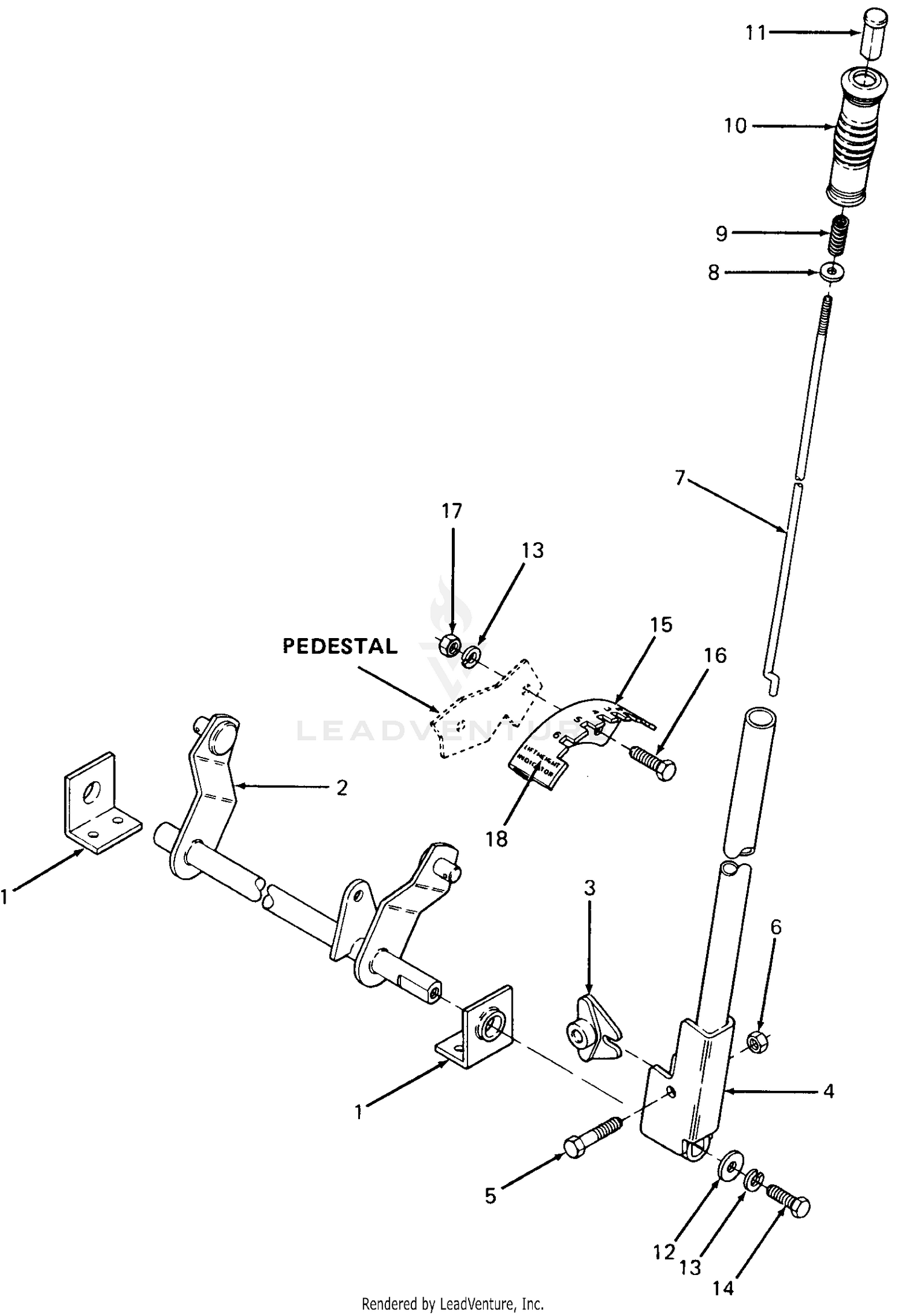

| Ref | Part Number | Description |
|---|
| 1 |
703-1535 |
BRACKET-LIFT SHAFT Not Available Price: |
| 2 |
703-1578 |
Shaft Assy, Lift Price: Call Us |
| 3 |
759-3495 |
KIT-INDEX Not Available Price: |
| 4 |
703-1592 |
ASSEMBLY-LIFT HANDLE Not Available Price: |
| 5 |
710-3191A |
SCREW 3/8-24X1.62 GR5 Not Available This part replaces 710-3191. Price: |
| 6 |
712-0262 |
Nut, Hex Center Lock Jam, 3/8-24 Price: $3.90 |
| 7 |
747-3126 |
ROD, INDEX Not Available Price: |
| 8 |
736-3090 |
Washer, Flat, .260 X .720 X .06 Price: $5.79 |
| 9 |
732-0335 |
SPRING Not Available Price: |
| 10 |
731-3158 |
Grip, Lift Handle This part replaces 720-3007. Price: $15.37 |
| 11 |
711-0642A |
Button, Handle This part replaces 711-0642. Price: $6.90 |
| 12 |
736-3089 |
FLAT WASHER .345X1.0X.100 Not Available Price: |
| 13 |
936-0119 |
Washer, Lock, 5/16 This part replaces 736-0119. Price: $4.29 |
| 14 |
710-0157 |
Screw, Hex Cap, 5/16-24 X .75 Lg Price: $3.90 |
| 15 |
703-1577-0498 |
INDEX BRACKET (CUB YELLOW) Not Available This part replaces 703-1577. Price: |
| 16 |
710-0759 |
SCREW 5/16-18 x .625 GR5 Not Available Price: |
| 17 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 27 |
3220-6 |
NUT-JAM Price: $1.25 |
| 28 |
66-9770 |
SEAL Price: $20.05 |
| 29 |
66-9780 |
BUSHING Price: $11.69 |
| 36 |
93-3609 |
BOLT-SPECIAL Price: $23.98 |
| 37 |
66-9860 |
UPPER COVER AND JACKET ASM Price: $222.25 |
| 38 |
66-9870 |
PLATE-RETAINING Price: $9.64 |
| 39 |
66-9880 |
WASHER-PLATE, RETAINING Price: $0.98 |
| 40 |
66-9890 |
RING-RETAINING Price: $4.93 |
| 41 |
66-9900 |
SHAFT-INPUT Price: $170.42 |
| 503213512 |
503213512 |
SCREW Price: $2.99 |
| 503216820 |
503216220 |
SCREW W/ LOCKING FLUID This part replaces 503216820. Price: $3.99 |
| 503871801 |
503871801 |
CYLINDER COVER Price: $37.99 |
| 503872101 |
537320805 |
MUFFLER COVER This part replaces 503872101. Price: $17.99 |
| 503961301 |
503961301 |
SCREW MT5X11 Price: $0.50 |
| 503972101 |
503972101 |
COVER Price: $5.99 |
| 503981201 |
503981201 |
DECAL Price: $2.02 |
| 503981202 |
503981202 |
DECAL Price: $2.05 |
| 503981203 |
503981203 |
DECAL Price: $4.00 |
| 503981214 |
503981214 |
DECAL Price: Call Us |
| 503981215 |
503981215 |
Decal Price: $1.82 |
| 503981216 |
503981216 |
Decal Price: $3.75 |
| 503981217 |
503981217 |
DECAL Price: $1.55 |
| 503981218 |
503981218 |
Decal Price: $1.77 |
| 503981230 |
503981230 |
Decal Price: $1.94 |
| 503981235 |
503981235 |
Decal Price: $1.70 |
| 503981236 |
503981236 |
Decal Price: $1.44 |
| 537104401 |
537104401 |
PROTECTOR Price: $8.99 |
