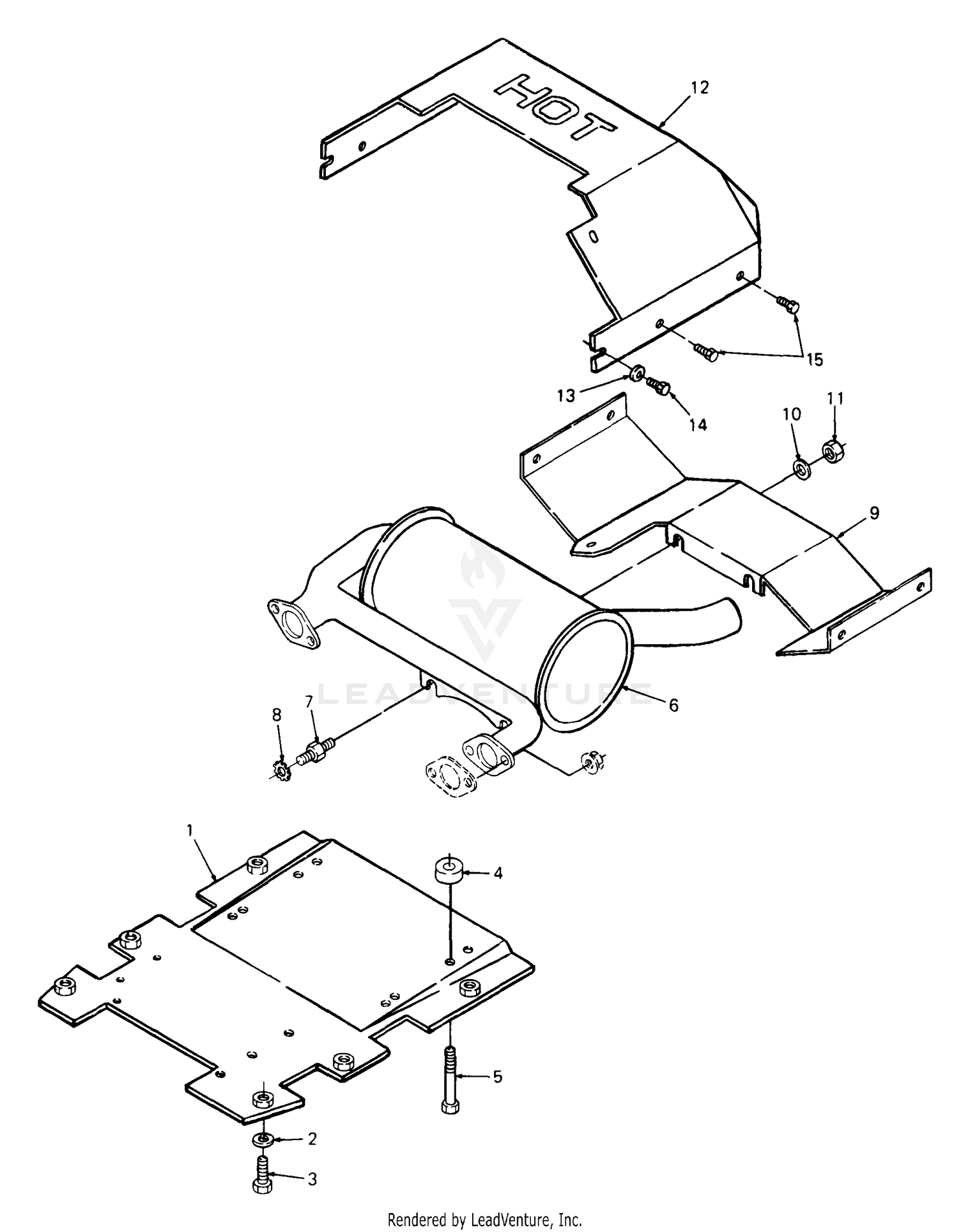

| Ref | Part Number | Description |
|---|
| 1 |
603-0025 |
PLATE ASSY, ENGINE MOUNTING Not Available Price: |
| 2 |
736-0185 |
Washer, Flat, .406 X .75 X .06 Thk Price: $3.43 |
| 3 |
710-3118 |
Bolt, Patch, 3/8-16 X 1.0 Lg Price: $4.77 |
| 4 |
950-3009 |
SPACER This part replaces 750-3009. Price: $10.74 |
| 5 |
710-3124 |
SCREW 3/8-16X2.25 GR5 Not Available Price: |
| 6 |
751-3110 |
MUFFLER Not Available Price: |
| 7 |
711-3006 |
STUD 7/16-14 Not Available Price: |
| 8 |
736-3086 |
WASHER-EXT LOCK .450X.750X.0 Not Available Price: |
| 9 |
703-2176 |
DUCTING-MU Not Available Price: |
| 10 |
736-3024 |
Washer, Flat, .47 X .750 X .0605 Thk Price: $3.19 |
| 11 |
712-3019 |
Nut, Hex, 7/16-14 GR5 Price: $5.94 |
| 12 |
703-2177 |
HEAT SHIELD Not Available Price: |
| 13 |
736-0142 |
Washer, Flat, .281 X .50 X .063 Thk Price: $3.95 |
| 14 |
710-3209 |
Bolt, Hex, M6-1.0 X 10 MM Lg GR5 Price: $7.30 |
| 506509901 |
506509901 |
Shaft Price: $6.08 |
| 506556301 |
506556301 |
BOLT Price: $3.99 |
| 506565301 |
506565301 |
WASHER Price: $4.99 |
| 506565501 |
585065201 |
KNOB This part replaces 506565501. Price: $17.99 |
| 506668801 |
506668801 |
PIN Price: $3.99 |
| 506915101 |
506915101 |
SEAT BASE Price: $118.94 |
| 506915301 |
506915301 |
SEAT SPRING Price: $17.99 |
| 725249161 |
725249371 |
Screw M10x25 This part replaces 725249161. Price: $1.82 |
| 734116441 |
734116441 |
SPACER Price: $3.99 |
| 734117441 |
734117441 |
WASHER Price: $3.99 |
| 735311200 |
735311200 |
RETAINING RING SGA 10 Price: $2.99 |
