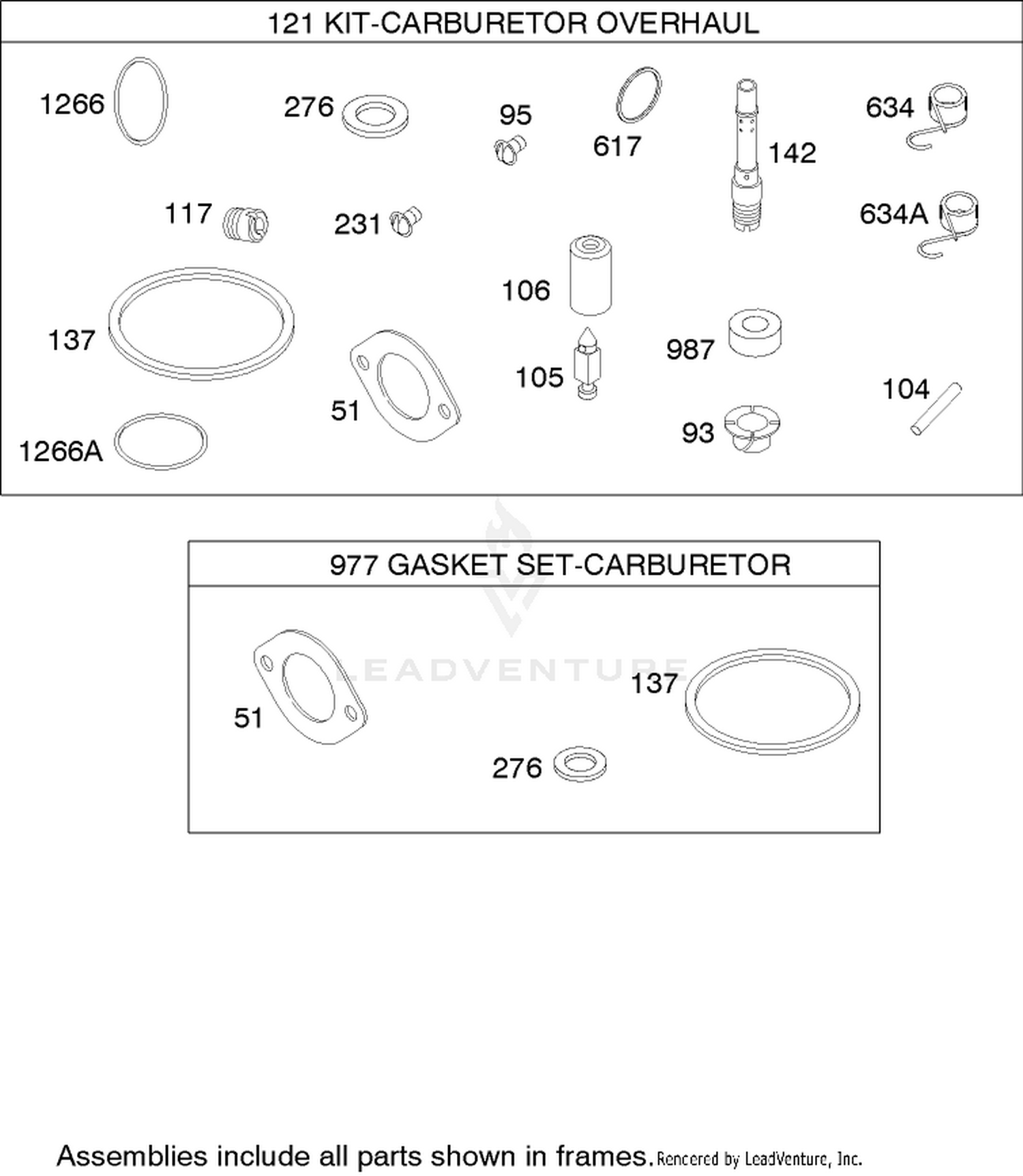

Carburetor Overhaul Kit Assembly Briggs and Stratton Model 180h07-0166-e1

Carburetor Overhaul Kit Assembly  Briggs and Stratton Model 180h07-0166-e1

Parts (18)

RefPart NumberDescription
51 692137 Gasket-Intake Price: Call Us
93 690602 Bushing-Shaft, Throttle Price: Call Us
95 691636 Screw Price: Call Us
104 690525 Pin-Hinge, Carburetor Float Price: Call Us
105 231855 Valve-Needle, Float Price: Call Us
106 690577 Seat-Inlet Price: Call Us
117 694352 Jet-Main (Std) Price: Call Us
121 697154 Carburetor Overhaul Kit Price: Call Us
137 281165 Gasket-Bowl, Float Price: Call Us
142 697140 Nozzle-Carburetor Price: Call Us
231 691636 Screw Price: Call Us
276 692255 Washer-Sealing Price: Call Us
617 692138 Seal-O Ring (Intake Manifold) (Red) Price: Call Us
634 690801 Spring / Seal ASM Price: Call Us
634A 690802 Spring and Seal Asm Price: Call Us
977 690192 Carburetor Gasket Set Price: Call Us
987 691326 Seal-Shaft, Throttle Price: Call Us
1266 691917 Seal-O Ring (Intake Elbow) (Red) Price: Call Us
