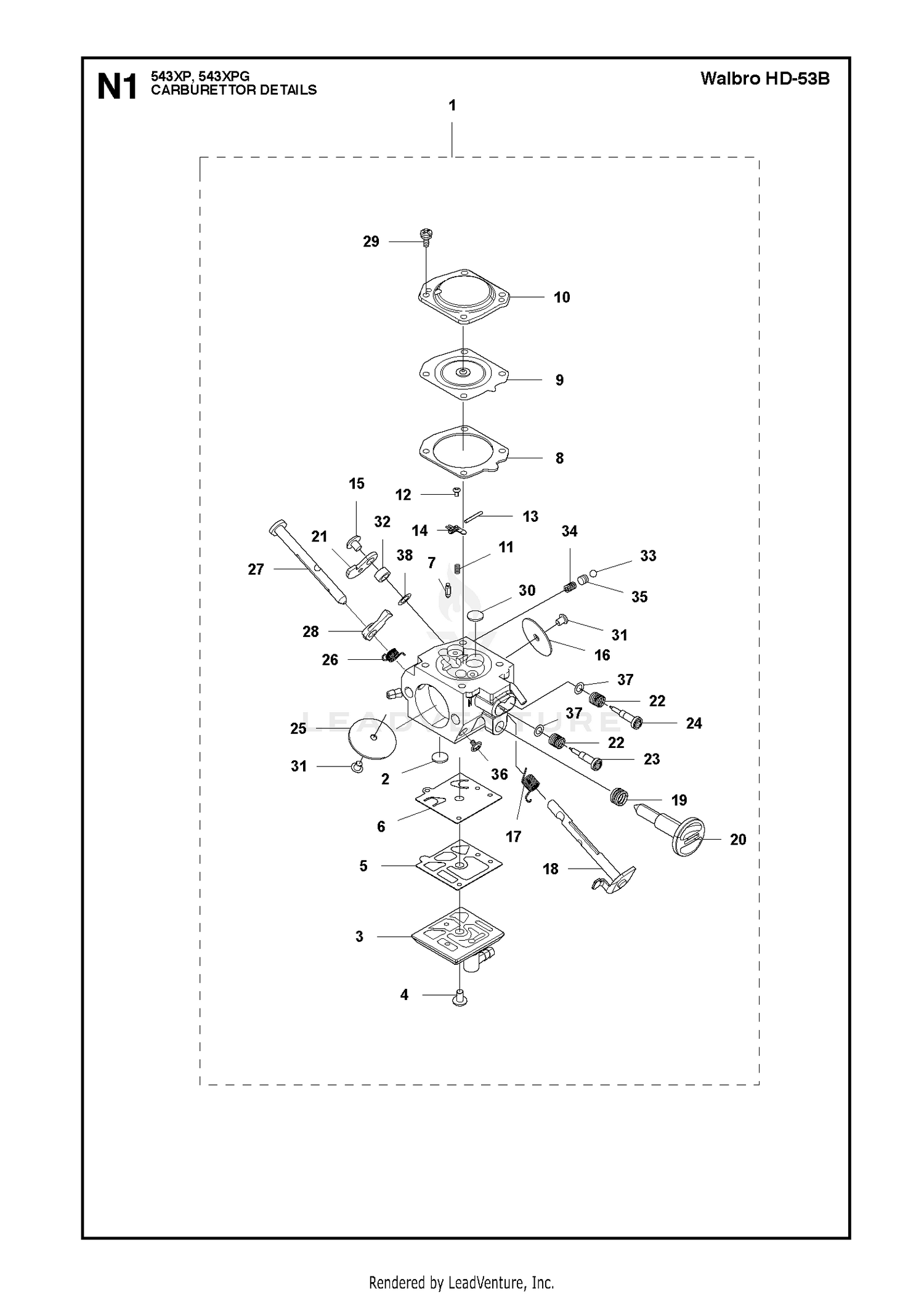

CARBURETOR DETAILS 2
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 4 | 513301301 | SCREW Z149181130 Price: $3.99 |
| 5 | 514242701 | GASKET Price: $3.99 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 8 | 514242801 | GASKET Price: $4.99 |
| 9 | 579492201 | DIAPHRAGM ASSEMBLY METERING 95 Price: $17.99 |
| 10 | 585399901 | COVER Price: $11.99 |
| 11 | 516980001 | SPRING Price: $3.99 |
| 12 | 520977301 | SCREW Price: $4.99 |
| 13 | 520977401 | PIN Price: $4.99 |
| 14 | 514242901 | LEVER Price: $6.99 |
| 15 | 520759801 | SCREW Price: $2.99 |
| 16 | 579492901 | VALVE THROTTLE 34-314 Price: $7.99 |
| 17 | 579493001 | SPRING 98-3706 Price: $19.99 |
| 18 | 585400001 | SHAFT ASSY THROTTLE Price: $19.99 |
| 19 | 521066301 | SPRING Price: $3.99 |
| 20 | 513792801 | SCREW Price: $14.99 |
| 21 | 579492601 | LEVER THROTTLE 18-3551 Price: $24.99 |
| 22 | 514188201 | SPRING Price: $3.99 |
| 23 | 579493501 | NEEDLE HIGH SPEED Price: $14.99 |
| 24 | 579492401 | NEEDLE IDLE Price: $19.99 |
| 25 | 579493101 | VALVE CHOKE 34-3504 Price: $12.99 |
| 26 | 581298001 | SPRING 98-3718 Price: $6.99 |
| 27 | 581298101 | SHAFT ASSY CHOKE 22-4356 Price: $22.99 |
| 28 | 581298201 | LEVER FAST IDEL 18-3566 Price: $19.99 |
| 29 | 520978801 | SCREW ASSY Price: $2.99 |
| 30 | 516342901 | PLUG Price: $6.99 |
| 31 | 579492801 | SCREW 96-3240 Price: $2.99 |
| 32 | 580242401 | SPACER Price: $2.99 |
| 33 | 580242701 | BALL Price: $6.99 |
| 34 | 505057901 | SPRING Price: $2.99 |
| 35 | 580242801 | PISTON ASSY Price: $11.99 |
| 36 | 581298301 | SCREW Price: $2.99 |
| 37 | 521576001 | WASHER Price: $4.99 |
| 38 | 506746101 | WASHER Price: $2.99 |
