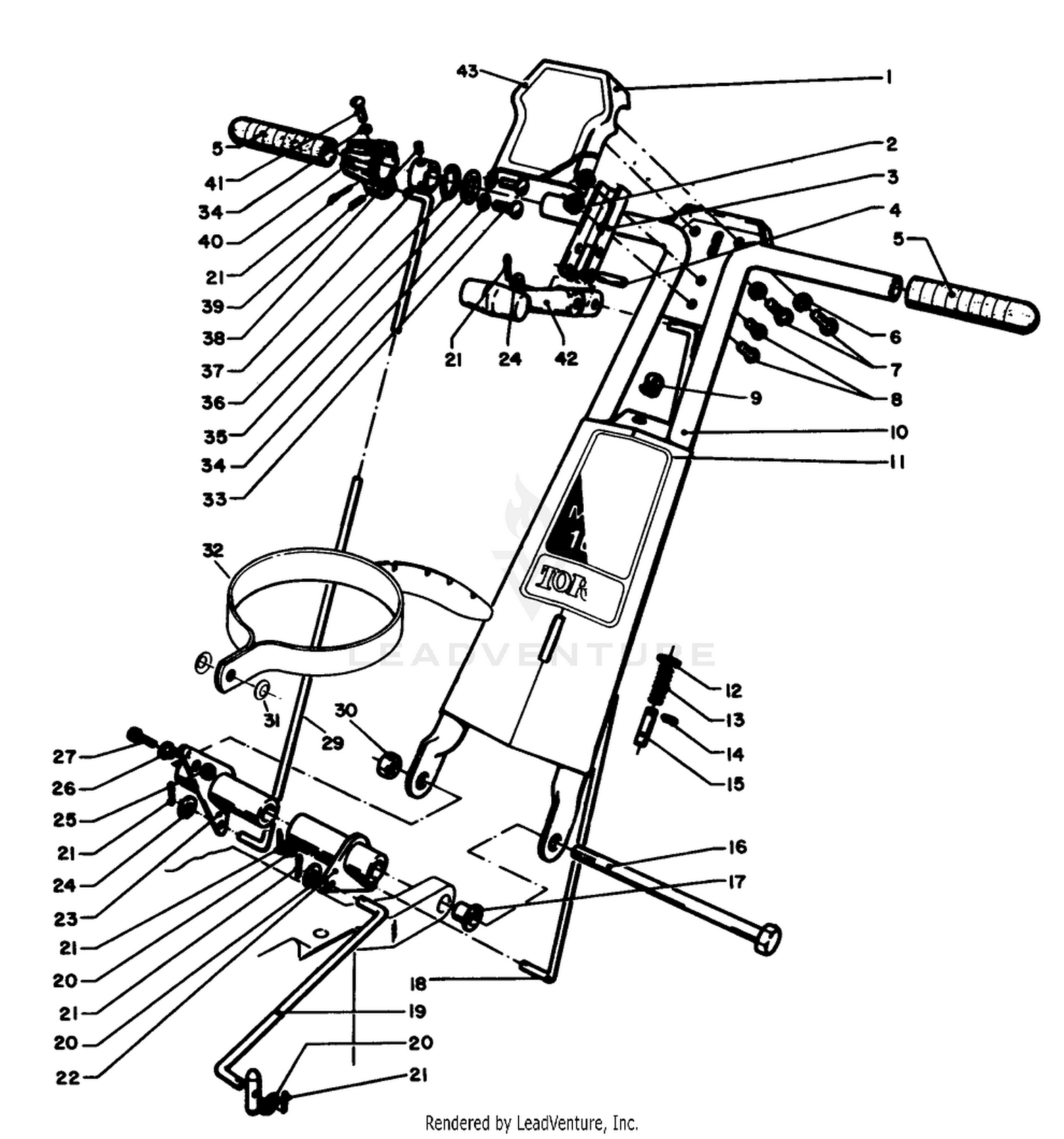

| Ref | Part Number | Description |
|---|
| 1 |
3-0508 |
HANDLE COVER PLT WA Price: $128.40 |
| 2 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 3 |
3-0517 |
CLUTCH HANDLE BRKT *R Price: $18.24 |
| 4 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 5 |
49-8110 |
HANDLE GRIP Price: $13.80 |
| 6 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 7 |
3251-4 |
SCREW-SRH Price: $0.25 |
| 9 |
237-73 |
DISCONTINUED Price: Call Us |
| 10 |
5-9700-01 |
HANDLE WA This part replaces 5-9700. Price: $298.49 |
| 11 |
56-9810 |
DISCONTINUED Price: Call Us |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
5-0776 |
SPRING Price: $7.98 |
| 14 |
32120-35 |
RING-RETAINING, EXT Price: $0.25 |
| 15 |
5-0765 |
PIN Price: $14.02 |
| 16 |
323-30 |
SCREW-HH Price: $22.99 |
| 17 |
3-1776 |
BUSHING Price: $15.88 |
| 18 |
3-3422 |
ROD-CONTROL Price: $65.54 |
| 19 |
88-8820 |
ROD-CLUTCH This part replaces 3-0520. Price: $38.97 |
| 20 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 21 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 22 |
3-0525-01 |
BELL CRANK CLUTCH WA This part replaces 3-0525. Price: $47.73 |
| 23 |
3-0530 |
DISCONTINUED Price: Call Us |
| 24 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 25 |
3296-1 |
NUT-LOCK Price: $0.25 |
| 26 |
3-0526 |
RETAINER Price: $25.44 |
| 27 |
3250-4 |
SCREW Price: $1.78 |
| 29 |
3-3418 |
THROTTLE CONTROL ROD *R Price: $87.56 |
| 30 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 31 |
3290-212 |
WASHER-SPRING Price: $1.56 |
| 32 |
68-9810 |
DISCONTINUED Price: Call Us |
| 33 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 34 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 35 |
3-3423 |
WASHER Price: $5.67 |
| 36 |
32120-74 |
RING-SNAP Price: $0.54 |
| 37 |
3-3421 |
COLLAR Price: $2.00 |
| 38 |
3245-2 |
SCREW-SET, HSH Price: $2.58 |
| 39 |
32121-7 |
PIN-ROLL, SLOTTED Price: $0.31 |
| 40 |
3-3417 |
THROTTLE CONTROL Price: $126.58 |
| 42 |
3-0516 |
DISCONTINUED Price: Call Us |
| 43 |
82-6310 |
DISCONTINUED Price: Call Us |
