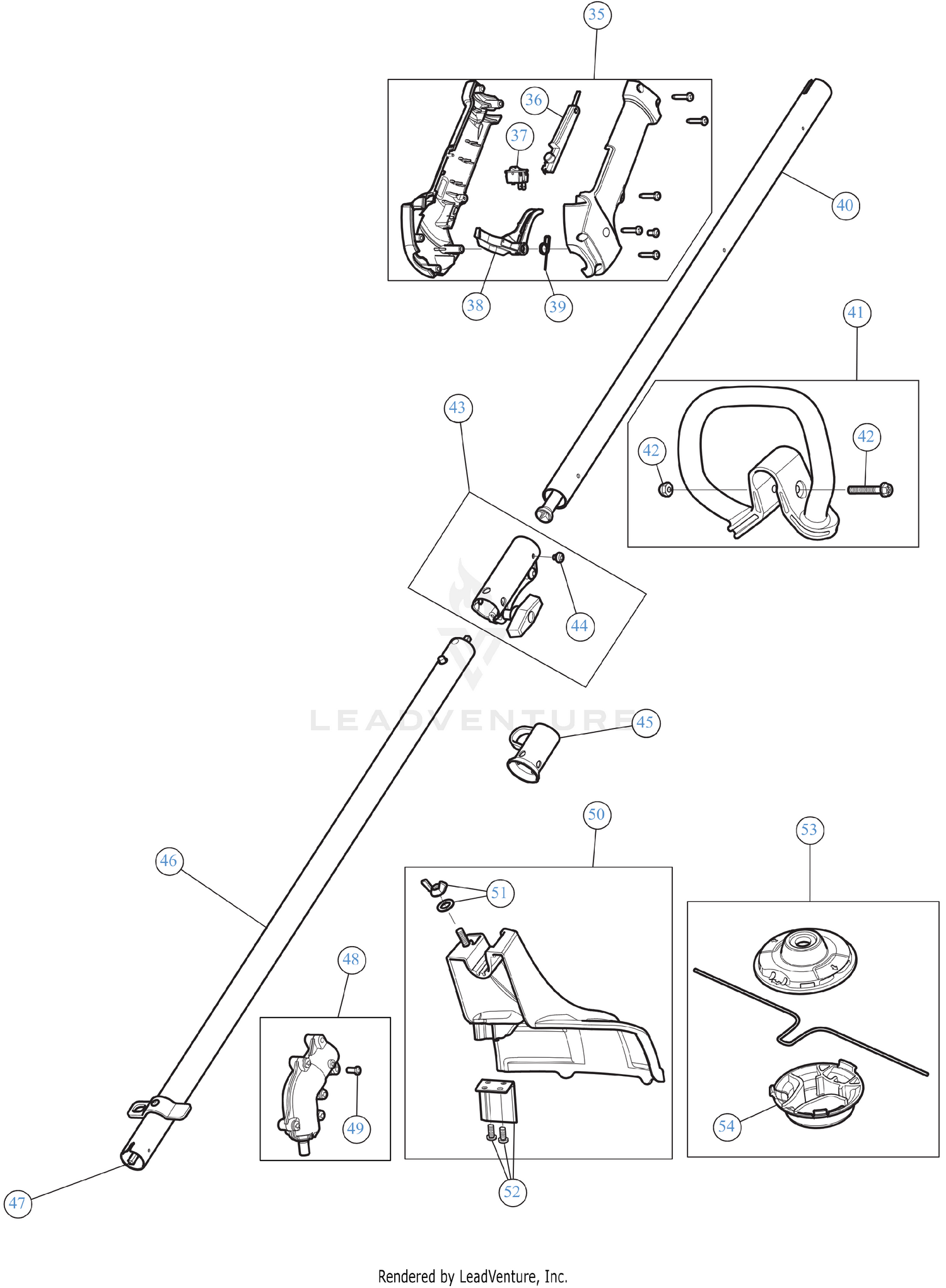

General Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 36 | 731-08433C-10 | LEVER LOCK OUT Price: $2.72 |
| 37 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 38 | 731-04970B-10 | THROTTLE TRIGGER Price: $8.16 |
| 39 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 40 | 753-06880 | BOOM ASSEMBLY UPR Price: $17.42 |
| 42 | 753-06040 | BOLT 1/4-20X1 1/2 Price: $6.01 |
| 44 | 791-182057 | SCREW, 10-32X.250 TA Price: $3.93 |
| 45 | 731-08926 | HANGER Price: $2.32 |
| 46 | 753-08356 | BOOM ASSEMBLY LOWER Price: $21.68 |
| 47 | 753-05267 | LOWER DRIVE SHAFT Price: $37.46 |
| 49 | 7039 | SCREW 8-32X.437 Price: $4.11 |
| 51 | 753-04282 | BLADE GUARD MOUNTING HARDWARE Price: $23.73 |
| 52 | 753-08355 | BLADE ASSEMBLY W/HDW Price: $3.61 |
