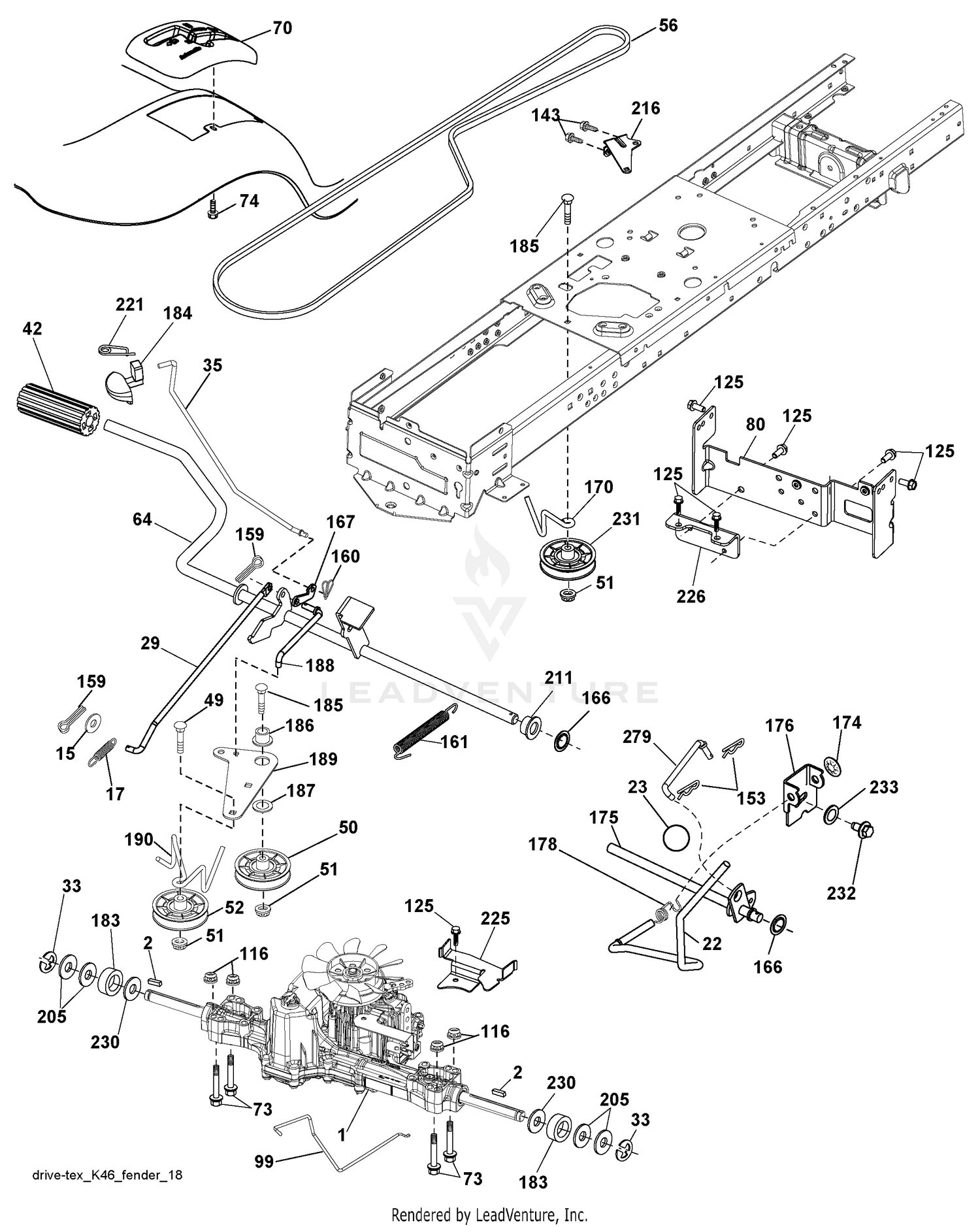

| Ref | Part Number | Description |
|---|
| 1 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
70-2200 |
DECAL Price: $5.09 |
| 3 |
82-9970 |
DISCONTINUED Price: Call Us |
| 4 |
66-6390 |
DECAL-CAUTION Price: $27.63 |
| 5 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 6 |
32128-21 |
NUT-HF Price: $0.39 |
| 7 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
72-3690 |
DISCONTINUED Price: Call Us |
| 10 |
3217-6 |
NUT-HEX Price: $1.19 |
| 12 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 13 |
32103-2 |
NUT-WING Price: $0.68 |
| 14 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 15 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
28-1280 |
DISCONTINUED Price: Call Us |
| 20 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 21 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 22 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 22 |
532197660 |
ROD.SHIFT.FENDER.TLT.2006 Price: $119.99 |
| 23 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 24 |
2412-39 |
CLAMP-R Price: $1.70 |
| 25 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 26 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 27 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 28 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 29 |
92-7802 |
DECAL-INSTR., START This part replaces 27-7280. Price: $22.12 |
| 30 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 31 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 33 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 34 |
2412-74 |
R-CLAMP Price: $2.37 |
| 35 |
32128-20 |
NUT-HF Price: $0.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 36 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 37 |
32128-13 |
NUT-HF Price: $1.79 |
| 38 |
53-4420 |
DECAL-GAS Price: $10.56 |
| 39 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 40 |
93-3183 |
TOOL BOX ASM This part replaces 38-4530. Price: $240.67 |
| 41 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 42 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 43 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 44 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 45 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 46 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 47 |
88-0070-01 |
PLATE-FLOOR This part replaces 77-3210. Price: $169.68 |
| 48 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
75-0810 |
CAUTION DECAL Price: $15.36 |
| 50 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 70 |
532439971 |
CONSOLE.SHIFT.STL.HYD.TEX.GREY This part replaces 532411474. Price: $14.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532408539 |
SHAFT.ASM.SHFT.T2.TLT Price: $22.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $4.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 232 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 233 |
596135201 |
Washers This part replaces 532405296. Price: $2.99 |
