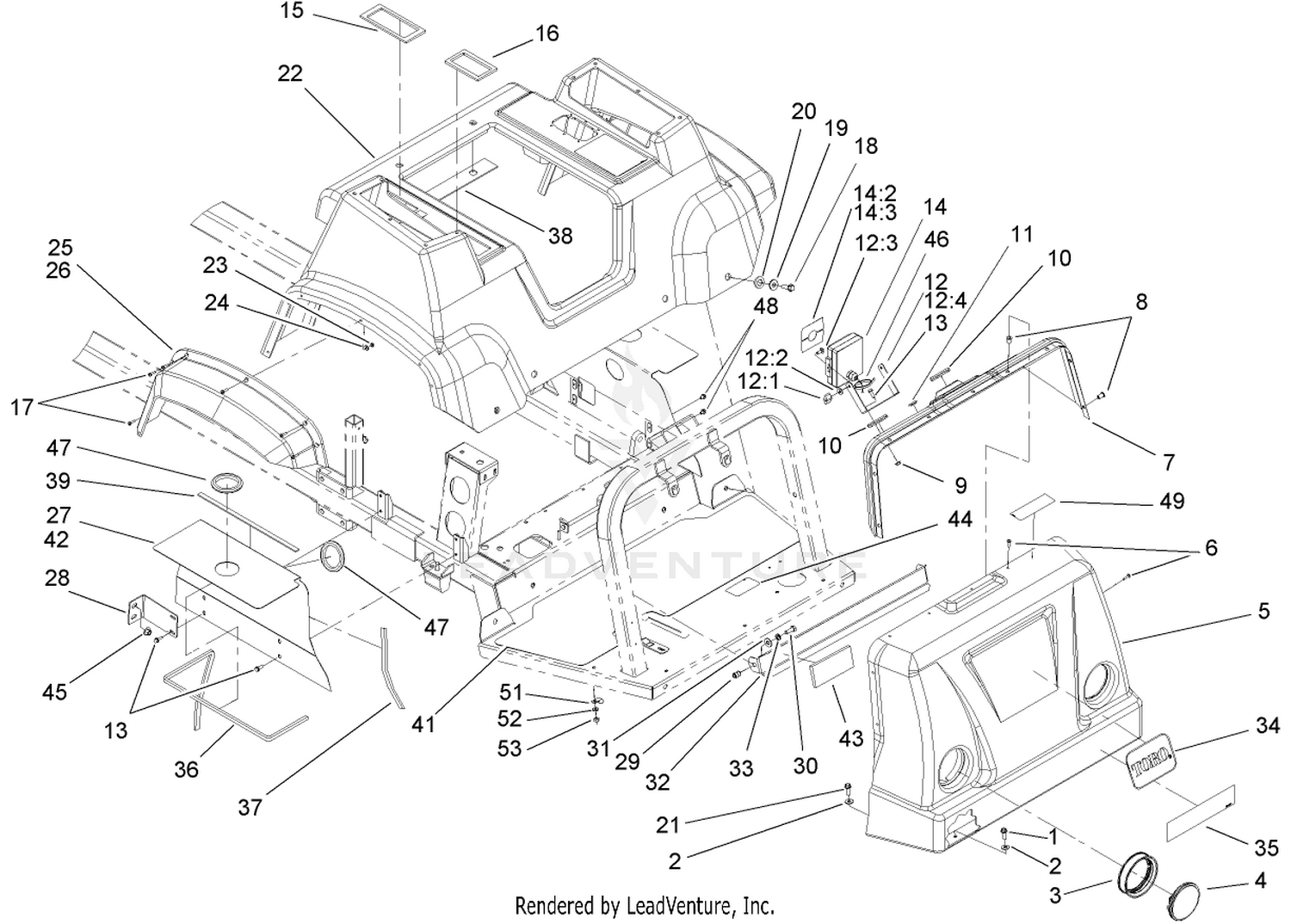

| Ref | Part Number | Description |
|---|
| 1 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 2 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 3 |
99-7311 |
MOUNT-HEADLIGHT Price: $18.97 |
| 4 |
99-7310 |
HEADLIGHT Price: $50.71 |
| 5 |
100-8281 |
HOOD-FRONT, CONSOLE Price: $1,082.22 |
| 6 |
3250-25 |
SCREW-PPH Price: $0.23 |
| 7 |
100-6777 |
DASH PANEL ASM Price: $207.47 |
| 8 |
100-8450 |
NUT-WELL Price: $5.16 |
| 9 |
32128-33 |
NUT-HF Price: $0.25 |
| 10 |
40764 |
GROMMET Price: $14.37 |
| 11 |
94-7290 |
PLUG-HOLE Price: $0.88 |
| 12 |
100-6735 |
MONITOR MOUNTING BRACKET KIT Price: $83.83 |
| 13 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 14 |
121-5022 |
SPRAY MONITOR ASM This part replaces 108-3312. Price: $2,658.36 |
| 15 |
100-8436 |
SEAL-FOAM Price: $4.73 |
| 16 |
100-8437 |
SEAL-FOAM Price: $3.47 |
| 17 |
3250-13 |
SCREW-PPH Price: $0.95 |
| 18 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 19 |
107-8634 |
SEATBASE-SPACER Price: $83.19 |
| 20 |
100-8468 |
WASHER-RUBBER Price: $0.88 |
| 21 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 22 |
100-6776 |
SEAT BASE ASM Price: $2,125.23 |
| 23 |
3217-26 |
NUT-HEX Price: $0.25 |
| 24 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 25 |
94-7074 |
FLARE-FENDER, RH Price: $111.01 |
| 26 |
94-7075 |
FLARE-FENDER, LH Price: $124.14 |
| 27 |
100-8443-03 |
PANEL-SHIELD, RH Price: $85.71 |
| 28 |
100-8623 |
BRACKET-ENGINE COVER SUPPORT, REAR Price: $51.26 |
| 29 |
92-3788 |
INSERT Price: $7.31 |
| 30 |
323-6 |
SCREW-HH Price: $0.66 |
| 31 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 32 |
100-6731-03 |
SHIELD-HEADLIGHT Price: $47.07 |
| 33 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 34 |
62-5550 |
DECAL Price: $9.32 |
| 35 |
121-5006 |
DECAL-1250 This part replaces 106-5128. Price: $22.97 |
| 36 |
100-8423 |
TRIM-SHIELD, TOP Price: $37.70 |
| 37 |
100-8444 |
TRIM-SHIELD, FRONT AND REAR Price: $20.45 |
| 38 |
100-8463 |
SEAL-FOAM Price: $11.75 |
| 39 |
100-8499 |
SEAL-FOAM Price: $15.83 |
| 41 |
100-8622 |
TREAD-FLOOR Price: $59.56 |
| 42 |
100-8448-03 |
PANEL-SHIELD, LH Price: $77.92 |
| 43 |
106-4872 |
PAD-FOAM, HEADLIGHT Price: $4.84 |
| 44 |
100-8619 |
DECAL-SWITCH, BOOM Price: $10.09 |
| 45 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 46 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 47 |
237-164 |
GROMMET Price: $16.34 |
| 48 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 49 |
106-5016 |
DECAL-CAUTION, ELECTRIC SHOCK Price: $37.97 |
| 51 |
98-2390 |
CLAMP-R Price: $2.49 |
| 52 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
