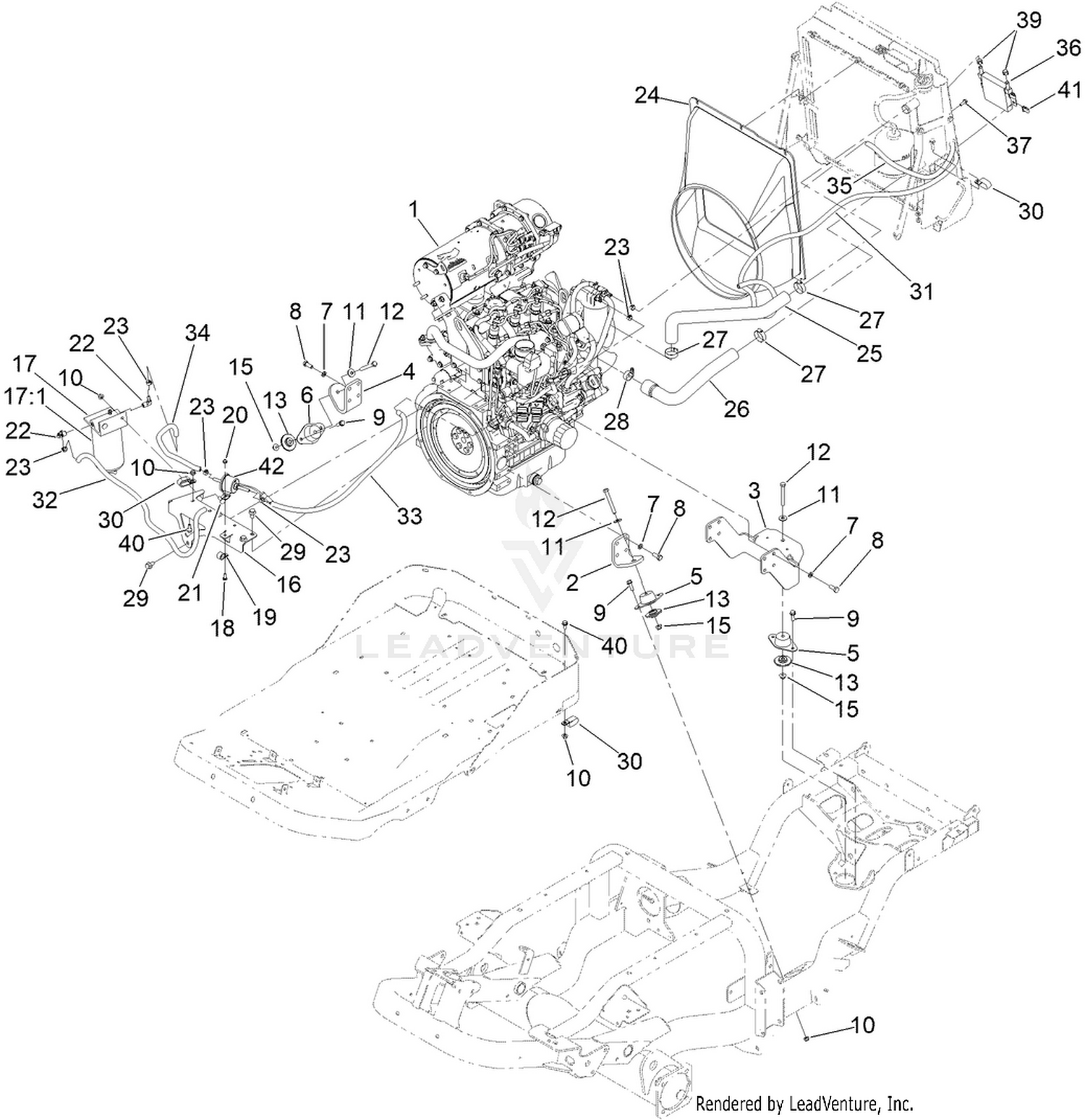

Engine, Radiator Hoses and Shroud Assembly
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-6183 | ENGINE-YANMAR Price: $14,792.08 |
| 2 | 138-0409-0P | MOUNT-ENGINE, LH FRONT Price: Call Us |
| 3 | 138-0410-0P | MOUNT-ENGINE, REAR 37HP [PRIMED Price: $115.41 |
| 4 | 138-0408-0P | MOUNT-ENGINE, RH FRONT Price: $32.69 |
| 5 | 120-6274 | MOUNT-ENGINE Price: $30.17 |
| 6 | 139-0856 | MOUNT-ENGINE Price: $28.21 |
| 7 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 8 | 33115-025 | SCREW-HH Price: $0.61 |
| 9 | 3234-29 | SCREW-HHF Price: $1.84 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 12 | 323-14 | SCREW-HH Price: $1.34 |
| 13 | 138-6462 | SUPPORT-ISOLATOR Price: $4.17 |
| 15 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 16 | 138-4532-0P | BRACKET-FILTER MOUNT [PRIMED] Price: $62.64 |
| 17 | 125-2914 | SEPARATOR FILTER ASM Price: $95.80 |
| 18 | 1-807512 | BOLT-CARR Price: $1.29 |
| 19 | 2412-87 | CLAMP-CABLE Price: $2.89 |
| 20 | 104-7201 | NUT-HF Price: $0.69 |
| 21 | 3230-10 | BOLT-CARR Price: $0.50 |
| 22 | 353-781 | FITTING-HYD, 90 Price: $24.44 |
| 23 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 24 | 138-0419 | SHROUD-FAN Price: $182.02 |
| 25 | 138-0429 | HOSE-RADIATOR, UPPER Price: $30.57 |
| 26 | 138-0430 | HOSE-RADIATOR, LOWER Price: $24.81 |
| 27 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 28 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 29 | 33105-020 | SCREW-HHF Price: $0.54 |
| 30 | 120-1959 | CLAMP Price: $1.97 |
| 31 | 139-6255 | HOSE-FUEL Price: $26.04 |
| 32 | 126-1805 | HOSE Price: $23.93 |
| 33 | 110-3257 | HOSE-FUEL Price: $17.26 |
| 34 | 110-4101 | HOSE-FUEL Price: $16.81 |
| 35 | 139-6276 | HOSE-FUEL Price: $14.44 |
| 36 | 116-7205 | COOLER-OIL Price: $190.99 |
| 37 | 3234-4 | SCREW-HHF Price: $0.50 |
| 39 | 103-1988 | Clamp-Hose Price: $0.69 |
| 40 | 3234-47 | SCREW-HHF Price: $1.79 |
| 41 | 107069 | CLIP Price: $1.79 |
