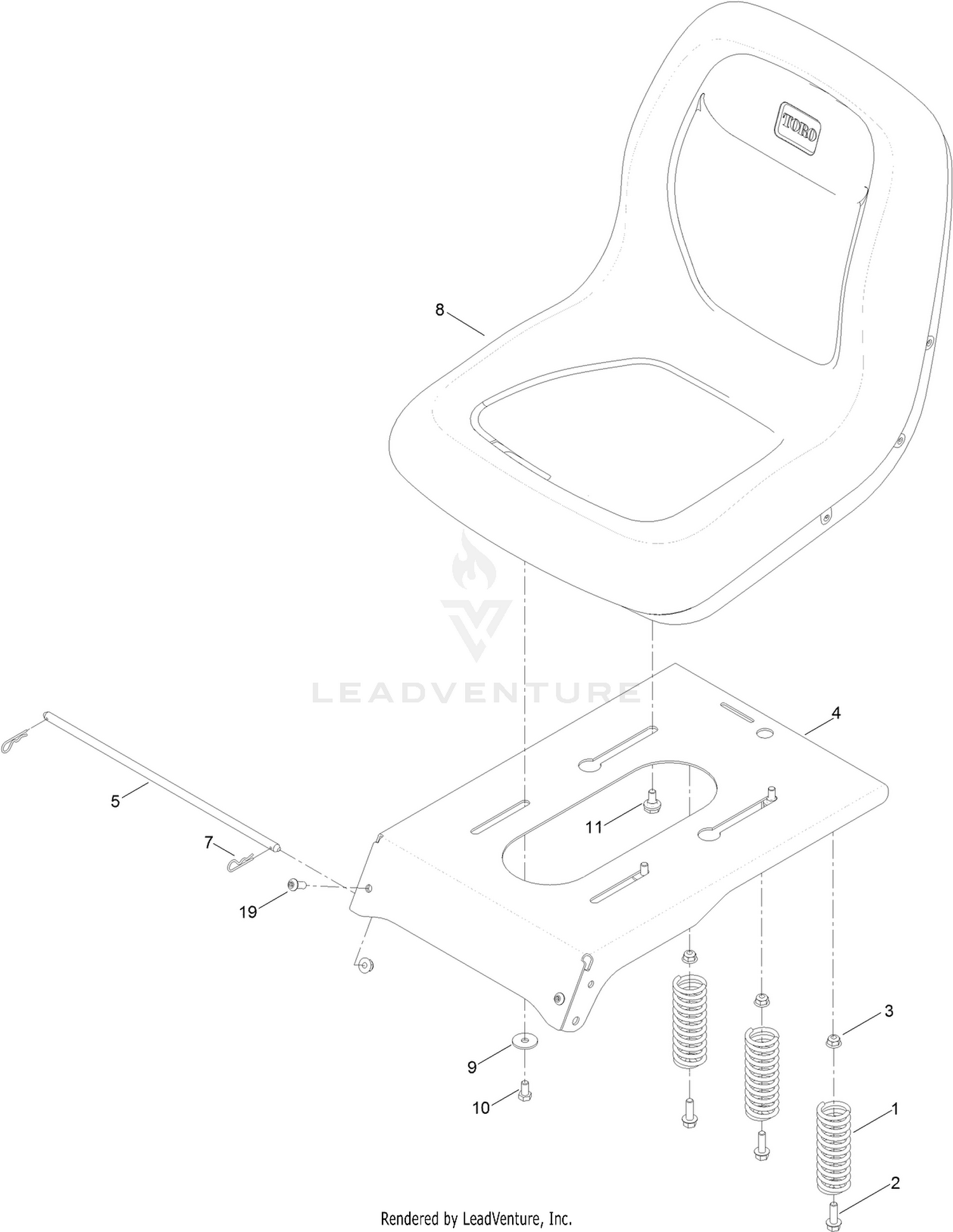

Seat Pan Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92-7054 | SPRING-COMPRESSION Price: $13.32 |
| 2 | 3234-29 | SCREW-HHF Price: $1.84 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 131-4037-01 | PAN-SEAT Price: $51.78 |
| 5 | 119-3433 | ROD-PIVOT, NARROW Price: $8.01 |
| 7 | 3290-250 | PIN-COTTER Price: $5.59 |
| 8 | 119-8829 | SEAT-18 INCH Price: $218.88 |
| 9 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 10 | 322-2 | SCREW-HH Price: $0.69 |
| 11 | 37-8771 | BOLT-SHOULDER,HFH Price: $3.59 |
