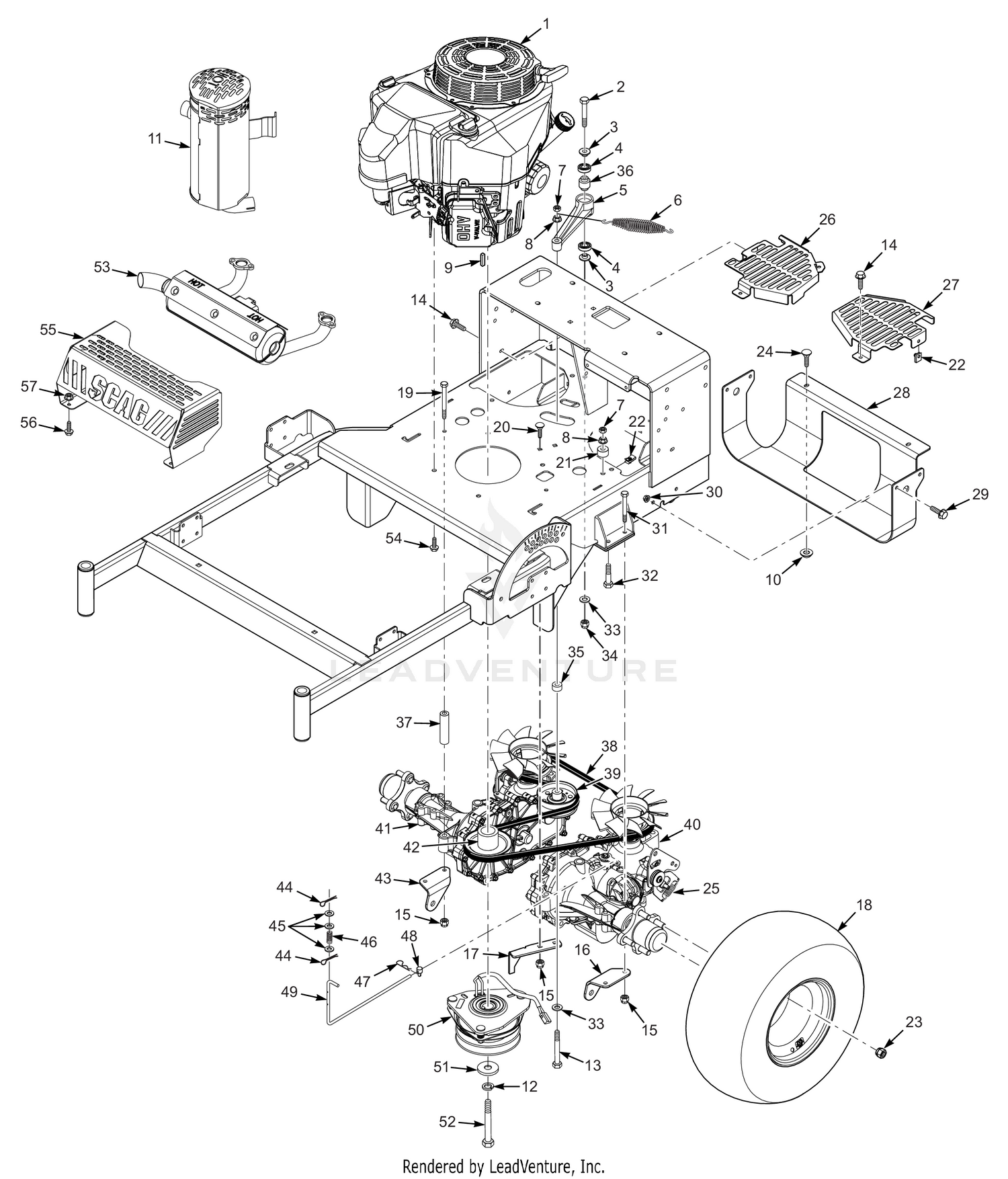

| Ref | Part Number | Description |
|---|
| 2 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 3 |
431049 |
Spacer, Controls Price: Call Us |
| 4 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 6 |
483087 |
Spring, Transmission Idler Price: Call Us |
| 7 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 8 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 9 |
04063-03 |
KEY, 1/4 X 1/4 X 2-1/2" Price: Call Us |
| 10 |
04024-03 |
Nut, Push-On 5/16-18 Price: Call Us |
| 11 |
484620 |
Muffler, Kawasaki (FS481, FS541, FS600) Price: Call Us |
| 12 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 13 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 14 |
04017-05 |
Bolt, Serrated Flange Hex Head 1/4 x 20 x 3/4" Price: Call Us |
| 15 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 16 |
425953 |
Pusharm Mount Bracket, LH Price: Call Us |
| 17 |
425696 |
Bracket, Anti-Rotation Price: Call Us |
| 18 |
484682 |
Wheel Assembly 18 x 6.5-8 (36" Only) Price: Call Us |
| 19 |
04001-196 |
Bolt, Hex Head 5/16-18 x 6-1/2" Price: Call Us |
| 20 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 21 |
43282 |
SPACER, J PULL ROD Price: Call Us |
| 22 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 23 |
04028-02 |
Wheel Nut, 1/2-20 x 13/16 Price: Call Us |
| 24 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 28 |
425778 |
Skid Plate Price: Call Us |
| 29 |
04017-16 |
Capscrew, 5/16-18 x .75 Serrated Flange Hex Head Price: Call Us |
| 30 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 31 |
04001-49 |
Bolt, Hex Head 5/16-18 x 3.00" Price: Call Us |
| 32 |
04001-170 |
Bolt, Hex Head 3/8-16 x 2-1/2" 1.5 Thread Grd.8 Price: Call Us |
| 33 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 34 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 35 |
43720 |
Spacer, Idler Pulley - SFZ61 Price: Call Us |
| 36 |
431073 |
Spacer, Bearing Price: Call Us |
| 37 |
43880 |
Spacer, Axle Price: Call Us |
| 38 |
484578 |
Belt, Transmission Drive Price: Call Us |
| 39 |
486045 |
Pulley, 3-1/2" Dia. Price: Call Us |
| 40 |
486785 |
Transaxle Assy., (ZH-GMCC-SLUB-1MTX) Price: Call Us |
| 41 |
484786 |
Transaxle Assy., (ZH-KMCC-3LUC-1MTX) Price: Call Us |
| 42 |
484595 |
Pulley, 4-1/2" Dia. - 1" Bore Price: Call Us |
| 43 |
425954 |
Pusharm Mount Bracket, RH Price: Call Us |
| 44 |
04061-01 |
COTTER PIN, 3/32 X 1" Price: Call Us |
| 45 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 46 |
482070 |
Spring, Dump Valve Link Price: Call Us |
| 47 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 48 |
43876 |
Joint, Swivel Price: Call Us |
| 49 |
44188 |
Link, Dump Valve Price: Call Us |
| 50 |
462610 |
Electric Clutch Assembly Price: Call Us |
| 51 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 52 |
04102-06 |
Bolt, Hex Head 7/16-20 x 3" w/t Patch Price: Call Us |
| 481867 |
Wheel |
Assembly (#12 tire mounted to #13 rim) Price: Call Us 481867 |
| 484683 |
RIM |
WLMT, PAINTED - 18 X 4.56 Price: Call Us 484683 |
| 485571 |
Muffler, |
Kawasaki (FS651) - SWZT61 Price: Call Us 485571 |
| 485572 |
Manifold, |
Kawasaki (FS651) - SWZT61 Price: Call Us 485572 |
