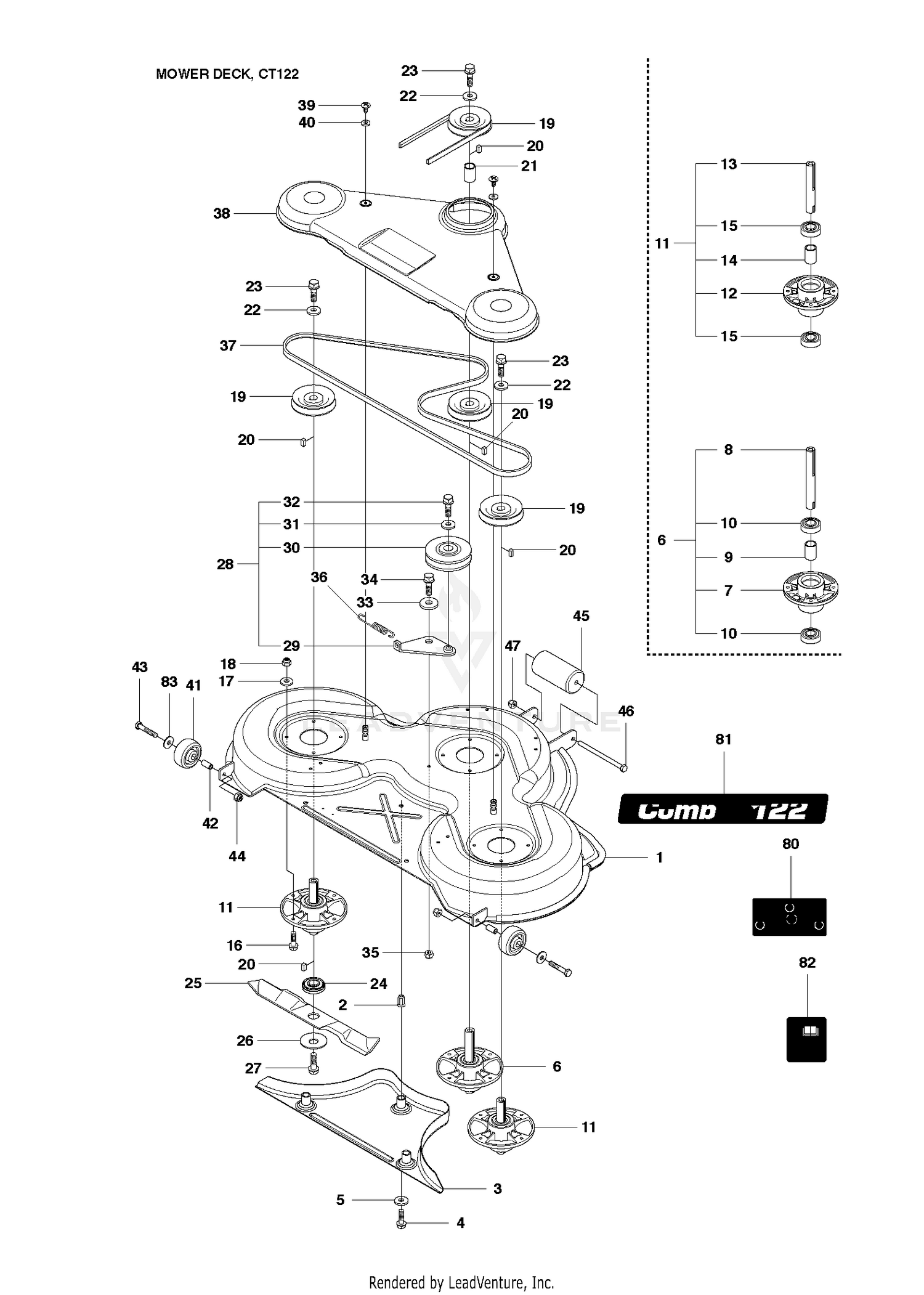

48"/122CM CUTTING DECK 2
Parts (81)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 522505601 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 325-33 | SCREW-HH Price: $11.49 |
| 3 | 535428302 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 117-3190 | COVER-LOWER Price: $15.03 |
| 4 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 5 | 3231-22 | SCREW-CARR Price: $0.72 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 535428601 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 66-2920 | WASHER-FRICTION Price: $2.58 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 535428901 | BEARING HOUSING Price: $119.99 |
| 8 | 117-3385-0P | BRACKET-TANK, HYDRAULIC This part replaces 117-3385-03. Price: $89.12 |
| 8 | 535428701 | NEEDS DESCRIPTION Price: Call Us |
| 9 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 9 | 535428801 | SPACER Price: $7.99 |
| 10 | 3234-24 | SCREW-HHF Price: $3.19 |
| 10 | 738220519 | BALL BEARING Price: $6.99 |
| 11 | 106-9206 | DECAL-TORQUE, WHEEL Price: $10.62 |
| 11 | 535428602 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 117-3311 | SEAL-BULB Price: $28.33 |
| 12 | 535428901 | BEARING HOUSING Price: $119.99 |
| 13 | 3234-4 | SCREW-HHF Price: $0.50 |
| 13 | 535428702 | AXLE Price: $49.99 |
| 14 | 104-7201 | NUT-HF Price: $0.69 |
| 14 | 535428801 | SPACER Price: $7.99 |
| 15 | 325-22 | SCREW-HH Price: $4.26 |
| 15 | 738220519 | BALL BEARING Price: $6.99 |
| 16 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 17 | 240-4 | GROMMET-RUBBER Price: $9.91 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 117-3176 | SCREW-HHF Price: $3.73 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 103-2898 | LATCH-RUBBER Price: $32.99 |
| 19 | 535429001 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 3234-38 | SCREW-HHF Price: $3.33 |
| 20 | 506533501 | KEY Price: $3.99 |
| 21 | 535428801 | SPACER Price: $7.99 |
| 21 | 99-5107 | NUT-LOCK Price: $1.77 |
| 22 | 535429201 | Price: Call Us |
| 22 | 99-7214 | PAWL-BRAKE Price: $28.35 |
| 23 | 725254251 | Screw Price: $4.99 |
| 24 | 535504201 | Price: Call Us |
| 25 | 323-14 | SCREW-HH Price: $1.34 |
| 25 | 535429410 | BLADE Price: $24.99 |
| 26 | 323-53 | SCREW-HH Price: $1.36 |
| 26 | 506792302 | WASHER Price: $12.99 |
| 27 | 340-70 | NUT-LOCK Price: $2.10 |
| 27 | 725254251 | Screw Price: $4.99 |
| 28 | 107-2269 | SEAL-BULB Price: $28.64 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 29 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 69-8970 | SPACER Price: $9.57 |
| 30 | 506532701 | PULLEY Price: $39.99 |
| 30 | 69-8940 | WASHER Price: $1.76 |
| 31 | 323-7 | SCREW-HH Price: $0.65 |
| 31 | 734116441 | SPACER Price: $3.99 |
| 32 | 131-1931 | REAR AXLE ASM Price: $1,667.10 |
| 32 | 506558302 | BOLT Price: $3.99 |
| 33 | 327-6 | SCREW-HH Price: $12.99 |
| 33 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 34 | 3217-11 | NUT-HEX Price: $0.95 |
| 34 | 725245171 | SCREW Price: $2.08 |
| 35 | 3234-13 | SCREW-HHF Price: $0.77 |
| 35 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 36 | 506533101 | SPRING Price: $9.99 |
| 37 | 589533001 | NEEDS DESCRIPTION Price: Call Us |
| 38 | 535429601 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 506982601 | SCREW Price: $5.99 |
| 41 | 591052601 | NEEDS DESCRIPTION This part replaces 505441601. Price: $24.99 |
| 42 | 505450301 | TUBE Price: $9.99 |
| 43 | 725250271 | SCREW Price: $6.99 |
| 44 | 732212001 | NUT Price: $3.99 |
| 45 | 539002472 | ROLLER This part replaces 544185401. Price: $77.99 |
| 46 | 544221001 | Price: Call Us |
| 47 | 732212201 | Price: $2.67 |
| 80 | 506789701 | Decal Price: $21.55 |
| 81 | 544238113 | NEEDS DESCRIPTION Price: Call Us |
| 82 | 506929001 | DECAL Price: $3.99 |
| 83 | 734117441 | WASHER Price: $3.99 |
