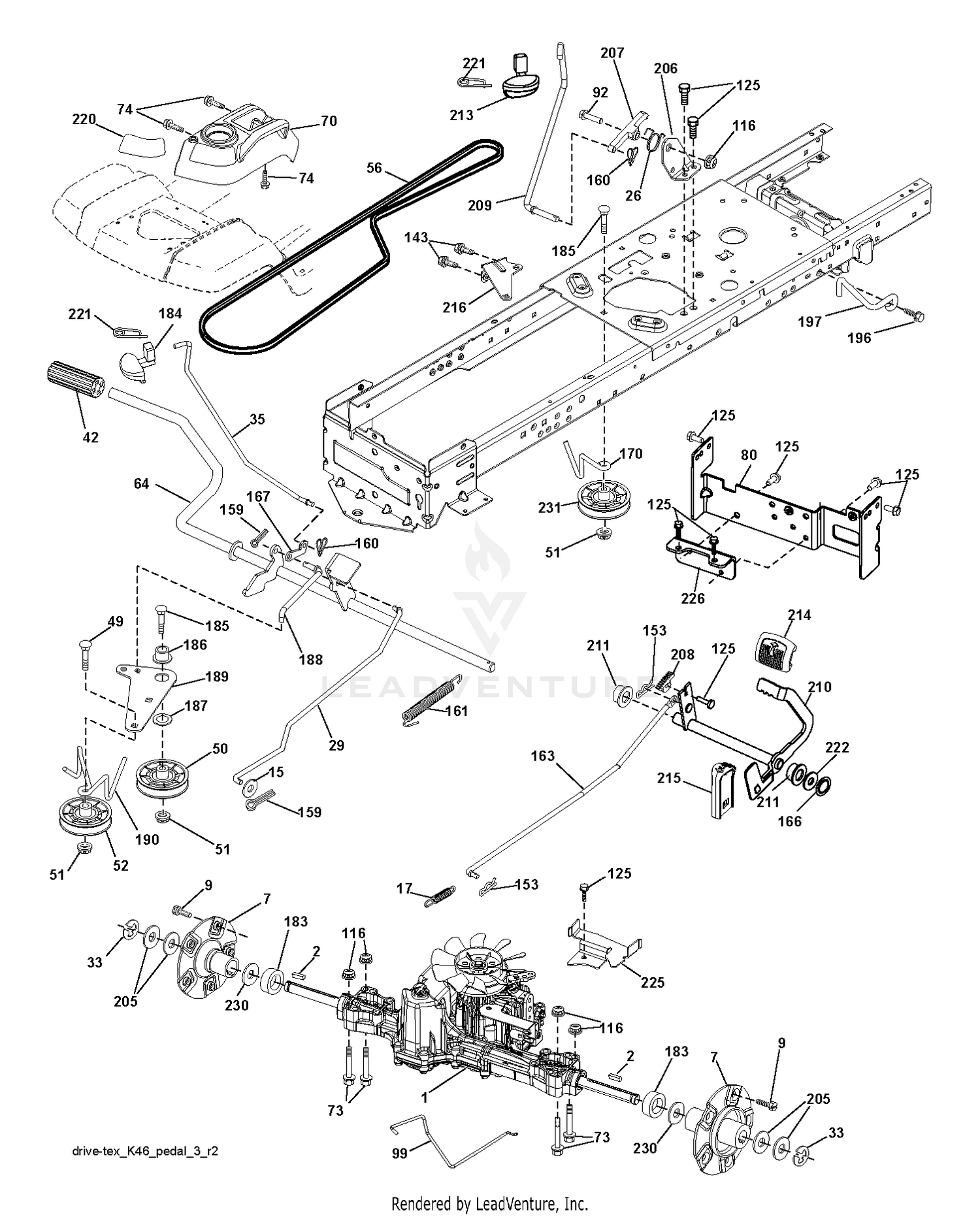

| Ref | Part Number | Description |
|---|
| 1 |
47-3560-01 |
FRONT CROSS CHANNEL ASM Price: $1,253.08 |
| 2 |
47-3570-01 |
REAR CROSS CHANNEL ASM Price: $1,179.36 |
| 2 |
532186211 |
KEY.SQUARE.187X2.500 Price: $3.99 |
| 3 |
3-2196-01 |
SHEAVE Price: $141.72 |
| 4 |
325-14 |
SCREW-HH Price: $2.64 |
| 5 |
32153-5 |
NUT-HEX Price: $1.59 |
| 6 |
32128-23 |
NUT-HF Price: $1.51 |
| 7 |
3290-216 |
WASHER Price: $3.83 |
| 7 |
531170101 |
SERVICE.KIT HUB ASM HUB.ASM.WH This part replaces 532199844. Price: $49.99 |
| 8 |
47-3990 |
DECAL Price: $19.68 |
| 9 |
49-8170 |
SPACER Price: $27.34 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
47-3760 |
HYD HOSE ASM Price: $146.45 |
| 11 |
353-537 |
FITTING-ELBOW, 90 DEG Price: $12.91 |
| 12 |
38-5540 |
FITTING-HYD Price: $80.14 |
| 13 |
322-13 |
SCREW-HH Price: $2.73 |
| 14 |
353-426 |
FITTING-90 DEG Price: $29.88 |
| 15 |
119-2859 |
FITTING-UNION Price: $31.23 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
119-2858 |
VALVE-CHECK Price: $103.69 |
| 17 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
47-3470-03 |
SUPPORT-VALVE Price: $79.97 |
| 19 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 20 |
2412-133 |
CLAMP-R Price: $3.19 |
| 21 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 22 |
322-3 |
SCREW-HH Price: $0.79 |
| 23 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 24 |
3290-274 |
RIVET-POP Price: $0.25 |
| 25 |
47-3900 |
PLATE-INFORMATION Price: $68.97 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 26 |
63-8510 |
CONTROL VALVE ASM This part replaces 63-8510-03. Price: $3,602.51 |
| 27 |
52-5670 |
DISCONTINUED X-REF Price: Call Us |
| 28 |
63-8760 |
LINK PIN KIT Price: $62.78 |
| 29 |
353-988 |
PLUG-HEX Price: $10.61 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
