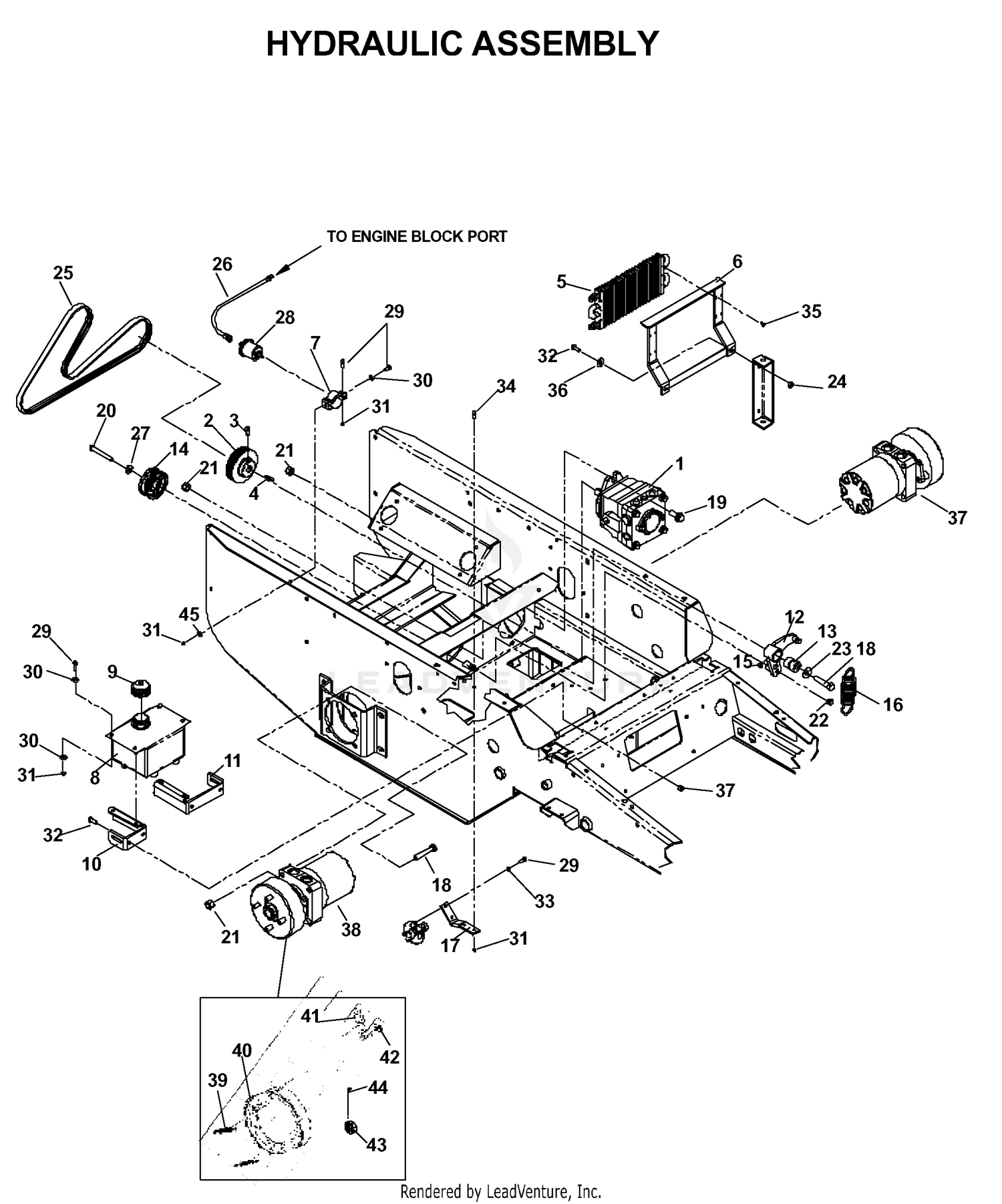

| Ref | Part Number | Description |
|---|
| 1 |
539106333 |
HG_PUMP CCW RH Price: $1,499.99 |
| 2 |
539106334 |
PUMP SHEAVE Price: $99.99 |
| 3 |
539102716 |
SCREW 5/16C X 1 SQ HEAD SET Price: $2.99 |
| 4 |
539109178 |
KEY, METRIC Price: $7.99 |
| 5 |
539106356 |
COOLER Price: $109.99 |
| 6 |
539107810 |
COOLER WLDMT MT Price: $37.99 |
| 7 |
539107844 |
CLAMP-OIL SENDER Price: $1.98 |
| 8 |
539105891 |
TANK, OIL = PAINTED Price: $169.99 |
| 9 |
539101202 |
HYDRAULIC CAP Price: $19.99 |
| 10 |
131-6557 |
ALTERNATOR ASM Price: $443.05 |
| 10 |
539105026 |
TANK MOUNT RT Price: $20.99 |
| 11 |
539105027 |
TANK MOUNT LT Price: $20.99 |
| 12 |
539106425 |
ARM WELDMENT Price: $159.99 |
| 13 |
539106417 |
BUSHING Price: $69.99 |
| 14 |
539919078 |
IDLER PULLEY Price: $27.99 |
| 15 |
539912758 |
ZERK Price: $3.99 |
| 16 |
539102666 |
SPRING Price: $27.99 |
| 17 |
539106290 |
FILTER MOUNT - PAINTED Price: $7.99 |
| 18 |
539108346 |
HEX SCREW 1/2-13 X 2.5" GR 5 Price: $4.99 |
| 19 |
539990622 |
HCS 1/2C X 1 1/4 SERRATED HEAD Price: $3.99 |
| 20 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 22 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 24 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 25 |
539106341 |
PUMP BELT Price: $27.99 |
| 26 |
539108053 |
HOSE Price: $12.99 |
| 27 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 28 |
539106382 |
SENDER,OIL PRESS Price: $109.99 |
| 29 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 30 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 32 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 33 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 34 |
539990548 |
HCS 1/4 X 1 Price: $2.99 |
| 35 |
539106289 |
HSMS #10 X 5/8 Price: $0.65 |
| 36 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 37 |
539106266 |
WHEEL MTR ASM Price: $1,199.99 |
| 38 |
539106267 |
WHEEL MTR ASM, RT Price: $1,199.99 |
| 39 |
539108523 |
RETURN SPRING Price: $4.99 |
| 40 |
539108524 |
SHOE ASSY Price: $37.99 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
539108525 |
LEVER Price: $14.99 |
| 42 |
539108526 |
CLIP Price: $3.99 |
| 43 |
539105277 |
CASTLE-NUT Price: $8.99 |
| 44 |
539990297 |
COTTER PIN Price: $2.99 |
| 45 |
539109347 |
WASHER 1/4 EXTLW STAR ZD Price: $0.99 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 127-1612. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
