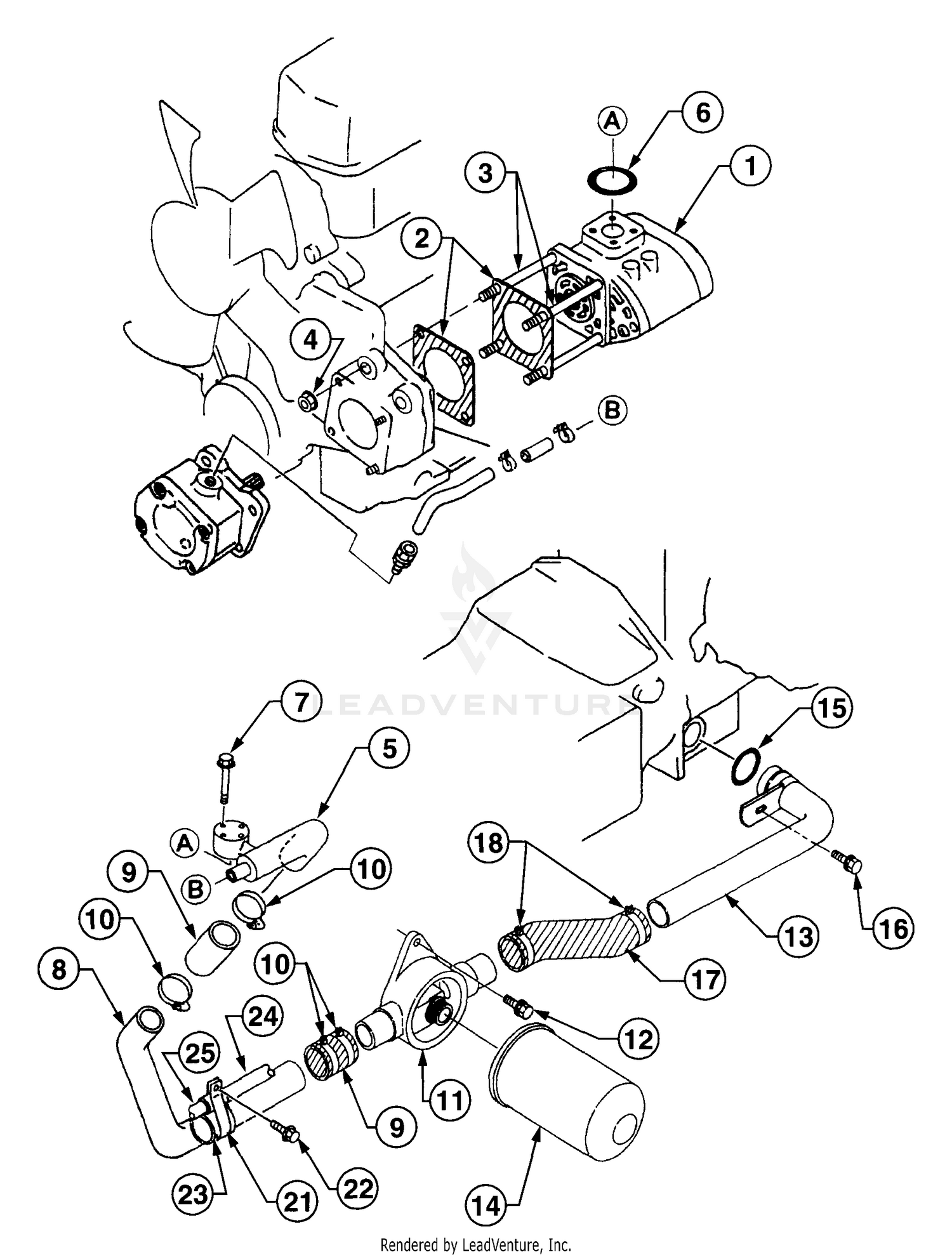

Hydraulic Line & Filter
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 76-5070 | OIL PUMP ASM Price: $729.22 |
| 1 | MA-10292502000 | HYDRAULIC PUMP Not Available Price: |
| 2 | 94-3176 | VALVE-RELIEF Price: $5.60 |
| 2 | MA-67700-20101 | PACKING (GASKET) Not Available Price: |
| 3 | 76-5090 | SPRING-PISTON Price: $4.54 |
| 3 | MA-A0540108150 | BOLT Not Available Price: |
| 4 | 94-3179 | WASHER-SPRING Price: $1.50 |
| 4 | MA-F3010108000 | NUT Not Available Price: |
| 5 | 76-5100 | BOLT-SHOULDER Price: $5.63 |
| 5 | MA-10372518AG0 | PIPE-HYD SUCTION D Not Available Price: |
| 6 | MA-08300500240 | O-RING Not Available Price: |
| 7 | 76-5010 | WASHER-SPRING Price: $0.33 |
| 7 | MA-F1440106045 | BOLT Not Available Price: |
| 8 | 94-3124 | SCREW-HH Price: $1.30 |
| 8 | MA-10372512AG1 | PIPE-HYD S Not Available Price: |
| 9 | 94-3178 | STRAINER Price: $99.33 |
| 9 | MA-10312515000 | HOSE-SUCTION PIPE Not Available Price: |
| 10 | 77-3470 | SCREW Price: $3.37 |
| 10 | MA-HA230101000 | CLIP,HOSE Not Available Price: |
| 11 | 77-3490 | SCREW Price: $4.42 |
| 11 | MA-10312516AG0 | BASE-HYD FILTER Not Available Price: |
| 12 | 94-3177 | PLUG Price: $7.38 |
| 12 | MA-F1550110025 | BOLT,W/SPRING WASH Not Available Price: |
| 13 | MA-10372513AG0 | PIPE-HYD S Not Available Price: |
| 14 | MA-10312518000 | FILTER-TRANSMISSION OIL NLAUD Not Available Price: |
| 15 | MA-08300100380 | O-RING Not Available Price: |
| 16 | MA-H1550110020 | BOLT,W/WASHER Not Available Price: |
| 17 | MA-10372514000 | HOSE-SUCTI Not Available Price: |
| 18 | MA-HA230101000 | CLIP,HOSE Not Available Price: |
| 21 | MA-10312547000 | PIPE CLAMP Not Available Price: |
| 22 | MA-H1540108025 | BOLT,W/WASHER Not Available Price: |
| 23 | MA-10302549000 | CUSHION-SUCTION PI Not Available Price: |
| 24 | MA-11802163000 | CUSHION-SUCTION PI Not Available Price: |
| 502189403 | 502189403 | CLUTCH COVER Price: $79.99 |
| 502215703 | 502215703 | CLUTCH DRUM Price: $34.99 |
| 503200230 | 503200230 | SCREW Price: $3.99 |
| 503210625 | 503214925 | SCREW This part replaces 503210625. Price: $3.99 |
