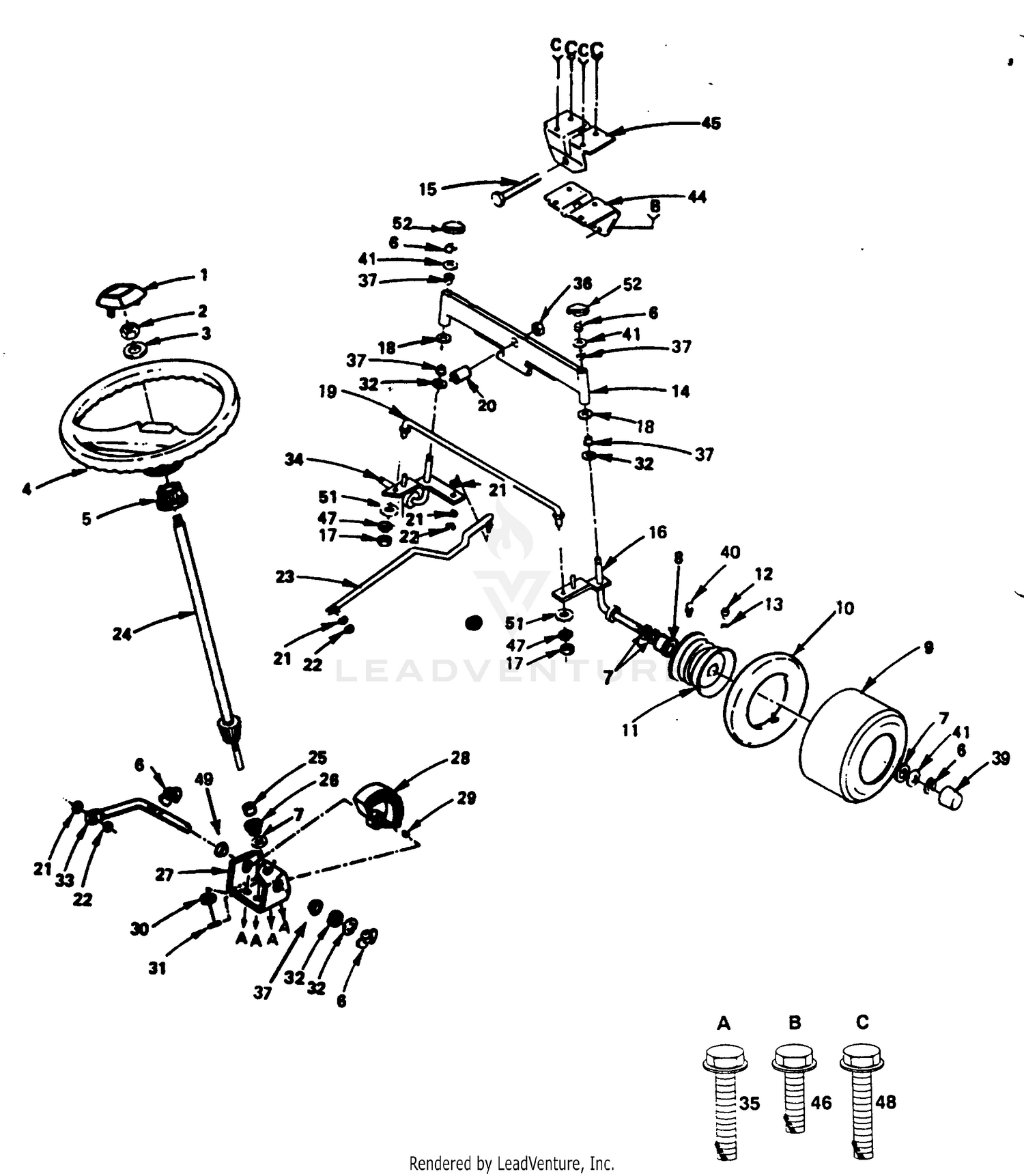

STEERING FRONT AXLES AND WHEELS

STEERING FRONT AXLES AND WHEELS

Parts (68)

RefPart NumberDescription
1 532150546 STEERING WHEEL NLA This part replaces 532126805. Price: $55.99
2 873940800 Nut, Hex, Toplock Jam 1/2-20 Price: $3.99
3 532100712 Washer 17/32 x 2-1/4 x .160 Price: $2.42
3 98-7742 ARMATURE ASM Price: $819.15
4 532150546 STEERING WHEEL NLA This part replaces 532121472. Price: $55.99
5 532437747 STEERING.WHEEL.ADAPTER This part replaces 532100711. Price: $19.99
5 98-7741 YOKE ASM Price: $305.27
6 812000029 Ring, Klip Price: $1.99
7 532121749 Washer 25/32 x 1-1/4 x 16 Gauge Price: $1.99
7 98-7749 BRUSH HOLDER ASM Price: $91.05
8 532009040 Bearing, Flange This part replaces 532124959. Price: $3.99
8 99-8370 FRAME-END Price: $79.75
9 100-9240 BOLT This part replaces 98-9549. Price: $7.23
9 532122073 TIRE.FRONT (15X6-6) TURF SAVER This part replaces 532106222. Price: $45.99
10 532059904 Tube, Tire Price: $22.69
10 98-7758 BOLT ASM Price: $4.90
11 250-4 TIE-CABLE This part replaces 98-9712. Price: $0.61
12 532065139 Stem, Valve Price: $5.99
12 99-8371 NUT-HEX Price: $3.75
13 532059192 Cap, Valve Price: $3.99
13 98-9711 CORD-SOLENOID, STOP Price: $12.05
14 532108075 Axle Assembly, Front Price: $62.55
14 99-8372 MAGNETIC SWITCH ASM Price: $528.24
15 874761060 Bolt, Hex 5/8-11 x 3-3/4 Price: $3.99
15 98-7754 SPRING Price: $4.70
16 532130524 SPINDLE This part replaces 532105654. Price: $29.99
16 98-7755 BALL Price: $0.42
17 873610500 NUT This part replaces 873810500. Price: Call Us
17 99-8373 CLUTCH-RUNNING, OVER Price: $691.80
18 819272016 Washer 27/32 x 1-1/4 x 16 Gauge Price: $2.99
18 98-7756 BOLT Price: $2.64
19 532170162 ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532121334. Price: $59.99
19 99-8374 FRAME-END, DRIVE Price: $73.04
20 532155134 KIT-AXLE This part replaces 532110438. Price: $13.26
20 98-7752 RETAINER Price: $4.35
21 539990118 WASHER.3/8 This part replaces 810040600. Price: $1.49
21 98-7753 ROLLER Price: $1.00
22 873680600 Nut This part replaces 873610600. Price: $1.99
22 98-7751 GEAR Price: $43.51
23 532130468 Link Drag Sol Ball Jt 20 064 This part replaces 532124032. Price: $45.99
23 99-8375 COVER Price: $24.86
24 532156544 This part replaces 532128762. Price: $61.99
24 98-7757 O-RING Price: $24.98
25 532057079 Washer Price: $2.99
25 99-8376 NUT-HEX Price: $7.28
26 532160395 SUPPORT SHAFT This part replaces 532124035. Price: $6.99
27 532124036 Bracket, Steering Price: $4.99
28 532136874 Gear Sector This part replaces 532124034. Price: $45.99
29 532165857 SCREW This part replaces 871070410. Price: $2.99
30 819091016 Washer 9/32 x 5/8 x 16 Ga This part replaces 532126684. Price: $2.99
31 810040400 Washer, Lock 1/4 Price: $3.99
32 532006266 WASHER THRUST This part replaces 532124931. Price: $5.99
33 532156365 PITMAN SHAFT ASSY This part replaces 532124033. Price: $26.99
34 532105656 Spindle Assembly, L.H. Price: $39.99
35 874780612 Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99
36 873681000 Nut, Crownlock This part replaces 873601000. Price: $3.99
37 532003366 BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99
39 532104757 Cap, Axle Price: $1.99
40 532000278 Fitting, Grease This part replaces 532124957. Price: $2.99
41 532121748 Washer 25/32 x 1-5/8 x 16 Gauge Price: $1.99
44 532105664 Support, Saddle, Front Price: $9.99
45 532105663 Support, Saddle, Rear Price: $8.25
46 817490508 Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99
47 810040500 Washer, Lock 5/16 Price: $2.99
48 532122819 Screw, Special Price: $2.38
49 532109816 Nyliner, Snap In Price: $2.99
51 734116301 WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02
52 532121232 Cap, Spindle Price: $1.99
