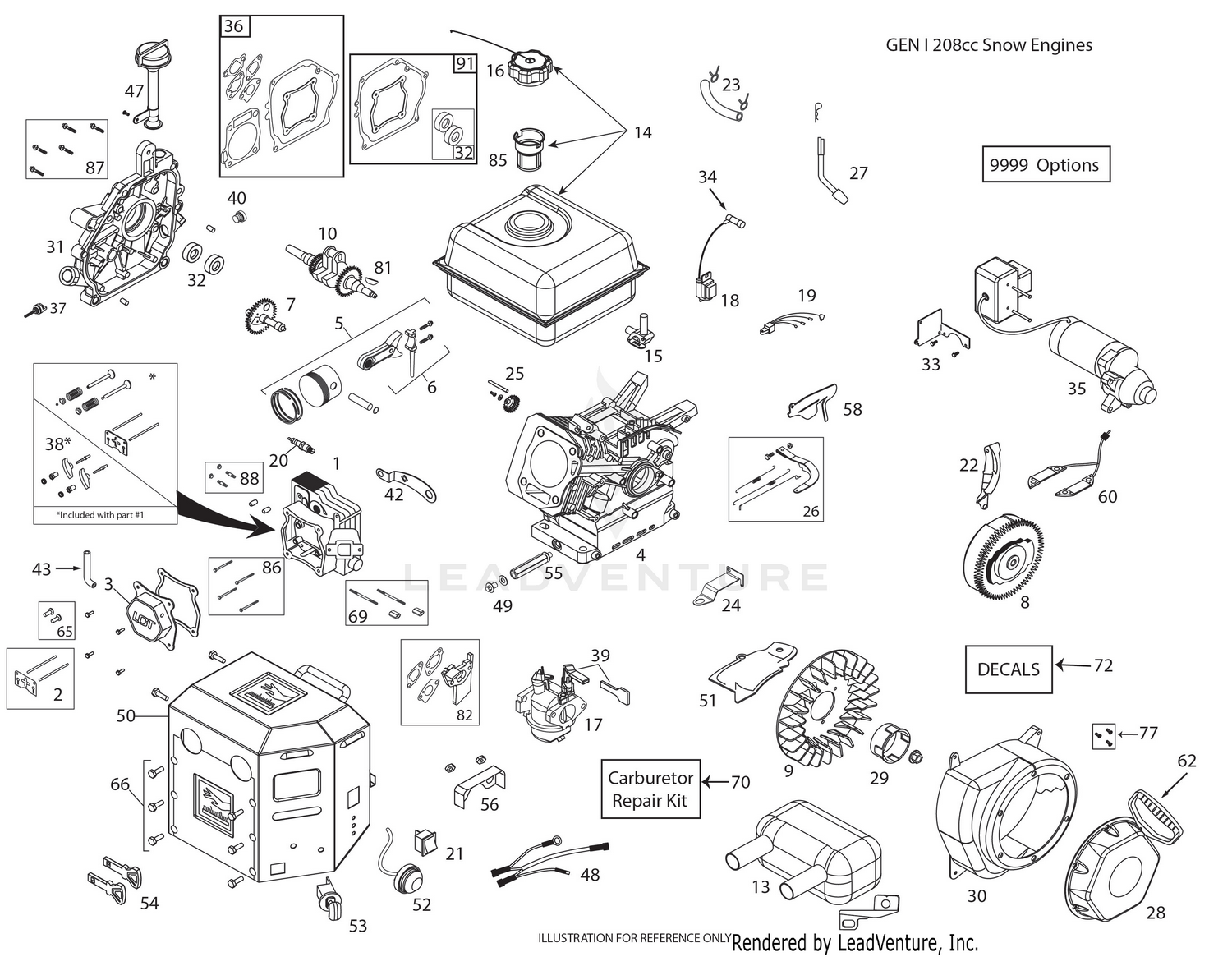

| Ref | Part Number | Description |
|---|
| 1 |
110-4752 |
CASE-GEAR, BEVEL Price: $237.26 |
| 1 |
582045701 |
CYLINDER HEAD.208CC.EPA W/GASK This part replaces 532420578. Price: $159.99 |
| 2 |
110-4754 |
SEAL-OIL Price: $10.36 |
| 2 |
532420579 |
KIT.PUSH.ROD.SRV(SK208-1001) Price: $34.99 |
| 3 |
104-2378 |
BUSHING Price: $40.73 |
| 3 |
587176901 |
VALVE COVER LCT 179/208 This part replaces 532420580. Price: $44.99 |
| 4 |
106-1069 |
O-RING Price: $5.20 |
| 5 |
104-2373 |
KNUCKLE Price: $58.69 |
| 5 |
532420582 |
KIT.PISTON.SRV(SK208-1400) Price: $119.99 |
| 6 |
104-2374 |
BOLT Price: $6.33 |
| 7 |
100-3768 |
LH STEERING ARM ASM Price: $207.28 |
| 7 |
582051401 |
CAMSHAFT.208CC.EPA This part replaces 532420584. Price: $89.99 |
| 8 |
100-3766 |
RH STEERING ARM ASM Price: $207.28 |
| 8 |
595012401 |
FLYWHEEL ELECTRIC START W/6 MA Price: $109.99 |
| 9 |
532420586 |
FLYWHEEL FAN 420586 Price: $9.99 |
| 10 |
584362101 |
CRNKSHFT-KYD#14.208CCSKSNO8001 This part replaces 532446642. Price: $129.99 |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 10 |
95-7548 |
SHIM 0.2 Price: $3.52 |
| 10 |
95-7549 |
SHIM 0.3 Price: $3.82 |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
104-2375 |
BOLT Price: $18.54 |
| 13 |
599716601 |
MUFFLERS Price: $34.99 |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
532436564 |
FUEL.TK.ASSY.GENII.SKSN0311.1 Price: $129.99 |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
532429234 |
FUEL.PETCOCK.SNOW(SKSN4900) Price: $14.99 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
597929901 |
CARBURETORS Price: $74.99 |
| 18 |
106-1141 |
STEERING TIE ROD ASM Price: $642.02 |
| 20 |
532424939 |
SPARK.PLUG(2083810) Price: $14.99 |
| 22 |
585772401 |
SHIELD.FLYWHEEL.ELEC.STRT.208C Price: $3.99 |
| 23 |
532438014 |
KIT.FUEL.HOSE.208CC.SING/STAGE This part replaces 532432144. Price: $8.99 |
| 24 |
532429259 |
SPEED.CTRL.BRKT.(SKSN0150) Price: $11.99 |
| 25 |
532429646 |
GOVENOR.GEARS ASM(SK2082900) Price: $34.99 |
| 26 |
581768701 |
CARBURETTOR GOVERNOR LINK.ASM. Price: $7.99 |
| 27 |
532420602 |
KIT.GOVERNOR.CRANK(SK208-3100) Price: $5.99 |
| 28 |
532436967 |
RECOIL.STRT.ROUND(BLK) SNOW Price: $39.99 |
| 29 |
532436968 |
STRTER.CUP(NON-SLOT)SKSN0601.2 Price: $29.99 |
| 30 |
599716701 |
HOUSINGS Price: $24.99 |
| 31 |
581007301 |
COVER CRANKCASE.LCT.SK2083605 Price: $84.99 |
| 32 |
532429599 |
SEAL KIT (2 PCS) Price: $14.99 |
| 34 |
532436966 |
SPARK.PLUG.BOOT.SNW,SKSN4691.1 Price: $14.99 |
| 35 |
595915501 |
STARTER 230C EL START.LCT SKSN Price: $329.99 |
| 36 |
532429601 |
GASKET.KIT.208CC(SK2084300.1) Price: $49.99 |
| 37 |
532420961 |
DIPSTICK SMALL Price: $9.99 |
| 38 |
532429691 |
ROCKER ARM KIT Price: $59.99 |
| 39 |
532429224 |
CHOKE.KNOW.SNOW(SKSN4500) Price: $7.99 |
| 40 |
532429598 |
NON REMOVABLE PLUG Price: $11.99 |
| 43 |
580353401 |
TUBE.BREATHER.LCT.208 Price: $3.99 |
| 47 |
581007201 |
TUBE ASSY HIGH OIL-FILL Price: $8.99 |
| 48 |
595012501 |
HARNESS WIRE. W/O OFF/ON SWITC Price: $14.99 |
| 49 |
532435495 |
KIT.OIL.DRAIN.PLUG(SK2089911 Price: $7.99 |
| 50 |
595012601 |
BOX HEATER.W/O OFF/ON SWITCH.L Price: $59.99 |
| 51 |
583516301 |
SHIELD.CYLINGER.LCT.SKSN0608.2 This part replaces 532437119. Price: $32.99 |
| 52 |
590920801 |
STARTER SCREW.STARTER SWITCH B Price: $4.99 |
| 53 |
532424954 |
SWITH.KEY.ASSEM.SNOW.SINGLE.ST Price: $24.99 |
| 54 |
532443059 |
KEY SET(2 KEYS) SKSN0407.1 Price: $11.99 |
| 55 |
532432686 |
EXTENDED OIL DRAIN TUBE Price: $24.99 |
| 65 |
581372801 |
TAPPET.KIT.LCT.208CC Price: $19.99 |
| 69 |
532424951 |
CARB.STUDS & COUPLING KIT.SNOW Price: $12.99 |
| 70 |
580353602 |
CARBURETOR.REPAIR KIT.LCT. Price: $44.99 |
| 72 |
532435648 |
HOP SNOW DECAL KIT This part replaces 587152201. Price: $7.99 |
| 77 |
532432688 |
BOLT.KIT.RECOIL.LCT.ALL.ENGINE Price: $3.99 |
| 78 |
581459301 |
BRACKET Price: $6.99 |
| 81 |
585297201 |
KEYS.FLYWHEEL.208/414CC.5PACK Price: $22.99 |
| 82 |
585020503 |
SPACER.CARBURETOR.208CC.LCT Price: $3.99 |
| 85 |
586325601 |
STRAINER.FUEL.TANK.LCT.208CC Price: $4.99 |
| 86 |
586327302 |
BOLT KIT.CYLINDER HEAD.LCT(4)1 Price: $5.99 |
| 87 |
586326901 |
KIT.BOLT.CRANKCASE.COVER.6PC Price: $6.99 |
| 88 |
586326801 |
STUD.MUFFLER.KIT.LCT Price: $8.99 |
| 91 |
587525701 |
COVER CRANKCASE GASKET Price: $17.99 |
| 9999 |
579806401 |
KIT.BOLT.LCT.SK9990.1 Price: $2.99 |
| 9999 |
586326201 |
HIGH.ALTITUDE.JET 6,000FT Price: $11.99 |
