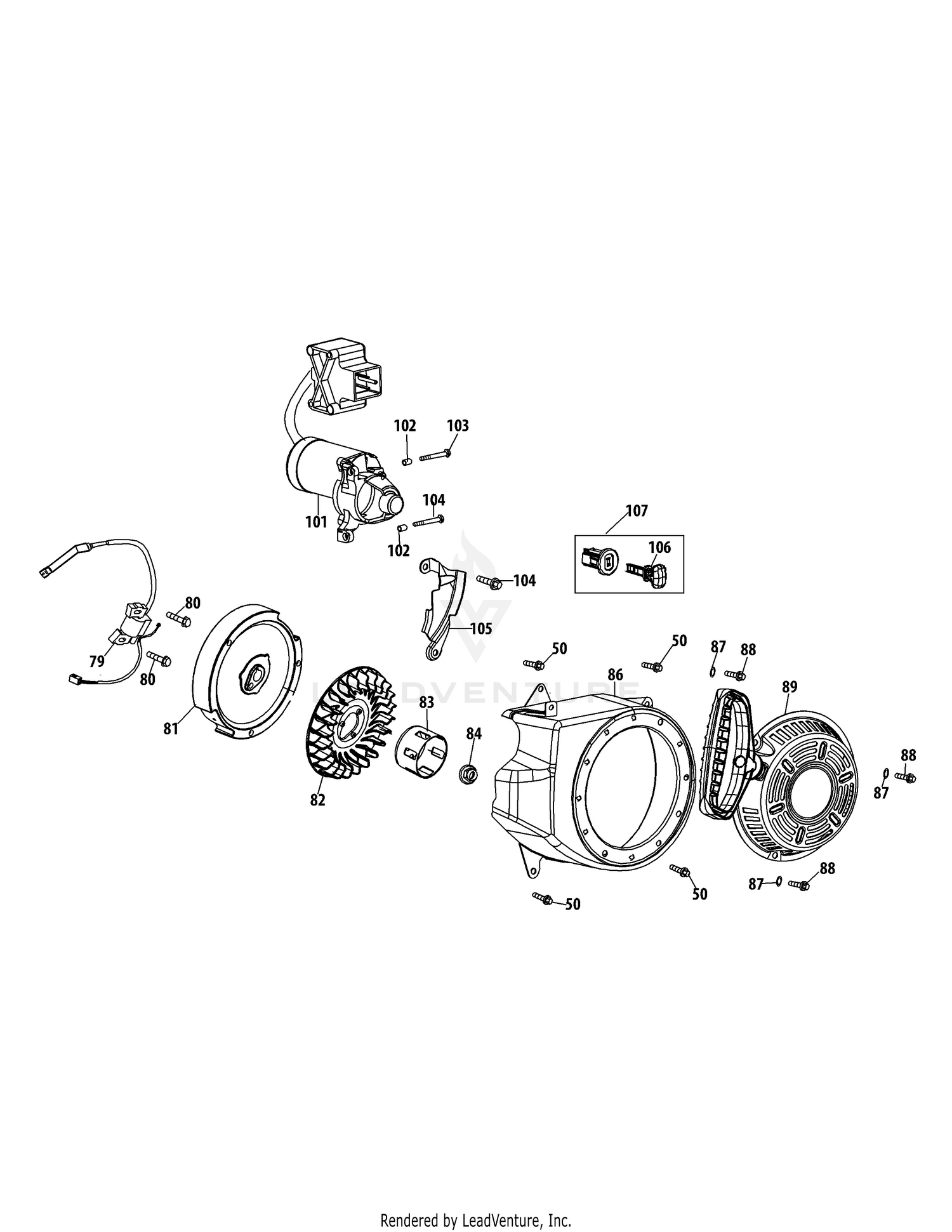

| Ref | Part Number | Description |
|---|
| 50 |
710-04915 |
Bolt M6X12 Zinc Price: $3.82 |
| 79 |
951-12013 |
Ignition Coil Price: $96.74 |
| 80 |
710-04919 |
Flange Bolt M6X25 Price: $3.86 |
| 81 |
751P12416A |
FLYWHEEL This part replaces 951-12416. Price: $52.29 |
| 82 |
951-10909B |
COOLING FAN This part replaces 951-10934. Price: $20.39 |
| 83 |
951-10911 |
Starter Cup Price: $15.19 |
| 84 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04209. Price: $5.33 |
| 86 |
951-12644 |
FAN COVER ASSEMBLY Not Available Price: |
| 87 |
736-04455B |
FLAT WASHER This part replaces 736-04455. Price: $5.94 |
| 88 |
710-04974 |
Flange Bolt Price: $6.07 |
| 89 |
951-14152 |
Recoil Starter Assembly Price: $82.65 |
| 101 |
951-10645A |
Electric Starter Price: $267.09 |
| 102 |
715-04088A |
DOWEL PIN This part replaces 715-04088. Price: $2.97 |
| 103 |
710-05182 |
Starter Bolt Price: $3.61 |
| 104 |
710-04915 |
Bolt M6X12 Zinc Price: $3.82 |
| 105 |
951-11109 |
Blower Housing Shield Price: $6.40 |
| 106 |
951-10630 |
Ignition Key This part replaces 731-05632. Price: $6.07 |
| 107 |
951-10637 |
Switch Assembly Price: $13.28 |
