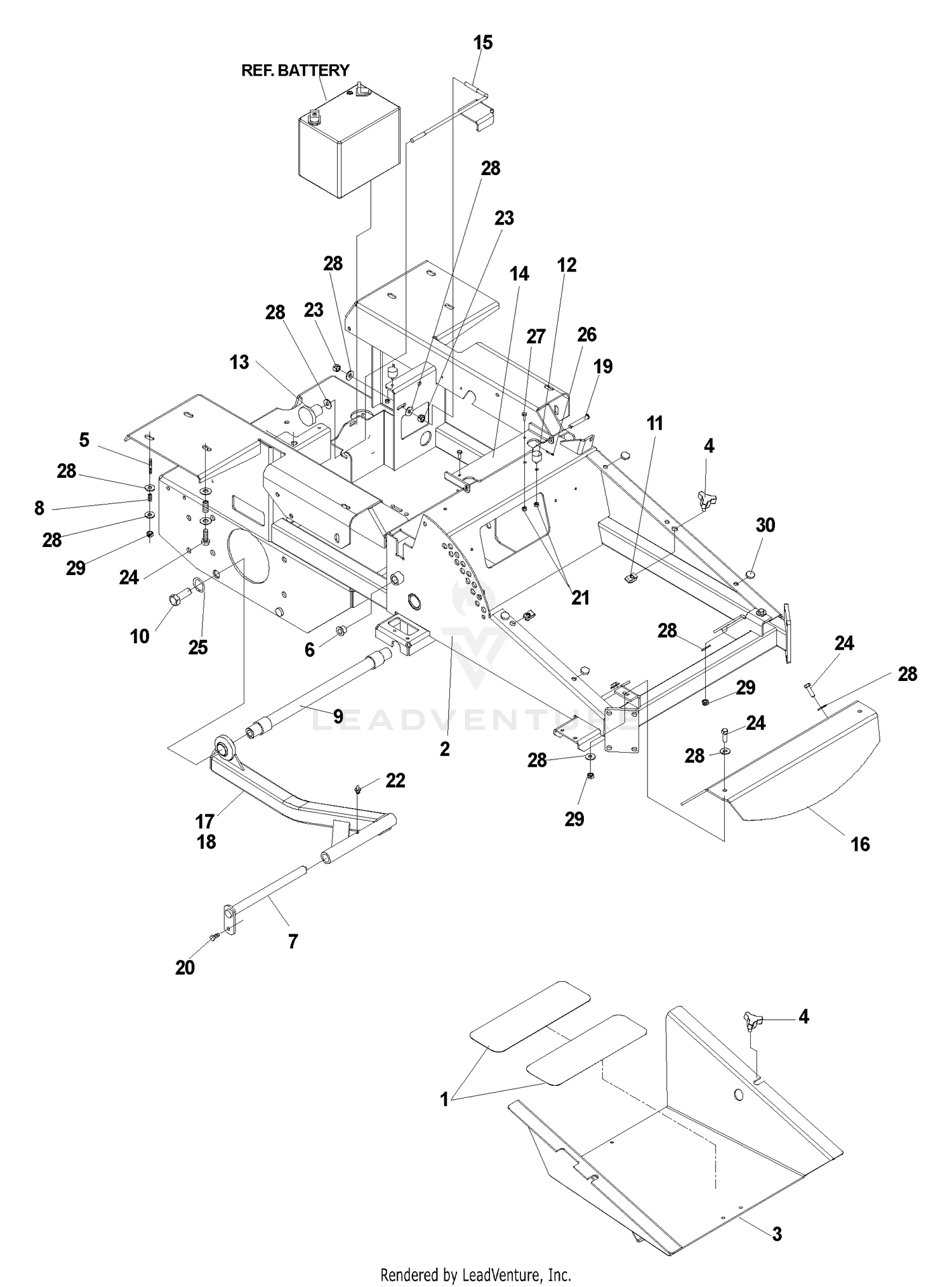

| Ref | Part Number | Description |
|---|
| 1 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 1 |
76-5070 |
OIL PUMP ASM Price: $729.22 |
| 2 |
539111098 |
IZ FRAME W/DECALS Price: $949.99 |
| 2 |
76-5080 |
PISTON Price: $14.39 |
| 3 |
539111573 |
IZ FOOTPLATE W/DECAL Price: $159.99 |
| 3 |
76-5090 |
SPRING-PISTON Price: $4.54 |
| 4 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 4 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 5 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 5 |
76-5100 |
BOLT-SHOULDER Price: $5.63 |
| 6 |
539102519 |
BUSHING Price: $2.99 |
| 7 |
539102619 |
PIVOT PIN Price: $32.99 |
| 7 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 8 |
539102845 |
SPRING Price: $2.99 |
| 8 |
74-7910 |
SCREW - HEX HD Price: $2.92 |
| 9 |
33113-025 |
SCREW-HH This part replaces 48-7640. Price: $1.97 |
| 9 |
539104197 |
STRUT MOUNT WELDMENT Price: $51.99 |
| 10 |
539104199 |
HCS 5/8C X 2 GR.5 Price: $2.99 |
| 10 |
76-5150 |
DISCONTINUED Price: Call Us |
| 11 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 11 |
76-5160 |
DISCONTINUED Price: Call Us |
| 12 |
539105039 |
STUD/PLATE MOUNT Price: $4.99 |
| 13 |
539105169 |
KNOB Price: $7.99 |
| 14 |
539105224 |
SEAT BRKT W/DECAL Price: $24.99 |
| 15 |
539106899 |
BATTERY HOLD DOWN Price: $59.99 |
| 16 |
539106941 |
FOOTREST ORANGE Price: $66.99 |
| 17 |
539110806 |
STRUT, RT Price: $424.99 |
| 18 |
539110807 |
STRUT, LT Price: $417.99 |
| 19 |
539110819 |
CLEVIS PIN 3/8 Price: $2.99 |
| 20 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 21 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 22 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 23 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 24 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 25 |
539990333 |
LOCKWASHER 5/8 Price: $2.99 |
| 26 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 27 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 28 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 29 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 30 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
