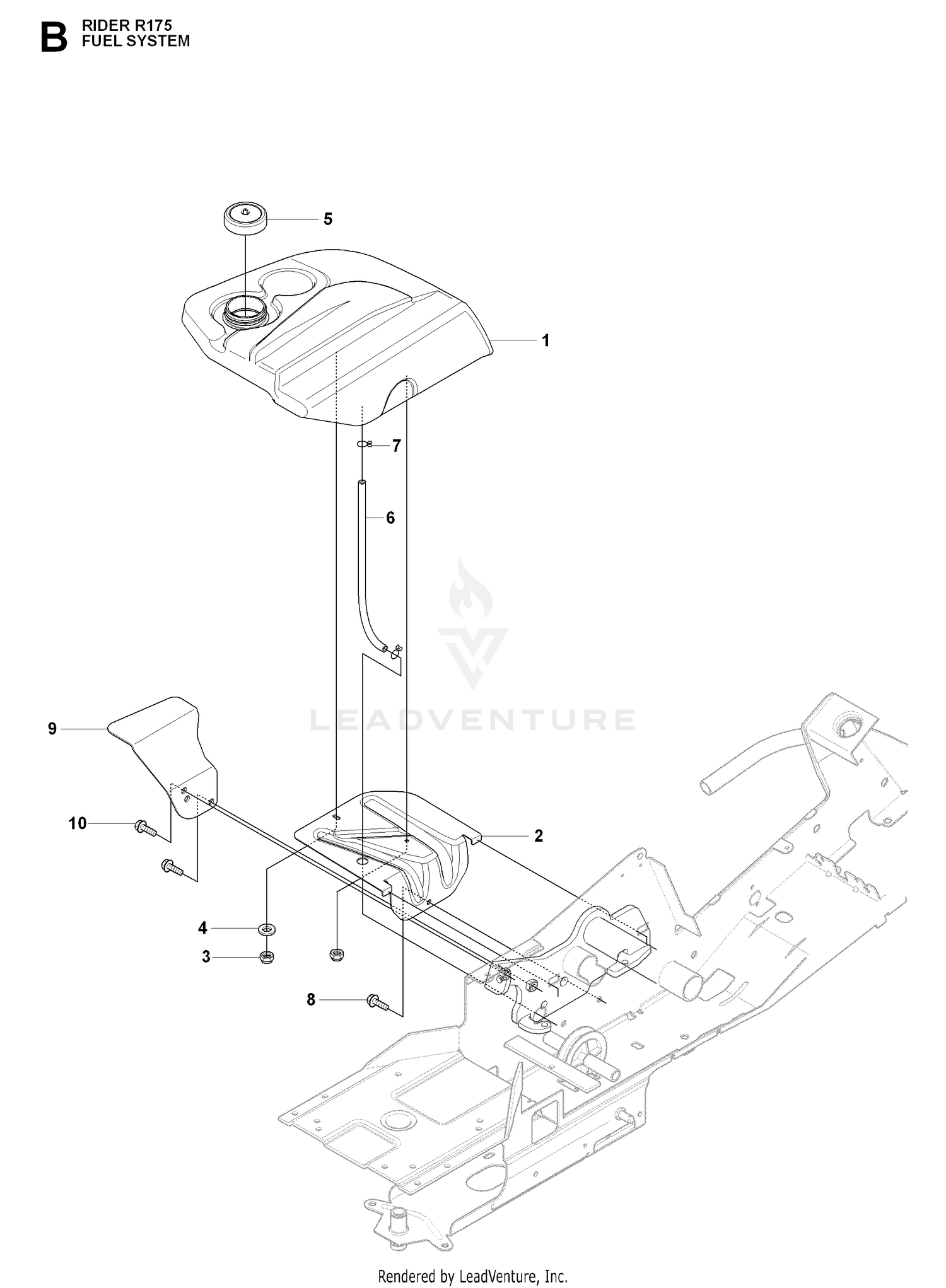

FUEL SYSTEM
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-6995 | PIN Price: $5.45 |
| 1 | 535501301 | FUEL TANK Price: $61.99 |
| 2 | 127-3025 | HOUSING-FLYWHEEL Price: Call Us |
| 2 | 544329301 | BRACKET Price: $44.99 |
| 3 | 125-6910 | CAP Price: $13.61 |
| 3 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 4 | 125-7226 | BOLT Price: $4.09 |
| 5 | 125-7227 | BOLT Price: $4.99 |
| 5 | 506673301 | FUEL CAP Price: $27.99 |
| 6 | 138-7826 | OIL PAN ASM This part replaces 125-7241. Price: $968.12 |
| 6 | 506946707 | Price: $15.94 |
| 7 | 125-6912 | PLUG-DRAIN Price: $24.49 |
| 7 | 535469701 | CLAMP Price: $2.99 |
| 8 | 725236461 | SCREW Price: $2.99 |
| 9 | 125-7177 | WASHER-SEAL Price: $6.86 |
| 9 | 501020301 | SUPPORT Price: $26.92 |
| 10 | 125-7035 | SPACER Price: $102.62 |
| 10 | 725249371 | Screw M10x25 Price: $1.82 |
| 11 | 125-7214 | BOLT Price: $3.77 |
| 12 | 125-7215 | BOLT Price: $3.48 |
| 13 | 125-7219 | BOLT Price: $4.58 |
| 14 | 125-7220 | BOLT Price: $4.99 |
| 15 | 125-6995 | PIN Price: $5.45 |
| 16 | 125-6996 | CASE ASM Price: $256.91 |
| 18 | 125-7106 | SEAL-OIL Price: $23.98 |
| 19 | 125-7045 | BOLT Price: $5.88 |
| 20 | 125-7217 | BOLT Price: $4.58 |
| 21 | 127-3062 | SENSOR-REV, FLYWHEEL Price: $149.87 |
