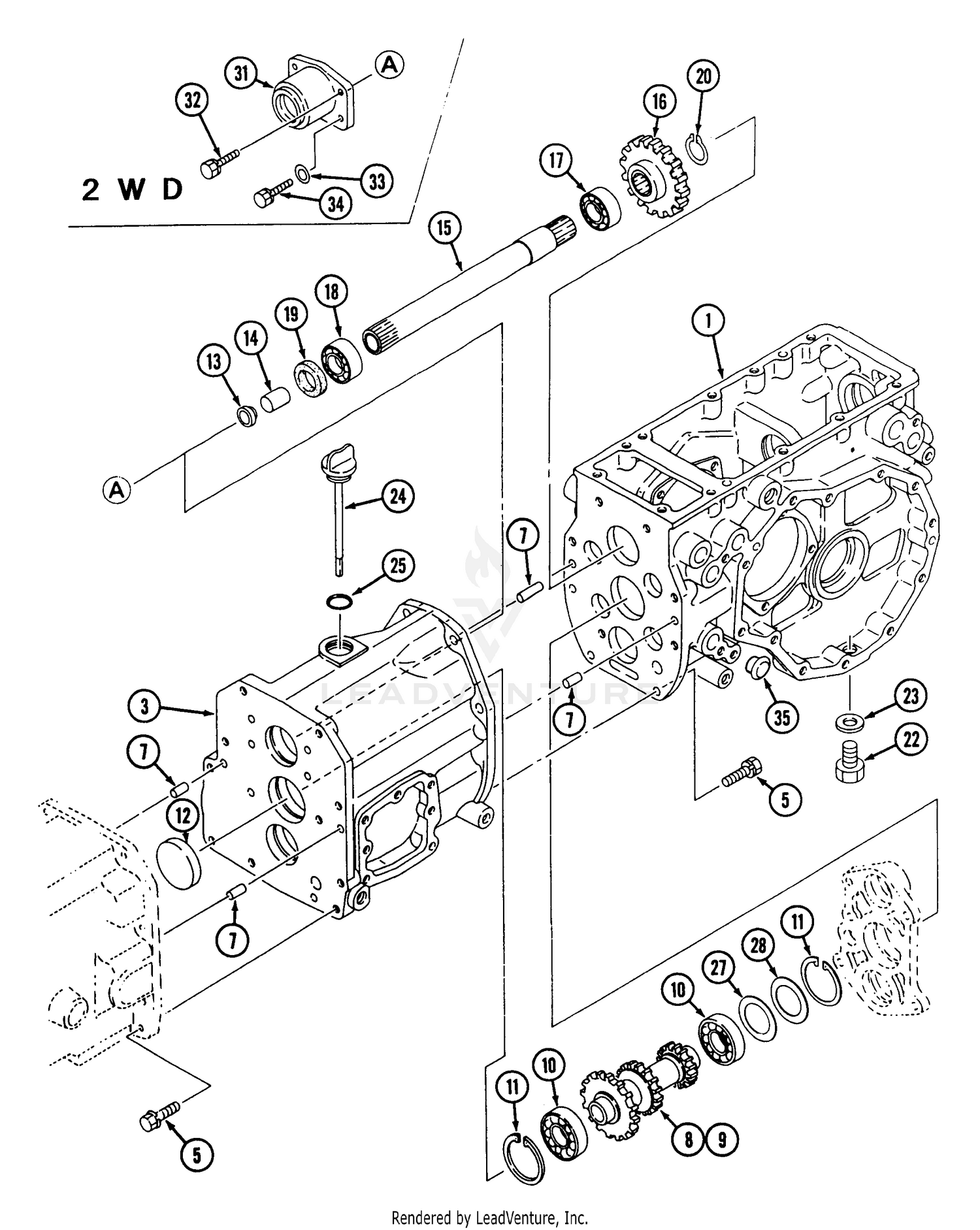

Transmission Live - 2WD (Part 1)
Parts (109)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520976301 | SCREW Price: $2.99 |
| 1 | 70-3880 | PLATE Price: $15.80 |
| 2 | 577815701 | SCREW, IDLE Price: $8.99 |
| 2 | 99-2233 | RACK - CONTROL This part replaces 70-3840. Price: $85.34 |
| 3 | 513593201 | SPRING Price: $4.99 |
| 3 | 70-3860 | WASHER Price: $4.57 |
| 4 | 579190601 | COVER PUMP Price: $19.99 |
| 4 | 70-3960 | DISCONTINUED Price: Call Us |
| 5 | 520954801 | GASKET Price: $9.99 |
| 5 | 70-3930 | GASKET Price: $11.43 |
| 5 | MA-F1550110035 | BOLT,W/SPRING WASH Not Available Price: |
| 6 | 504130807 | PUMP DIAPHRAGM This part replaces 502213601. Price: $27.99 |
| 6 | 70-6850 | BEARING Price: $67.75 |
| 7 | 513400801 | SWIVEL Price: $11.99 |
| 7 | 70-3710 | PLATE Price: $2.92 |
| 7 | MA-05401010020 | PIN Not Available Price: |
| 8 | 516524201 | WASHER Price: $2.99 |
| 8 | 70-3690 | RING Price: $2.29 |
| 8 | MA-19631236000 | GEAR 20-26-35T Not Available Price: |
| 9 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 9 | 70-3900 | PACKING Price: $1.27 |
| 10 | 579190701 | SHAFT ASSEMBLY,THROTTLE Price: $22.99 |
| 10 | 70-3950 | SCREW Price: $4.71 |
| 10 | MA-07500062060 | BEARING NSK6206 Not Available Price: |
| 11 | 577815501 | SPRING Price: $3.99 |
| 11 | 70-3570 | SCREW Price: $0.94 |
| 11 | MA-07410006200 | RING, SNAP Not Available Price: |
| 12 | 520759801 | SCREW Price: $2.99 |
| 12 | 70-3560 | PINION Price: $26.27 |
| 12 | MA-08340062100 | SEAL CAP 14 Not Available Price: |
| 13 | 520978601 | VALVE Price: $2.99 |
| 13 | 70-3580 | SLEEVE Price: $24.16 |
| 13 | MA-19631276000 | SEAL OIL Not Available Price: |
| 14 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 14 | 70-3590 | DISCONTINUED Price: Call Us |
| 14 | MA-07963020200 | BUSHING Not Available Price: |
| 15 | 505057901 | SPRING Price: $2.99 |
| 15 | 70-3600 | SPRING Price: $12.73 |
| 15 | MA-19631269000 | SHAFT DRIVE Not Available Price: |
| 16 | 521578301 | PISTON This part replaces 584901201. Price: $6.99 |
| 16 | 70-3610 | SEAT Price: $13.09 |
| 16 | MA-19631271000 | GEAR 24T Not Available Price: |
| 17 | 520759801 | SCREW Price: $2.99 |
| 17 | 70-3970 | PLATE Price: $3.66 |
| 17 | MA-07500062070 | BEARING NSK 6207 Not Available Price: |
| 18 | 579190801 | LEVER THROTTLE Price: $19.99 |
| 18 | 70-3640 | PIN Price: $5.43 |
| 18 | MA-07500560074 | BEARING NSK630 6007D Not Available Price: |
| 19 | 505056501 | E-RING Price: $3.99 |
| 19 | 70-3620 | BODY Price: $91.31 |
| 19 | MA-08401035508 | SEAL, OIL Not Available Price: |
| 20 | 579191001 | SHAFT ASSEMBLY,CHOKE Price: $22.99 |
| 20 | 70-3650 | BUSHING Price: $13.26 |
| 20 | MA-07400103500 | SNAP RING Not Available This part replaces MA-07400003500. Price: |
| 21 | 516524201 | WASHER Price: $2.99 |
| 21 | 70-3660 | ROLLER Price: $13.46 |
| 22 | 584901301 | LEVER Price: $19.99 |
| 22 | 70-3670 | PLUG Price: $9.07 |
| 22 | MA-F5000-16000 | PLUG Not Available Price: |
| 23 | 579191101 | SPRING Price: $5.99 |
| 23 | 70-6800 | E-RING Price: $2.69 |
| 23 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 24 | 520759801 | SCREW Price: $2.99 |
| 24 | 70-6930 | SCREW Price: $8.71 |
| 24 | MA-19812472002 | PLUG OILING Not Available Price: |
| 25 | 581154901 | VALVE Price: $8.99 |
| 25 | 70-3910 | WASHER Price: $3.15 |
| 25 | MA-08300100280 | O-RING Not Available Price: |
| 26 | 578895401 | SPRING Price: $3.99 |
| 26 | 70-6900 | O-RING Price: $12.17 |
| 27 | 520977401 | PIN Price: $4.99 |
| 27 | 70-6720 | STUD Price: $6.81 |
| 27 | MA-07300006201 | LINER T=0. Not Available Price: |
| 28 | 577807201 | LEVER Price: $1.99 |
| 28 | 70-3940 | PLATE Price: $58.51 |
| 28 | MA-07300006204 | LINER T=0. Not Available Price: |
| 29 | 521085401 | VALVE INLET Price: $11.99 |
| 29 | 70-6880 | KEY Price: $10.91 |
| 30 | 577807101 | SCREW Price: $2.99 |
| 30 | 70-3680 | CAMSHAFT Price: $673.68 |
| 31 | 516972101 | GASKET Price: $4.99 |
| 31 | 70-3830 | GASKET Price: $3.34 |
| 31 | MA-19631277000 | COVER Not Available Price: |
| 32 | 577807001 | DIAPHRAGM Price: $14.99 |
| 32 | 70-6540 | BOLT Price: $3.73 |
| 32 | MA-F1550110030 | Bolt Price: $3.52 |
| 33 | 514189201 | COVER Price: $6.99 |
| 33 | 70-6780 | NUT Price: $3.97 |
| 33 | MA-69542-64700 | BOLT Not Available Price: |
| 34 | 520978801 | SCREW ASSY Price: $2.99 |
| 34 | 70-6680 | WASHER Price: $1.91 |
| 34 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 35 | 514242601 | BALL Price: $5.99 |
| 35 | 70-3820 | COVER Price: $127.40 |
| 36 | 514243301 | CHOKE SPRING Price: $5.99 |
| 36 | 70-6840 | SCREW Price: $50.06 |
| 37 | 70-3780 | PLATE Price: $1.79 |
| 38 | 70-3700 | RING Price: $4.85 |
| 39 | 70-6940 | SCREW Price: $20.10 |
| 41 | 70-3490 | COVER Price: $14.21 |
| 42 | 70-3850 | SCREW Price: $4.14 |
| 43 | 70-4940 | HOUSING KIT Price: $2,240.01 |
| 44 | 70-3550 | DISCONTINUED Price: Call Us |
| 45 | 70-3540 | VALVE SUB ASSEMBLY Price: $75.51 |
| 46 | 70-3530 | GASKET Price: $1.24 |
| 47 | 70-6910 | O-RING Price: $2.00 |
| 48 | 70-3520 | DISCONTINUED Price: Call Us |
| 49 | 70-3510 | DISCONTINUED Price: Call Us |
| 50 | 70-3500 | DISCONTINUED Price: Call Us |
