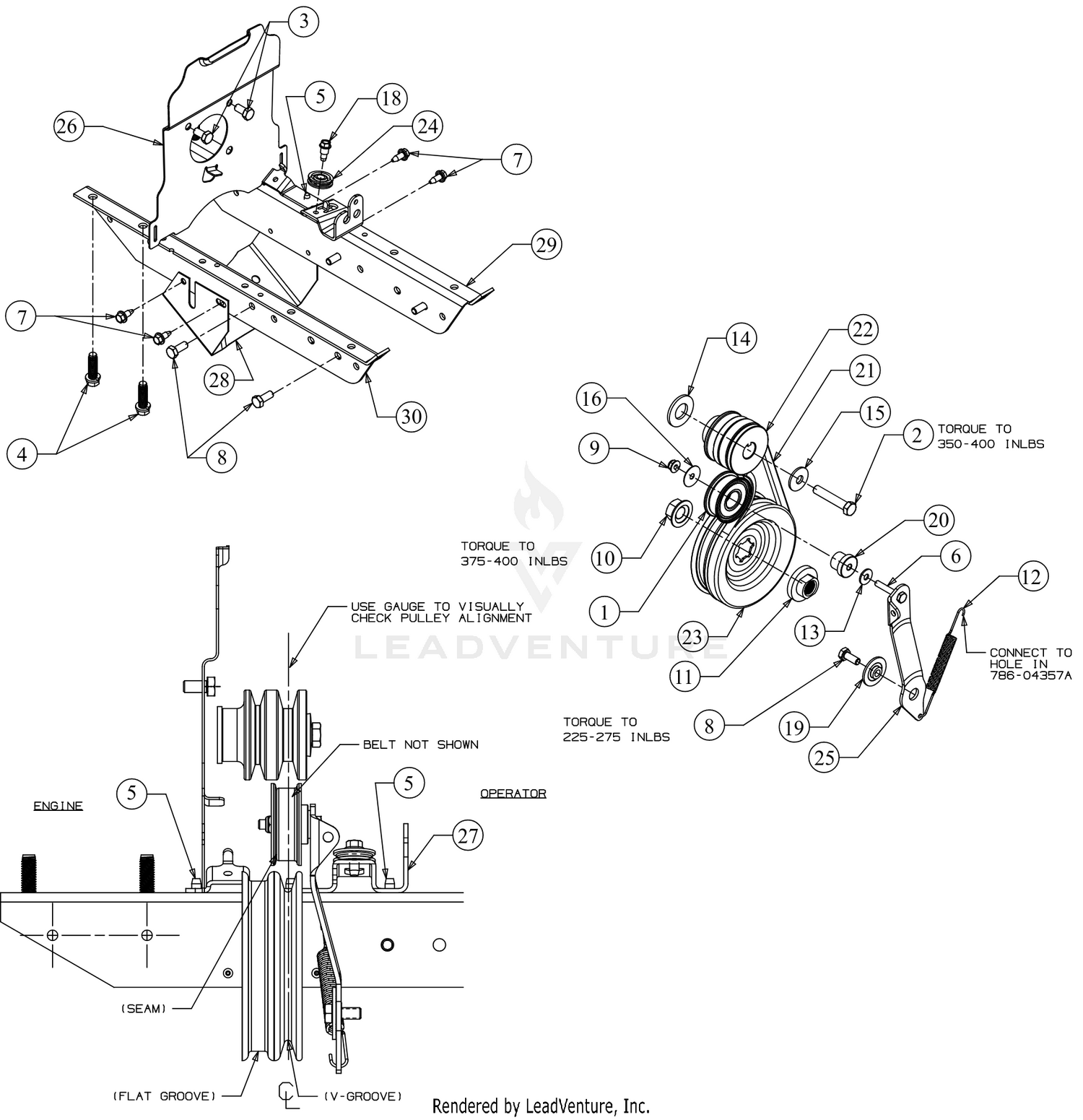

| Ref | Part Number | Description |
|---|
| 1 |
684-04168 |
IDLER PULLEY ASSEMBLY Price: $34.09 |
| 1 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 1 |
790-00230 |
BEARING SLEEVE Price: $6.36 |
| 2 |
710-0151 |
HEX SCREW 3/8-24 X2.00 Price: $6.55 |
| 3 |
710-0170 |
HEX SCREW 5/16-24 x .62 Price: $5.72 |
| 4 |
710-0502A |
SCREW 3/8-16 x 1.250 Price: $5.71 |
| 5 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 6 |
710-0606 |
SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 7 |
710-0896 |
SCREW 1/4-14 x .625 Price: $3.86 |
| 8 |
710-1880 |
SCREW 5/16-18 x .750 Price: $4.02 |
| 9 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 10 |
712-0700 |
FLANGE NUT W/HUB Price: $10.12 |
| 11 |
718-04407 |
PULLEY HUB Price: $11.11 |
| 12 |
732-04085 |
RETURN SPRING Price: $12.40 |
| 13 |
736-0173 |
FLAT WASHER .28 ID x .74 OD x .063 Price: $3.76 |
| 14 |
736-0315 |
FLAT WASHER Price: $5.94 |
| 15 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05 |
| 16 |
736-3092 |
FLAT WASHER Price: $3.68 |
| 18 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 19 |
748-04087A |
PIVOT IDLER SPACER Price: $5.66 |
| 20 |
750-04571 |
SHOULDER SPACER Price: $6.01 |
| 21 |
954-04090 |
V-BELT FWD DRIVE 4L x 25.375 Price: $18.60 |
| 22 |
756-04198A |
ENGINE PULLEY Price: $49.05 |
| 23 |
756-04355 |
TRANSMISSION PULLEY Price: $48.52 |
| 24 |
756-0625 |
CABLE GUIDE ROLLER Price: $8.52 |
| 25 |
786-04312 |
FORWARD IDLER BRACKET Price: $11.96 |
| 26 |
786-04343-0638 |
REVERSE IDLER BRACKET Price: $17.41 |
| 27 |
786-04357A-0638 |
CABLE BRACKET ROLLER Price: $9.67 |
| 28 |
786-04371-0638 |
PULLEY SHIELD Price: $17.73 |
| 29 |
986-04418B-0638 |
FRAME-MOUNT (RH) (MTD RED) This part replaces 786-04418B-0638. Price: $17.59 |
