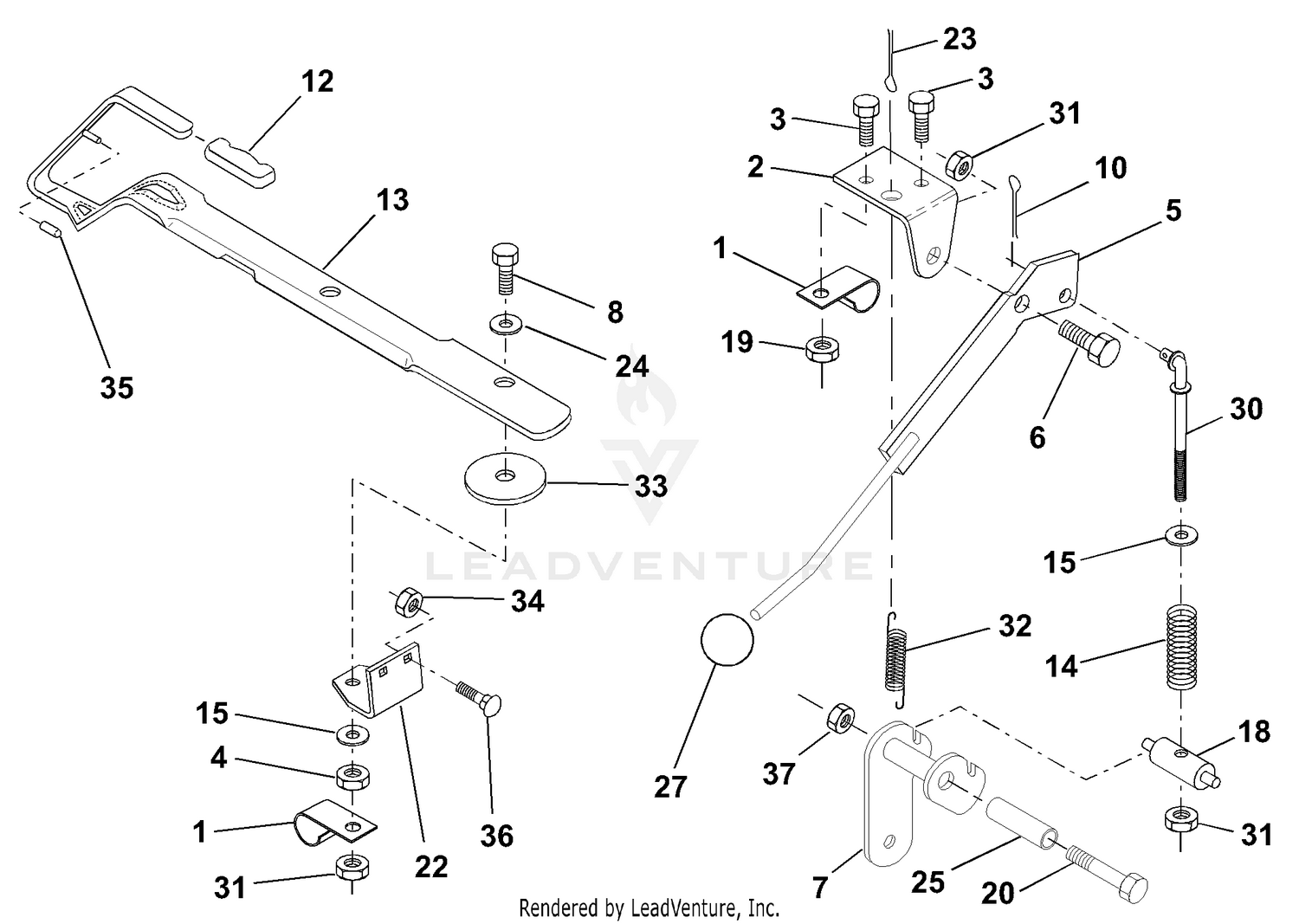

| Ref | Part Number | Description |
|---|
| 1 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 1 |
532126470 |
CLIP,INSULATOR Price: $3.99 |
| 2 |
532122018 |
BRKT CLUTCH Price: $2.38 |
| 2 |
62-7240 |
DISCONTINUED Price: Call Us |
| 3 |
596437001 |
Screws This part replaces 874780408. Price: $2.99 |
| 4 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 5 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 5 |
532132552 |
CLUTCH LEVER Price: $9.03 |
| 6 |
532106451 |
BOLT, SHOULDER LT Price: $2.99 |
| 6 |
93-6912 |
DISCONTINUED Price: Call Us |
| 7 |
283-75 |
PIN-CLEVIS Price: $1.56 |
| 7 |
532141435 |
CLUTCH ARM ASMBLY Price: $18.99 |
| 8 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 Price: $6.99 |
| 9 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 10 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 10 |
92-1818-01 |
ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39 |
| 11 |
323-9 |
SCREW-HH Price: $1.29 |
| 12 |
32144-109 |
SCREW-THD Price: $1.29 |
| 12 |
532122027 |
GRIP HANDLE Price: $5.72 |
| 13 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 13 |
532136658 |
LIFT LEVER ASM Price: $19.99 |
| 14 |
532133939 |
COMP. CLUTCH SPRING Price: $3.99 |
| 14 |
93-6893 |
PIN-PIVOT, RAM Price: $49.13 |
| 15 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 15 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 18 |
532135107 |
TRUNNION Price: $6.71 |
| 19 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 19 |
94-5009 |
HOSE ASM Price: $102.32 |
| 20 |
874760644 |
BOLT Price: $3.99 |
| 20 |
94-5008 |
HOSE ASM Price: $102.26 |
| 21 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 22 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 22 |
532132561 |
LIFT LEVER BRACKET Price: $2.42 |
| 23 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 23 |
93-6869 |
HYD CYLINDER ASM Price: $638.61 |
| 24 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 24 |
532007672 |
WASHER Price: $1.09 |
| 25 |
532121933 |
TUBE SPACER Price: $4.28 |
| 26 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 27 |
532121466 |
KNOB Price: $3.99 |
| 28 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 29 |
93-6926 |
PIN-CLEVIS Price: $33.72 |
| 30 |
322-4 |
SCREW-HH Price: $0.35 |
| 30 |
532135039 |
TENSION ROD CLUTCH Price: $5.99 |
| 31 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 31 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 32 |
322-26 |
SCREW-HH Price: $2.36 |
| 32 |
532133435 |
SPRING EXT Price: $2.42 |
| 33 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
532062333 |
WASHER Price: $3.99 |
| 34 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 34 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 35 |
532133603 |
CAP.VINYL.RED Price: $2.99 |
| 35 |
94-3635 |
CENTER LIFT ARM ASM Price: $280.94 |
| 36 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 36 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 37 |
99-2338 |
SHAFT-PIVOT This part replaces 94-5069. Price: $101.09 |
| 38 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 39 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 40 |
237-78 |
O-RING Price: $3.85 |
| 41 |
237-21 |
O-RING Price: $0.70 |
| 42 |
98-3445 |
SPACER Price: $6.02 |
| 43 |
98-3446 |
PLATE-REINFORCEMENT Price: $11.38 |
| 44 |
323-4 |
SCREW-HH Price: $1.02 |
