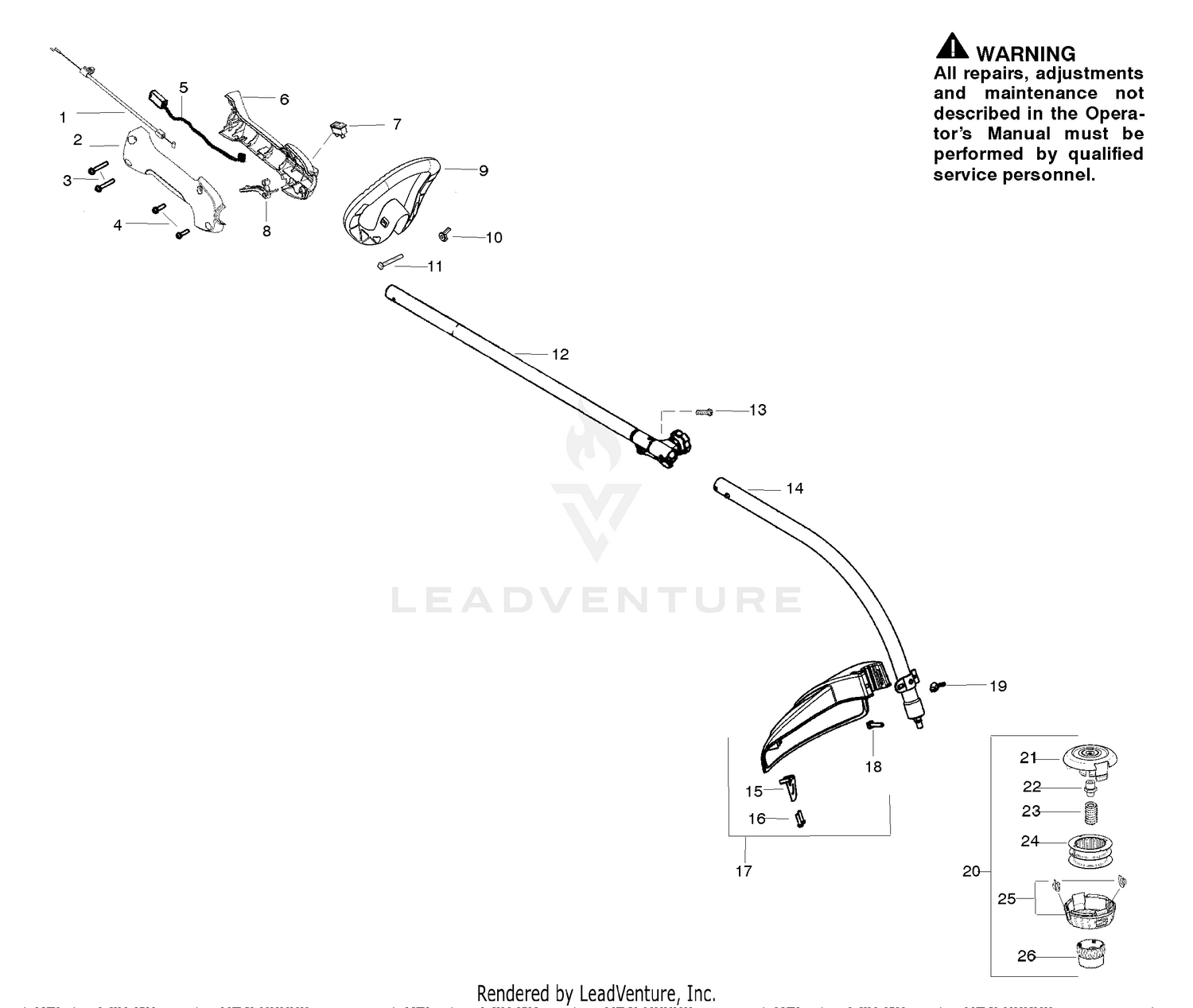

Handle & Shaft Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530059759 | Assy-Throttle Cable Price: $9.99 |
| 3 | 530016406 | Screw Price: $1.99 |
| 4 | 530015814 | Screw Price: $1.99 |
| 5 | 530054183 | Assy.-Wire Price: $4.99 |
| 7 | 530069572 | Kit-Switch Price: $4.99 |
| 8 | 530049107 | TRIGGER RED This part replaces 545077601. Price: $1.99 |
| 10 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 11 | 530015786 | Bolt Price: $1.99 |
| 13 | 530016344 | Screw Price: $1.99 |
| 14 | 530071788 | Kit-Lower Shaft Price: $37.99 |
| 15 | 530052286 | Limiter-Line Price: $1.54 |
| 16 | 530015814 | Screw Price: $1.99 |
| 18 | 530015820 | Bolt Price: $1.99 |
| 19 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 21 | 537419303 | Housing Price: $6.99 |
| 22 | 537419901 | Adapter Price: $5.99 |
| 23 | 537338801 | Spring Price: $2.99 |
| 24 | 545080801 | Assy-Wound Spool Price: $3.99 |
| 25 | 545003365 | Kit-Cover and Eyelet Price: $8.99 |
| 26 | 537419601 | Knob Price: $3.99 |
