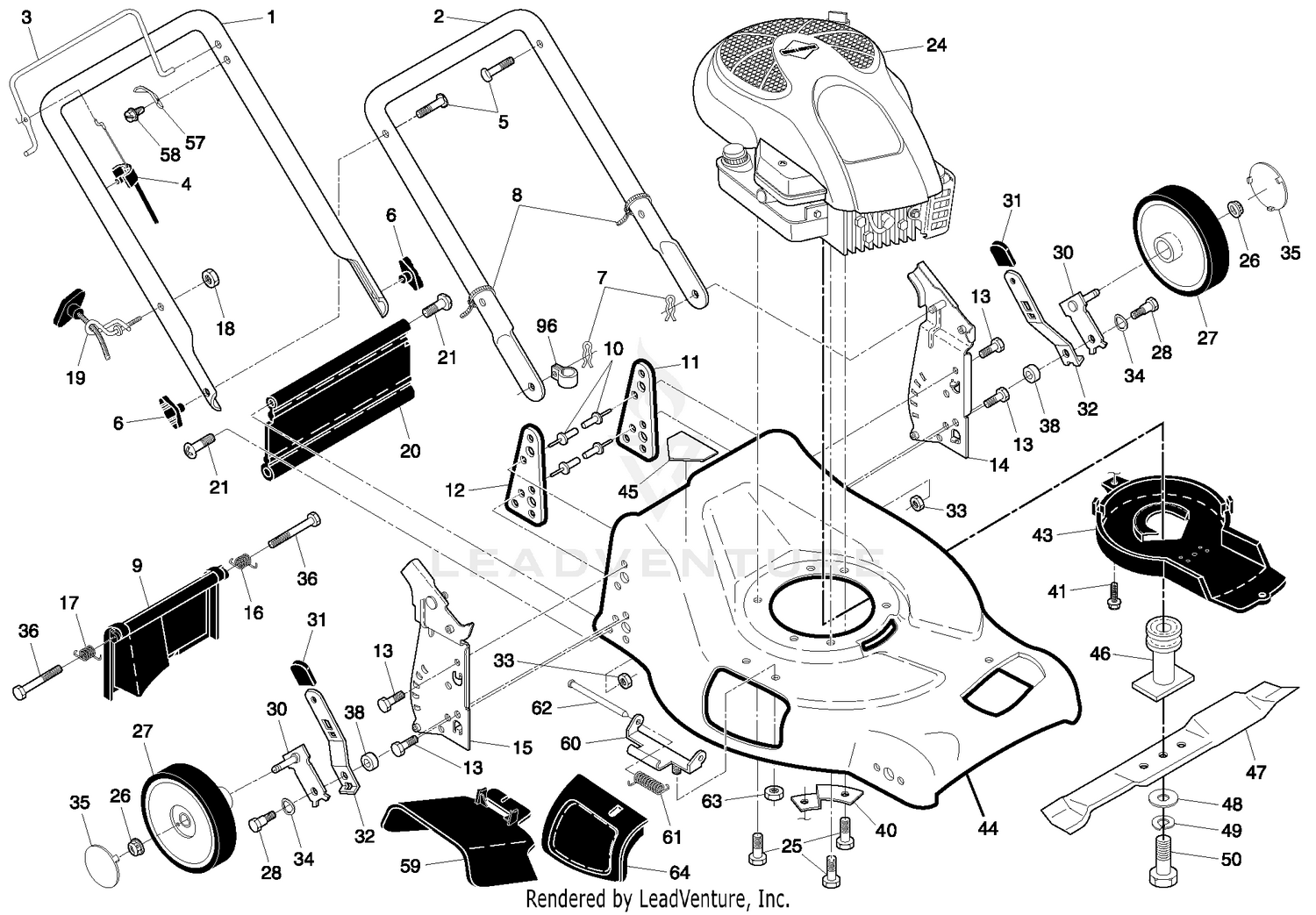

| Ref | Part Number | Description |
|---|
| 1 |
194200X479 |
Upper Handle Price: Call Us |
| 2 |
151721X479 |
Lower Handle Price: Call Us |
| 3 |
194199X421 |
Control Bar Price: Call Us |
| 4 |
183567 |
Engine Zone Control Cable Price: Call Us |
| 5 |
191574 |
Handle Bolt Price: Call Us |
| 6 |
189713X428 |
Handle Knob Price: Call Us |
| 7 |
51793 |
Hairpin Cotter Price: Call Us |
| 8 |
664-26 |
Wire Tie Price: Call Us |
| 9 |
401812X428 |
Rear Door Assembly Price: Call Us |
| 10 |
128415 |
Pop Rivet Price: Call Us |
| 11 |
406573X479 |
Support Bracket, LH Price: Call Us |
| 12 |
406574X479 |
Support Bracket, RH Price: Call Us |
| 13 |
17060410 |
Screw, Tapping 1/4-20 x 5/8 Price: Call Us |
| 14 |
175082X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 15 |
175081X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 16 |
405417 |
Spring, Rear Door, LH Price: Call Us |
| 17 |
405418 |
Spring, Rear Door, RH Price: Call Us |
| 18 |
132004X421 |
Nut, Hex 1/4-20 Price: Call Us |
| 19 |
194788 |
Rope Guide Price: Call Us |
| 20 |
189005 |
Rear Skirt Price: Call Us |
| 21 |
88652 |
Hinge Screw 1/4-20 x 1-1/4 Price: Call Us |
| 25 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: Call Us |
| 26 |
409148 |
Hex Flange Nut Price: Call Us |
| 27 |
150339 |
Wheel & Tire Assembly Price: Call Us |
| 28 |
401638 |
Shoulder Bolt 5/16-18 x 1-21/64 Price: Call Us |
| 30 |
401178X004 |
Axle Arm Assembly, Rear Price: Call Us |
| 31 |
701037X421 |
Selector Knob Price: Call Us |
| 32 |
401623X004 |
Selector Spring Price: Call Us |
| 33 |
155377 |
Nut, Hex Price: Call Us |
| 34 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 35 |
407793X421 |
Hubcap Price: Call Us |
| 36 |
184193 |
Bolt, Rear Door Price: Call Us |
| 39 |
401629 |
Spacer Price: Call Us |
| 40 |
188839X004 |
Mounting Bracket, Debris Shield Price: Call Us |
| 41 |
192325 |
Screw, Debris Shield Price: Call Us |
| 43 |
405845 |
Debris Shield Price: Call Us |
| 45 |
404763 |
Danger Decal Price: Call Us |
| 46 |
189179 |
Blade Adapter / Pulley Price: Call Us |
| 47 |
406712 |
Blade, 21" Price: Call Us |
| 48 |
851074 |
Hardened Washer Price: Call Us |
| 49 |
850263 |
Helical Washer Price: Call Us |
| 50 |
851084 |
Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8 Price: Call Us |
| 57 |
850733X004 |
Bracket, Upstop Price: Call Us |
| 58 |
750634 |
Screw #10-24 x 1/2 Price: Call Us |
| 59 |
175071 |
Discharge Deflector Price: Call Us |
| 60 |
173735 |
Hinge Bracket Price: Call Us |
| 61 |
193000 |
Hinge Spring Price: Call Us |
| 62 |
175650 |
Hinge Rod Price: Call Us |
| 63 |
73800400 |
Nut, Hex Price: Call Us |
| 64 |
175066 |
Mulcher Door Price: Call Us |
| 96 |
193733 |
Operator's Manual, English Price: Call Us |
| 96 |
193736 |
Operator's Manual, French Price: Call Us |
| 96 |
197991 |
Clip, Cable Price: Call Us |
