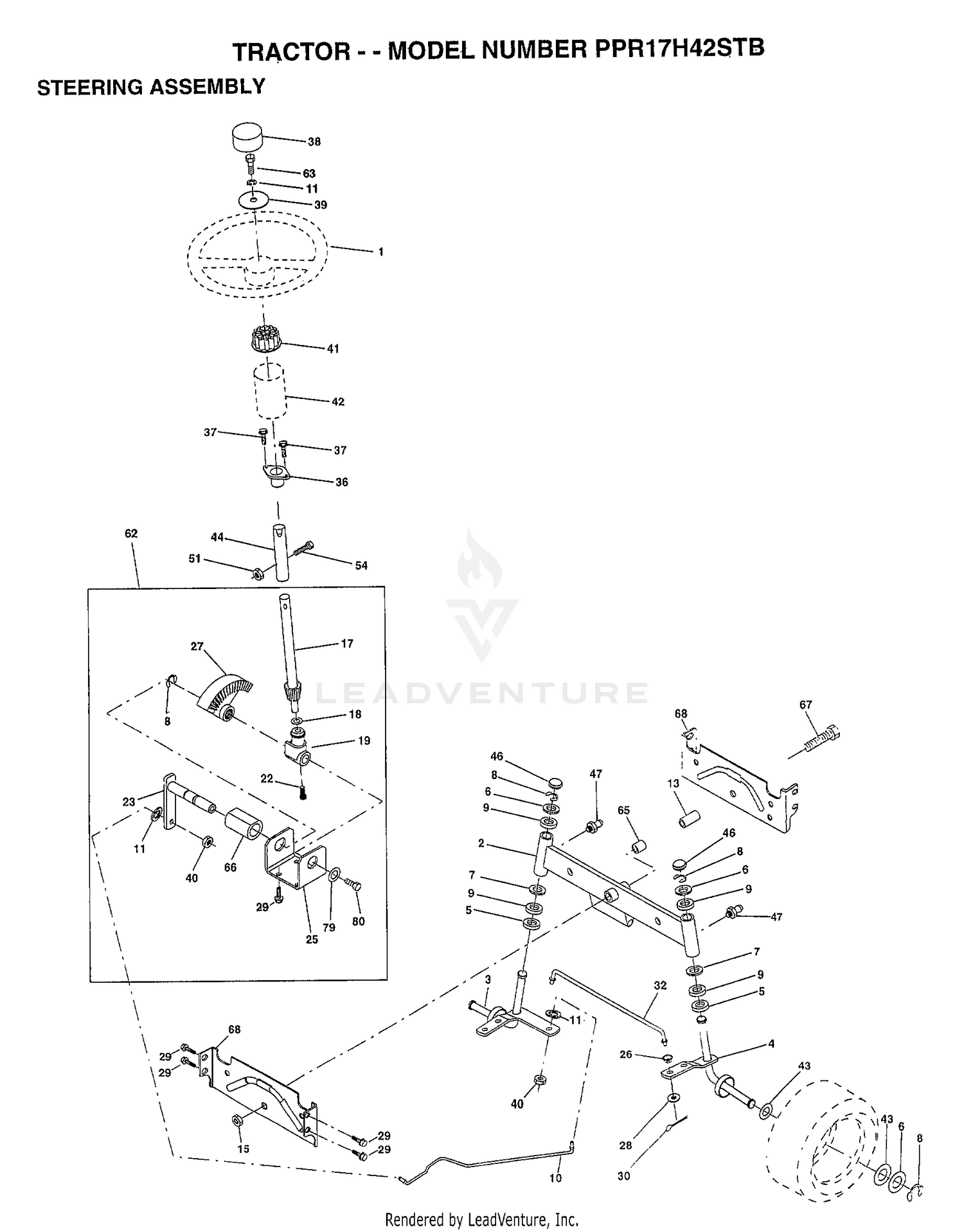

| Ref | Part Number | Description |
|---|
| 1 |
121472X |
SUB= 150546 Price: Call Us |
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
154427 |
AXLE ASM Price: Call Us |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
156483 |
SPINDLE.ASM.LH Price: Call Us |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 5 |
6266H |
WASHER .T Price: Call Us |
| 5 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 6 |
121748X |
WASHER Price: Call Us |
| 6 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 7 |
19272016 |
WASHER Price: Call Us |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
12000029 |
RING Price: Call Us |
| 8 |
139-6524 |
ENGINE-BRIGGS STRATTON,VANGUARD This part replaces 107-9525. Price: $2,957.43 |
| 9 |
3366R |
COL. SRTG. BEAR. Price: Call Us |
| 9 |
98-0616 |
MUFFLER Price: $136.88 |
| 10 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400-03. Price: $18.94 |
| 10 |
156438 |
DRAGLINK-STAMPED Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 12 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 13 |
154779 |
BEARING AXLE Price: Call Us |
| 13 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 14 |
322-8 |
SCREW-HH Price: $1.26 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
156546 |
SHAFT ASM STEERIN Price: Call Us |
| 17 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 18 |
57079 |
THRUST WASHER Price: Call Us |
| 19 |
160395 |
SUPPORT.SHAFT.STEER Price: Call Us |
| 19 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 20 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 21 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 22 |
165857 |
SCREW.HX.WSH.HD Price: Call Us |
| 22 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 23 |
165851 |
SHAFT.ASM.PITMAN Price: Call Us |
| 23 |
324-7 |
SCREW-HH Price: $1.79 |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 25 |
154406 |
BRKT-STEERING Price: Call Us |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
126847X |
BUSHING.DRAGLINK Price: Call Us |
| 26 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 27 |
136874 |
GEAR SECTOR Price: Call Us |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 28 |
19131416 |
WASHER Price: Call Us |
| 29 |
17060612 |
SCREW Price: Call Us |
| 30 |
43-2830 |
NUT-HEX Price: $0.39 |
| 30 |
76020412 |
COTTER PIN Price: Call Us |
| 31 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 32 |
130465 |
TIE ROD Price: Call Us |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 36 |
155099 |
BUSHING.STEERING Price: Call Us |
| 39 |
19133812 |
WASHER Price: Call Us |
| 40 |
7810H |
GRIPCO NUT Price: Call Us |
| 41 |
100711L |
ADAPTER LT Price: Call Us |
| 42 |
145054 |
BOOT.STEER.PL Price: Call Us |
| 43 |
121749X |
WASHER Price: Call Us |
| 44 |
153720 |
EXT SHAFT STEERIN Price: Call Us |
| 46 |
121232X |
CAP Price: Call Us |
| 47 |
6855M |
ZERK M Price: Call Us |
| 51 |
73800500 |
NUT Price: Call Us |
| 54 |
74780520 |
BOLT Price: Call Us |
| 62 |
167902 |
KIT.STEER.ASM Price: Call Us |
| 63 |
74780616 |
BOLT Price: Call Us |
| 65 |
154780 |
SPACER AXLE Price: Call Us |
| 67 |
74781044 |
BOLT Price: Call Us |
| 68 |
154429 |
BRACE AXLE Price: Call Us |
| 79 |
19132012 |
WASHER Price: Call Us |
