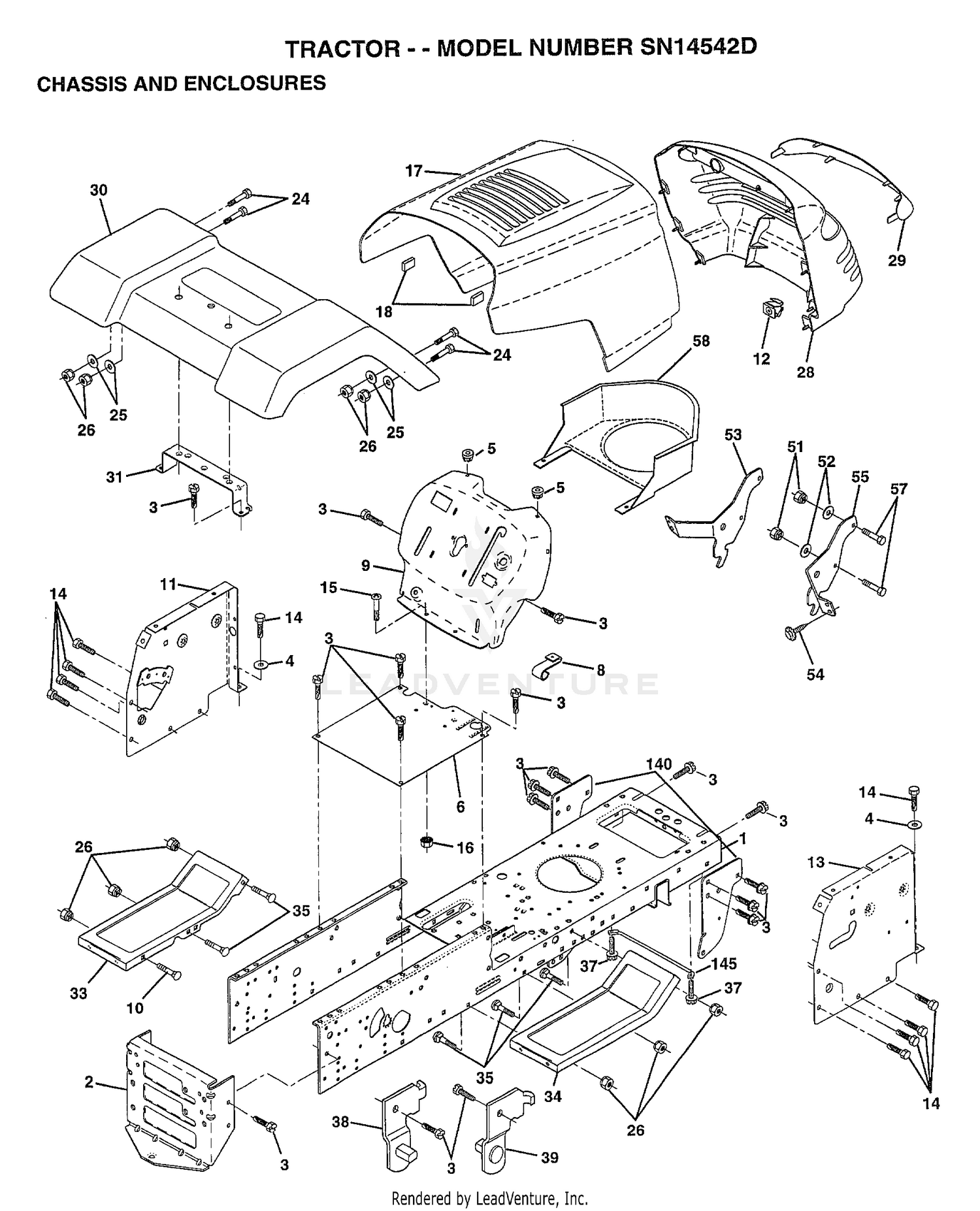

| Ref | Part Number | Description |
|---|
| 1 |
165480 |
CHASSIS.STAMPING Price: Call Us |
| 1 |
43-3320 |
FOAM-RADIATOR Price: $24.27 |
| 2 |
105-2919 |
HOOD ASM Price: $791.02 |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
63-9010 |
HOSE-COOLANT, TRANSMISSION Price: $83.18 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
340-70 |
NUT-LOCK Price: $2.10 |
| 6 |
105-0007-03 |
FAN SHROUD ASM Price: $202.26 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 7 |
323-14 |
SCREW-HH Price: $1.34 |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 8 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 9 |
104-3432 |
HOSE-RADIATOR, BOTTOM Price: $126.04 |
| 9 |
161937X011 |
DASH SILKSCREEN Price: Call Us |
| 10 |
104-3433 |
HOSE-RADIATOR, TOP Price: $146.62 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
32128-21 |
NUT-HF Price: $0.39 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 13 |
2412-4 |
CLAMP-R Price: $4.22 |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 15 |
67-9030-03 |
GRILLE ASM Price: $254.81 |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
32103-2 |
NUT-WING Price: $0.68 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
159639X558 |
HOOD.PNT.W/TRIM Price: Call Us |
| 17 |
5-0838 |
WASHER Price: $1.09 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 18 |
283-76 |
PIN-LYNCH Price: $6.67 |
| 19 |
84-5330 |
BRACKET-PROP, HOOD Price: $14.29 |
| 20 |
84-5380 |
STRAP-PROP, HOOD Price: $46.67 |
| 21 |
321-6 |
SCREW-HH Price: $0.25 |
| 22 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 23 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 24 |
105-2542-01 |
BRACKET-SUPPORT, SEAT Price: $93.70 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 25 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
68-9160 |
BRACKET Price: $16.82 |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 28 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 29 |
140273X599 |
LENS.GRILLE.PRIVATE LABEL Price: Call Us |
| 29 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 30 |
157583X558 |
FENDER Price: Call Us |
| 30 |
86-7040 |
ROD-PROP, SEAT Price: $29.51 |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 31 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 32 |
62-3010-01 |
BRACKET-RH Price: $11.57 |
| 33 |
145244X558 |
FOOTREST.LH.YT/GT Price: Call Us |
| 33 |
62-3020-01 |
BRACKET-LH Price: $12.72 |
| 34 |
145243X558 |
FOOTREST.RH.LT/YT Price: Call Us |
| 34 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 35 |
110-4109 |
HOSE-FUEL Price: $11.24 |
| 35 |
72110606 |
BOLT Price: Call Us |
| 36 |
3290-55 |
RIVET-POP Price: $0.25 |
| 37 |
105-4255-01 |
PULLEY GUARD ASM Price: $83.08 |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
105-4265 |
TUBE-VENT Price: $25.94 |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 39 |
62-7400 |
DECAL Price: $24.54 |
| 41 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 42 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 43 |
321-4 |
SCREW-HH Price: $0.99 |
| 44 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 45 |
32128-20 |
NUT-HF Price: $0.99 |
| 46 |
105-4264-03 |
GRILL-PLATE, SEALING Price: $39.30 |
| 47 |
32128-33 |
NUT-HF Price: $0.25 |
| 48 |
108-8699 |
RADIATOR ASM Price: $1,258.90 |
| 49 |
63-8960 |
HOSE Price: $111.27 |
| 50 |
105-0012-03 |
CLIP-MOUNTING, FAN SHROUD Price: $12.02 |
| 51 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
117-3276 |
DECAL-DANGER This part replaces 106-5976. Price: $10.70 |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
105-2918 |
RADIATOR SUPPORT ASM Price: $504.61 |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 55 |
66-6140 |
DECAL Price: $25.48 |
| 56 |
106-4396 |
DECAL Price: $25.47 |
| 57 |
2412-83 |
CLAMP-CABLE Price: $9.85 |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
