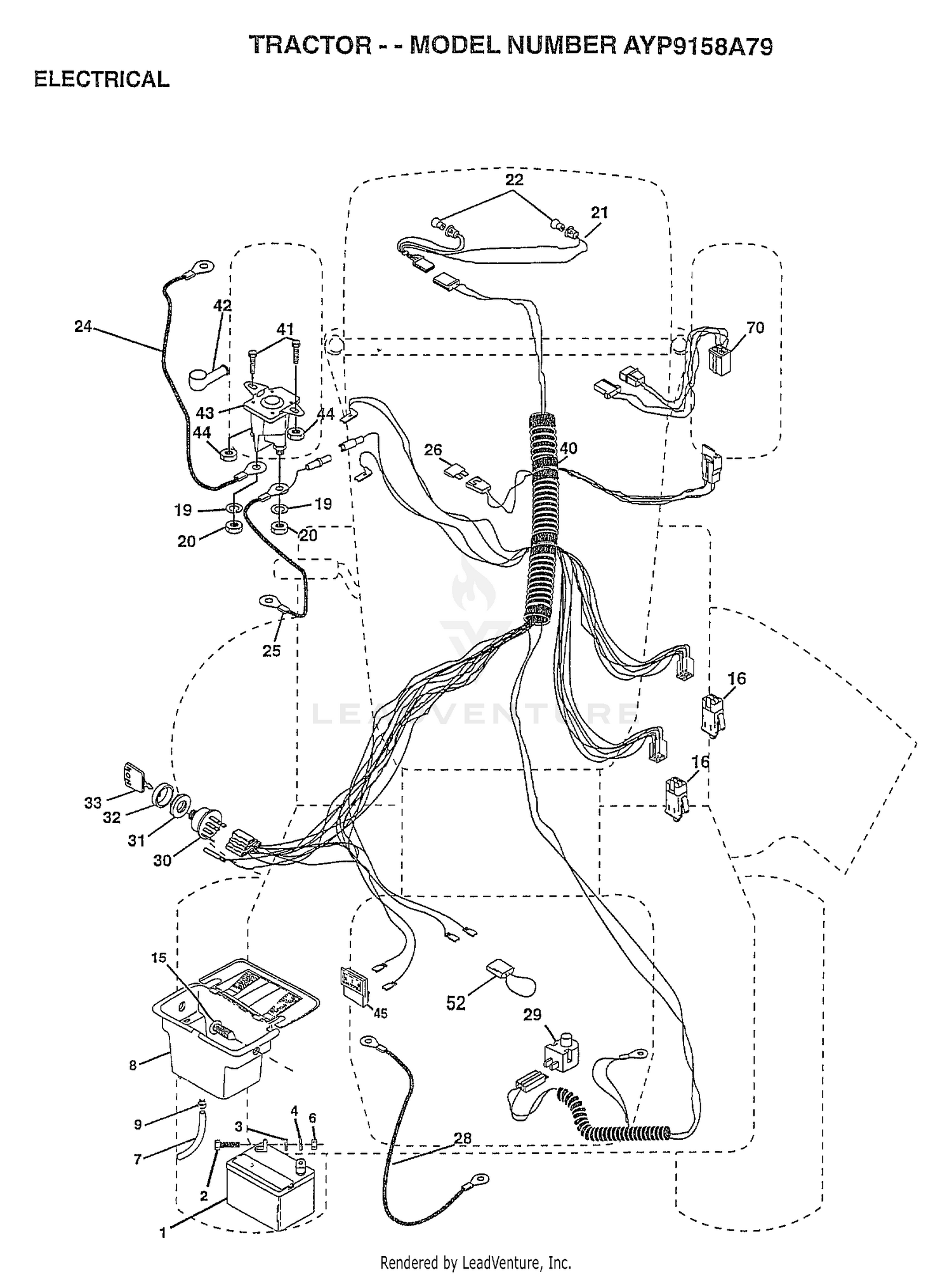

| Ref | Part Number | Description |
|---|
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 2 |
92-1818-01 |
ARM-SPRING, TENSION Price: $13.39 |
| 3 |
19091016 |
WASHER Price: Call Us |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
32144-109 |
SCREW-THD Price: $1.29 |
| 5 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 6 |
93-6893 |
PIN-PIVOT, RAM Price: $49.13 |
| 7 |
109238X |
TUBE T Price: Call Us |
| 7 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 8 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 9 |
104-4002 |
HOSE ASM Price: $133.46 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 10 |
94-5008 |
HOSE ASM Price: $102.26 |
| 11 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 12 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 13 |
93-6869 |
HYD CYLINDER ASM Price: $638.61 |
| 14 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 15 |
147688 |
FASTNER.SNAP-IN Price: Call Us |
| 15 |
93-6926 |
PIN-CLEVIS Price: $33.72 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
322-4 |
SCREW-HH Price: $0.35 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
322-26 |
SCREW-HH Price: $2.36 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
94-3635 |
CENTER LIFT ARM ASM Price: $280.94 |
| 21 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
99-2338 |
SHAFT-PIVOT Price: $101.09 |
| 23 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 24 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 25 |
146147 |
CABLE.BTRY.6GA.RD Price: Call Us |
| 25 |
323-4 |
SCREW-HH Price: $1.02 |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
98-3445 |
SPACER Price: $6.02 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
156442 |
HARNESS-IGNITION Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 45 |
121433X |
SUB= 122822X Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
