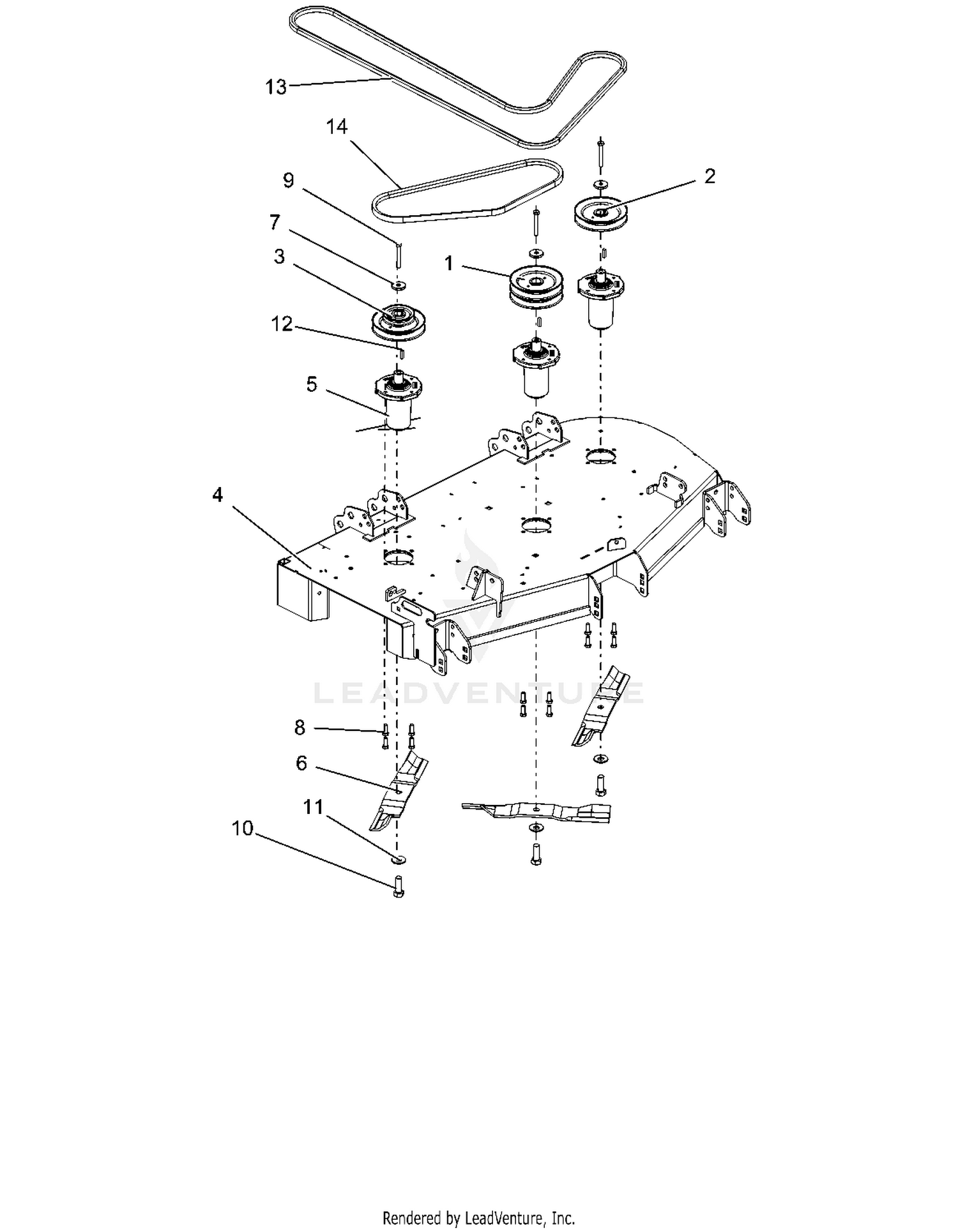

Deck, Belts, Blades And Spindles - 48"

Deck, Belts, Blades And Spindles - 48"

Parts (13)

RefPart NumberDescription
1 07329200 PULLEY, DOUBLE 1.000 ID X 5.750 OD This part replaces 07329267. Price: $72.45
2 07329300 PULLEY, V - 1.000 ID X 5.750 OD This part replaces 07329367. Price: $63.95
3 07329467 PULLEY, DBL-1"IDX5.75"&3.50"OD Price: $89.95
4 59102500 KIT,DECK - 48" W/SAFETY DECALS Price: $897.95
5 59125000 ASM, MAINT FREE ALUM SPINDLE This part replaces 59215400. Price: $214.45
6 00450200 BLADE, 16.19" MOWER (HI-LIFT) Price: $25.95
7 04530500 RETAINER, SHEAVE Price: $7.95
8 05901721 BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95
9 05901813 BLT, HEX .38-16X2.75 G8 ZCC This part replaces 05963000. Price: $1.45
10 05901822 BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45
11 06445700 WSHR-BLVL .669X1.535X.138 Price: $4.45
12 06611200 KEY, SQ .25X.25X1.00 RC 40-50 Price: $2.95
13 07200025 HEX BELT, BB-WRAPPED. Price: $104.95
