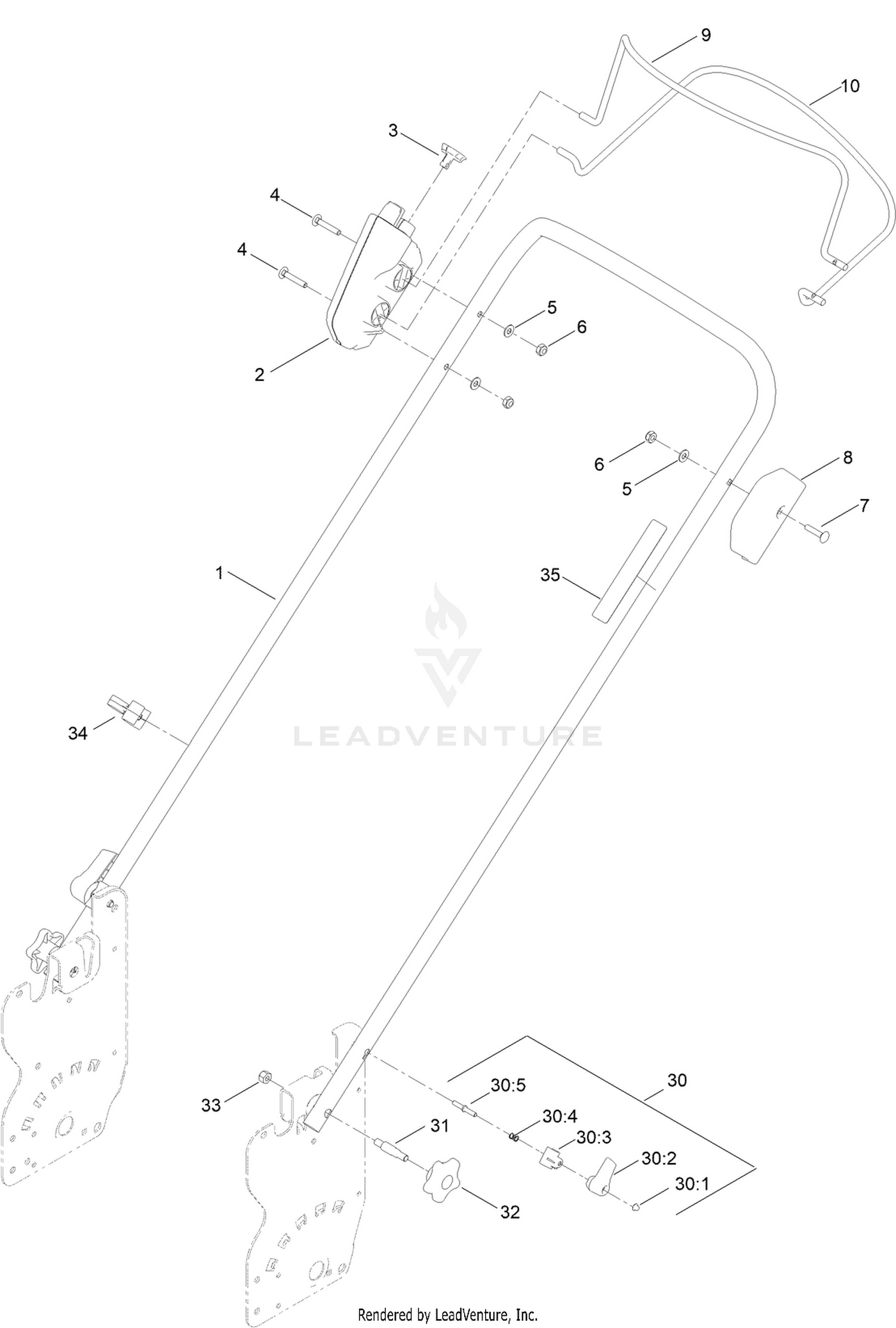

Handle Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 144-6534-05 | HANDLE-MOWER, ELECTRIC Price: $59.99 |
| 2 | 145-5641 | ASM-CONTROL, 2 BAIL Price: $76.99 |
| 3 | 145-5624 | KEY-BAIL Price: $1.69 |
| 4 | 108-0988 | SCREW-CARR Price: $0.79 |
| 5 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 6 | 139-1724 | NUT-LOCK Price: $0.39 |
| 7 | 3229-3 | SCREW-CARR Price: $4.49 |
| 8 | 147-4212 | BASE-PIVOT Price: $4.79 |
| 9 | 147-4205-03 | BAIL-BLADE Price: $12.99 |
| 10 | 147-4204-03 | BAIL-TRACTION Price: $12.99 |
| 30 | 138-3249 | QUICK RELEASE ASM Price: $10.99 |
| 31 | 139-6588 | BOLT-SHOULDER, HANDLE Price: $1.59 |
| 32 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 33 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 34 | 114-7988 | GUIDE-CABLE Price: $2.59 |
