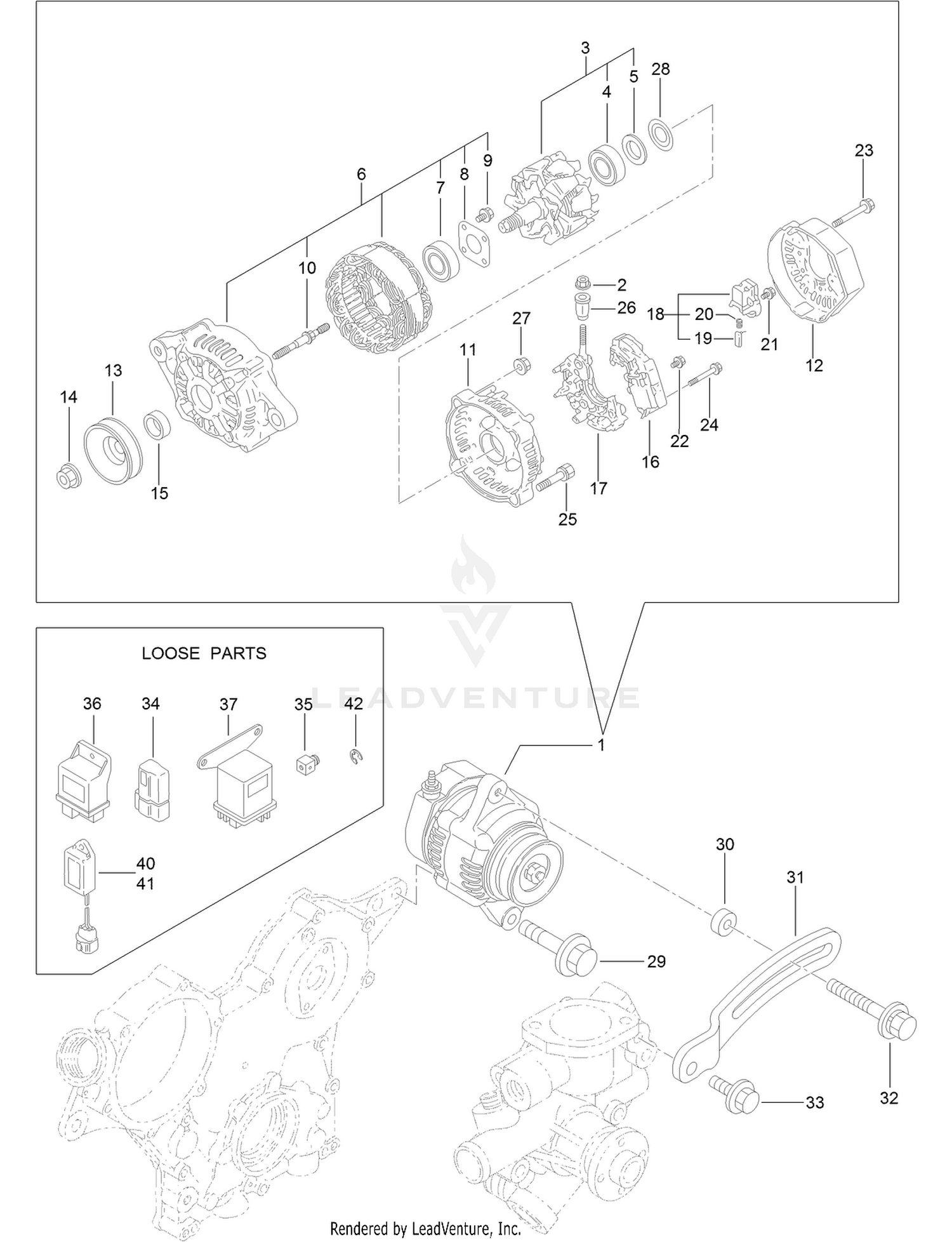

Generator Assembly
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-3001 | GENERATOR Price: $1,526.12 |
| 2 | 127-3190 | NUT Price: $4.86 |
| 3 | 127-2951 | ROTOR ASM Price: $326.08 |
| 4 | 127-2983 | BEARING-BALL Price: $23.48 |
| 5 | 127-2962 | COVER Price: Call Us |
| 6 | 127-2952 | FRAME ASM Price: Call Us |
| 7 | 127-2958 | BEARING-BALL Price: $25.78 |
| 8 | 127-2959 | PLATE-RETAINER Price: Call Us |
| 9 | 127-2960 | SCREW Price: Call Us |
| 10 | 127-2961 | STUD Price: Call Us |
| 11 | 127-2953 | FRAME ASM Price: $57.52 |
| 12 | 127-2999 | COVER Price: $22.03 |
| 13 | 127-2954 | PULLEY Price: $69.59 |
| 14 | 127-2955 | NUT Price: Call Us |
| 15 | 127-2957 | COLLAR Price: $16.32 |
| 16 | 127-3002 | REGULATOR ASM Price: $643.65 |
| 17 | 127-2963 | HOLDER Price: $253.39 |
| 18 | 127-2993 | HOLDER Price: $95.21 |
| 19 | 127-2956 | BRUSH ASM Price: $8.83 |
| 20 | 127-2964 | SPRING Price: $3.16 |
| 21 | 127-2965 | SCREW Price: Call Us |
| 22 | 127-2966 | SCREW Price: Call Us |
| 23 | 127-2967 | BOLT Price: $9.43 |
| 24 | 127-2968 | SCREW Price: $4.72 |
| 25 | 127-2969 | BOLT Price: Call Us |
| 26 | 127-2970 | BUSHING-INSULATION Price: Call Us |
| 27 | 127-2971 | NUT Price: Call Us |
| 28 | 127-2972 | WASHER Price: Call Us |
| 29 | 135-4277 | BOLT Price: $2.49 |
| 30 | 125-6947 | SPACER Price: $21.65 |
| 31 | 135-4279 | ADJUSTER-BELT Price: $85.99 |
| 32 | 125-7134 | BOLT Price: $25.74 |
| 33 | 125-7595 | BOLT Price: $2.39 |
| 34 | 134-1393 | DIODE Price: $10.85 |
| 35 | 134-1465 | RETAINER Price: $13.94 |
| 36 | 134-1453 | RELAY-SAFETY Price: $237.06 |
| 37 | 134-1394 | GLOW RELAY ASM Price: $72.70 |
| 40 | 134-1501 | TIMER Price: $110.65 |
| 41 | 134-1507 | TIMER Price: $110.65 |
