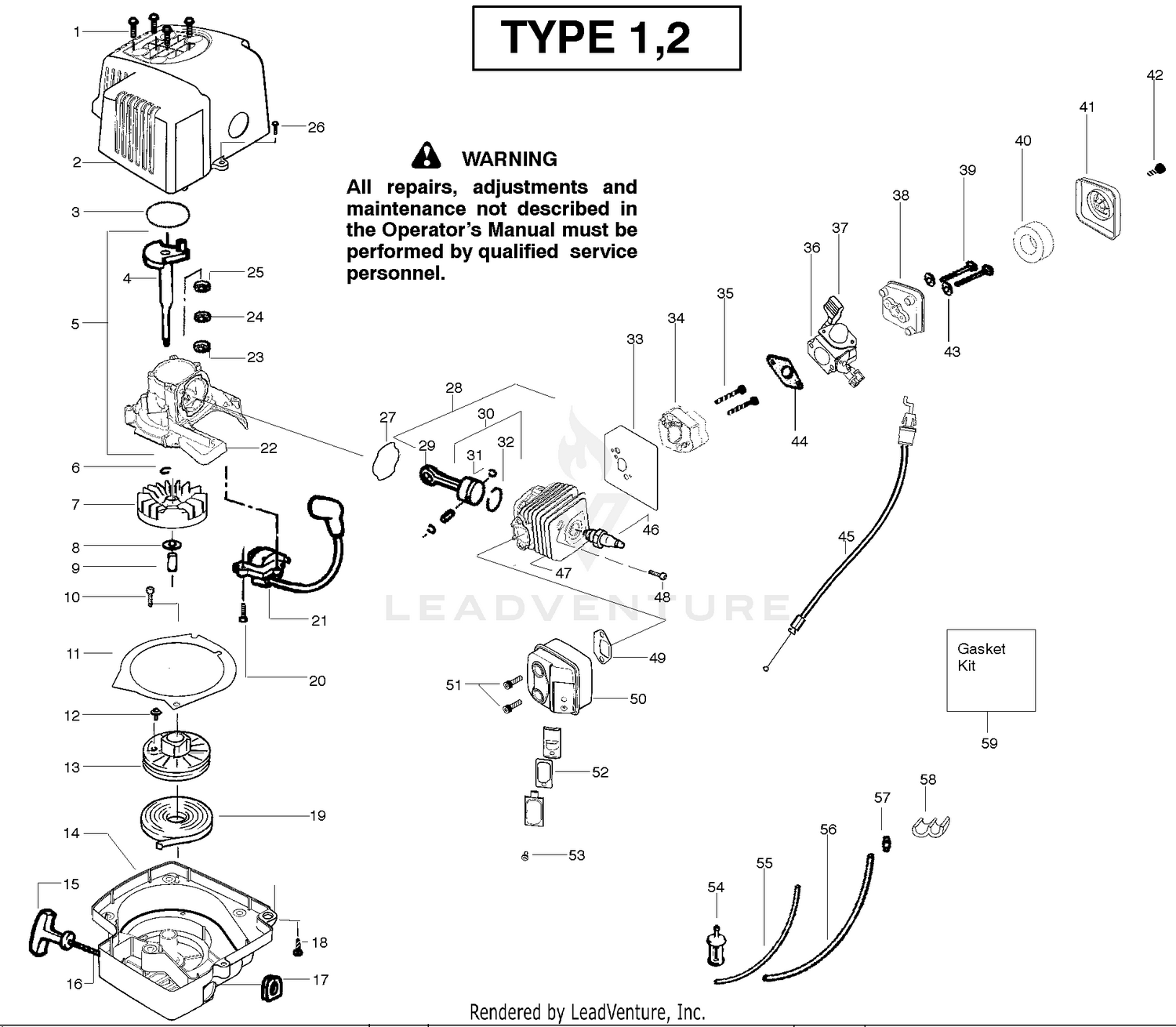

| Ref | Part Number | Description |
|---|
| 1 |
22-7780 |
DISCONTINUED Price: Call Us |
| 1 |
530016386 |
Screw Price: $5.99 |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 2 |
530058573 |
Assy-Shroud/H'shield Price: $14.99 |
| 3 |
22-7770 |
DISCONTINUED Price: Call Us |
| 3 |
530071486 |
O-Ring-C'case (kit) Price: $5.99 |
| 4 |
18-5540 |
RETAINER-STOP, SLEEVE Price: $18.31 |
| 4 |
545145801 |
CRANKSHAFT ASSY This part replaces 530028802. Price: $17.99 |
| 5 |
22-7760 |
DISCONTINUED Price: Call Us |
| 6 |
22-7680 |
DISCONTINUED Price: Call Us |
| 6 |
530015941 |
Ring-Retainer-C'shaft Price: $1.99 |
| 7 |
22-7700 |
Pivot Pin, Flyweight Price: Call Us |
| 7 |
545221701 |
FLYWHEEL ASSY This part replaces 530071487. Price: $8.99 |
| 8 |
22-7690 |
DISCONTINUED Price: Call Us |
| 8 |
530015828 |
Washer-Flat Price: $1.99 |
| 9 |
22-7670 |
DISCONTINUED Price: Call Us |
| 9 |
530055729 |
Spacer-Flywheel Price: $7.99 |
| 10 |
22-7640 |
DISCONTINUED Price: Call Us |
| 10 |
530015496 |
Screw Price: $1.99 |
| 11 |
18-5540 |
RETAINER-STOP, SLEEVE Price: $18.31 |
| 11 |
530055681 |
Plate-Baffle Price: $2.99 |
| 12 |
22-7620 |
Screw, Lever to Shaft Price: Call Us |
| 12 |
530015882 |
Screw Price: $1.99 |
| 13 |
22-7610 |
DISCONTINUED Price: Call Us |
| 14 |
24-2610 |
DISCONTINUED Price: Call Us |
| 14 |
545024810 |
Kit-Clutch-Fan/Housing Price: $17.99 |
| 15 |
3255-10 |
WASHER-LOCK / EXT Price: $0.25 |
| 15 |
530027569 |
Handle-Starter Price: $1.99 |
| 16 |
32104-109 |
SCREW-HWH This part replaces 32104-10. Price: $0.87 |
| 16 |
530069232 |
Kit-Rope Price: $3.99 |
| 17 |
22-7570 |
DISCONTINUED Price: Call Us |
| 17 |
530019182 |
Grommet-Ignition Module Price: $1.99 |
| 18 |
22-7580 |
Rocker Shaft Price: Call Us |
| 18 |
530016386 |
Screw-(f/hsg to shrd) Price: $5.99 |
| 19 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 20 |
24-2570 |
DISCONTINUED Price: Call Us |
| 20 |
530016357 |
Screw Price: $1.99 |
| 21 |
3219-1 |
NUT-HEX Price: $0.47 |
| 21 |
530054137 |
Ignition Module Price: $32.99 |
| 22 |
22-7790 |
Speed Adjusting Lever Price: Call Us |
| 22 |
530012510 |
Assy-Crankcase Price: $11.99 |
| 23 |
22-7800 |
DISCONTINUED Price: Call Us |
| 23 |
530055728 |
Bearing-Outer Price: $6.99 |
| 24 |
22-7740 |
DISCONTINUED Price: Call Us |
| 24 |
530019264 |
Seal-Crankcase Price: $2.99 |
| 25 |
22-7730 |
DISCONTINUED Price: Call Us |
| 25 |
530032125 |
Bearing-Inner Price: $11.99 |
| 26 |
3219-14 |
NUT-HEX Price: $0.25 |
| 26 |
530015934 |
Screw Price: $1.99 |
| 27 |
3291-12 |
Screw, High Speed Stop Price: Call Us |
| 27 |
530071486 |
Seal-Cylinder (kit) Price: $5.99 |
| 28 |
281-7 |
CAP-PIPE Price: $3.69 |
| 29 |
24-2600 |
Bracket, Bumper Screw Price: Call Us |
| 29 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 30 |
24-2580 |
DISCONTINUED Price: Call Us |
| 31 |
24-2590 |
Screw, Bumper Price: Call Us |
| 31 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 33 |
530071486 |
Gasket-Carb. Adapt.(kit) Price: $5.99 |
| 34 |
530057634 |
Adapter-Carburetor Price: $8.99 |
| 35 |
530016309 |
Screw Price: $1.99 |
| 36 |
530071633 |
Kit-Carburetor Ass'y. (C1U-W13A) Price: $32.99 |
| 37 |
530071718 |
Kit-Choke Lever Price: $8.99 |
| 38 |
530055680 |
Air Box Price: $2.99 |
| 39 |
530016429 |
Screw Price: $1.99 |
| 40 |
530047932 |
Air Filter Foam Price: $1.99 |
| 41 |
530055679 |
Air Filter Cover Price: $1.99 |
| 42 |
530015957 |
Screw Price: $1.99 |
| 43 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 44 |
530071486 |
Gasket-Carburetor(kit) Price: $5.99 |
| 45 |
530055547 |
Assy-Throttle Cable Price: $5.99 |
| 46 |
952030249 |
Spark Plug(RCJ-6Y) Price: $3.99 |
| 47 |
530012500 |
Cylinder Price: $12.99 |
| 48 |
530015953 |
Screw Price: $1.99 |
| 49 |
530071486 |
Gasket-Muffler (kit) Price: $5.99 |
| 51 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 52 |
530071544 |
Kit-Spark Arrestor Price: $6.99 |
| 53 |
530015241 |
Screw Price: $1.99 |
| 54 |
530095992 |
Assy-Pick-up Price: $5.99 |
| 55 |
530069247 |
Kit-Fuel Line(small) Price: $3.99 |
| 56 |
530069216 |
Kit-Fuel Line(large) Price: $3.99 |
| 57 |
530023877 |
Fitting-Fuel Line Price: $1.99 |
| 58 |
530016103 |
Clip-Retainer Price: $1.99 |
