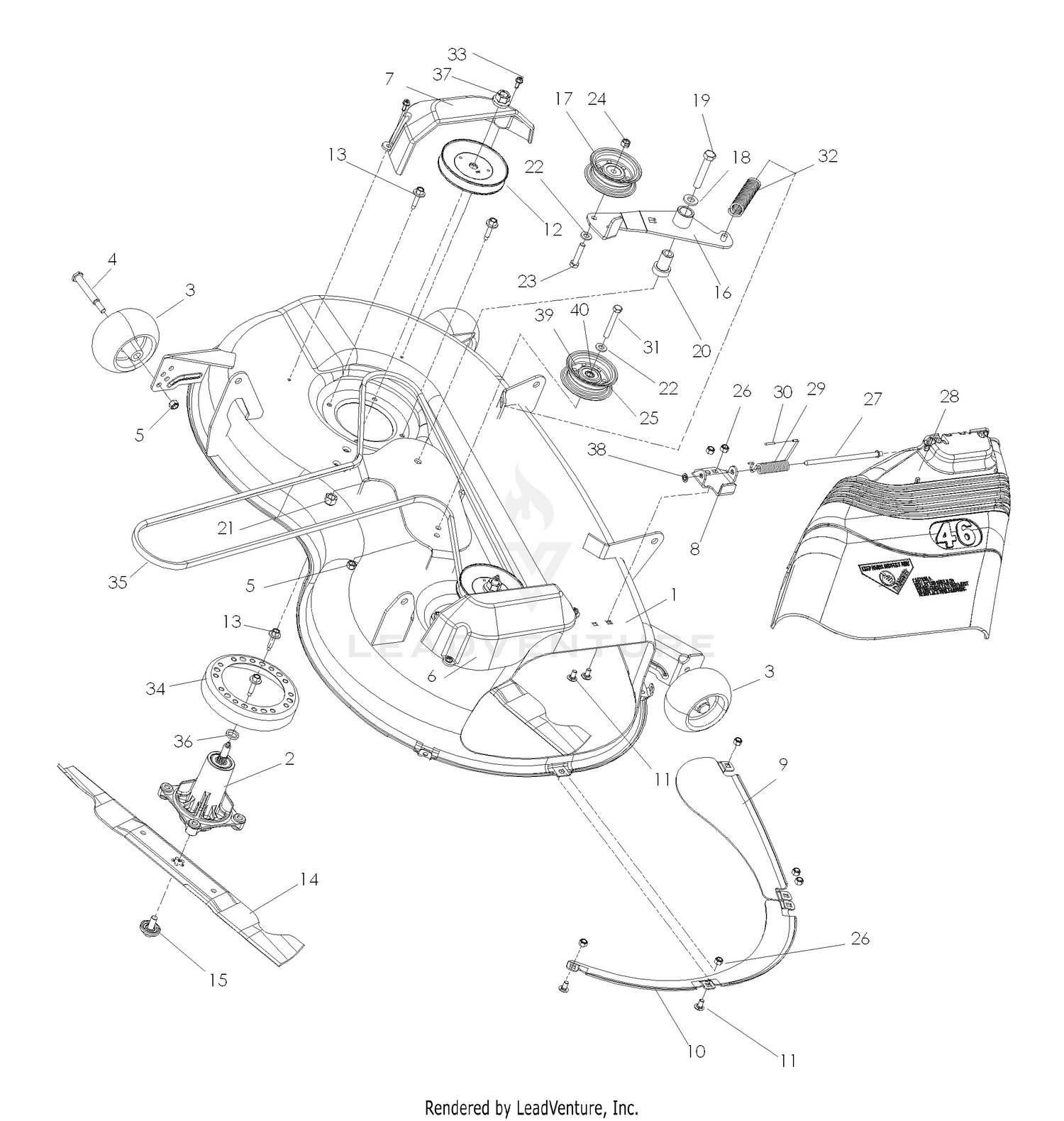

46" Cutting Deck

46" Cutting Deck

Parts (78)

RefPart NumberDescription
1 539131485 DECK W/DECALS 46 ORANGE Price: $699.99
1 67-3420 NO. 3 PIPE ASSEMBLY Price: $83.77
2 587820301 KIT.MANDREL.GREASEABLE.TALL This part replaces 539112057. Price: $49.99
2 67-3430 NUT Price: $4.57
3 532133957 WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99
3 70-8700 FUEL RETURN PIPE Price: $92.21
4 596434404 Bolts This part replaces 539107608. Price: $4.99
4 67-3440 GASKET Price: $7.12
5 110-3996 GAUGE-OIL LEVEL This part replaces 70-8880. Price: $108.61
5 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
6 532405506 COVER.MANDREL.RH.46" Price: $19.99
6 93-3489 NOZZLE & HOLDER ASSY This part replaces 67-3380. Price: $570.51
7 532405507 COVER.MANDREL.LH.46" Price: $19.99
7 67-3390 GASKET Price: $4.67
8 110-3994 GUIDE This part replaces 70-8870. Price: $15.67
8 532192557 BRKT.DEFLECTOR.38"2005+ Price: $7.99
9 531170601 SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99
9 67-2300 GASKET Price: $3.40
10 531170701 SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99
10 67-2290 COVER Price: $18.48
11 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
11 67-2340 BOLT W/WASHER Price: $2.19
12 532173436 PULLEY MANDREL This part replaces 539112171. Price: $14.99
12 56-0020 EXPANSION PLUG Price: $14.38
13 584953901 BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99
13 67-2280 GASKET Price: $8.62
14 67-2230 OIL SEAL Price: $83.03
15 532193003 BOLT.WASHER.ASM.7/16-2 Price: $6.99
15 67-2270 CASE Price: $79.65
16 539110217 DECK IDLER ARM WELDMENT Price: $79.99
16 67-2330 BOLT Price: $2.25
17 43-2570 GASKET-PUMP Price: $15.12
17 539110316 PULLEY, IDLER, SHORT Price: $12.99
18 43-2550 FILTER-PUMP Price: $23.30
18 595086801 Washers This part replaces 539990250. Price: $2.99
19 43-2560 GASKET-PUMP Price: $23.14
19 539101332 HCS 1/2C X 2 3/4 Price: $4.99
20 43-2580 MAGNET-PUMP Price: $12.24
20 539101231 IDLER SPINDLE Price: $11.99
21 53-8150 PUMP-FUEL Price: $680.19
21 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
22 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99
22 67-2440 DISCONTINUED Price: Call Us
23 596583901 Bolts This part replaces 539990730. Price: $2.99
23 67-2430 BRACKET Price: $156.42
24 595305901 Nuts This part replaces 539990546. Price: $2.99
24 67-2390 PLUG Price: $5.06
25 539110317 IDLER PULLEY ASM Price: $89.99
25 67-2350 PLUG Price: $2.53
26 596583702 Nuts This part replaces 539990717. Price: $2.99
26 67-2360 DISCONTINUED Price: Call Us
27 595297001 Rods This part replaces 539110462. Price: $4.99
27 67-2380 BUSHING Price: $3.80
28 532405357 SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99
28 56-1230 OIL FILTER SHAFT Price: $14.76
29 539107609 TORSION SPRING This part replaces 539110328. Price: $4.99
30 42-9650 NUT-HEX, JAM Price: $0.70
30 532105304 CAP-SLEEVE LT This part replaces 539107627. Price: $3.99
31 596434201 Bolts This part replaces 539990637. Price: $3.99
31 67-4340 SCREEN ASSEMBLY Price: $60.41
32 539101977 SPRING Price: $11.99
32 67-2370 BUSHING Price: $4.65
33 42-7190 DISCONTINUED Price: Call Us
33 532137729 SCREW.1/4-20X5/8 This part replaces 539107631. Price: $3.99
34 531167701 SERVICE KIT MANDREL STRIPPER This part replaces 539107518. Price: $6.99
34 67-2260 IDLER SHAFT Price: $45.97
35 539117811 BELT Price: $59.99
35 56-0220 DISCONTINUED Price: Call Us
36 532187690 WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99
36 67-2210 PLUG Price: $3.72
37 56-0100 PLUG-DRAIN Price: $6.55
37 596134801 Nuts This part replaces 539107590. Price: $1.00
38 532110452 NUT PUSH M This part replaces 539107626. Price: $2.99
39 539110080 PULLEY, IDLER Price: $19.99
39 67-3370 BOLT W/WASHER Price: $3.08
40 108-3841 FILTER-OIL This part replaces 67-4330. Price: $10.81
41 75-5020 DISCONTINUED Price: Call Us
42 67-3400 NO. 1 PIPE ASSEMBLY Price: $228.43
