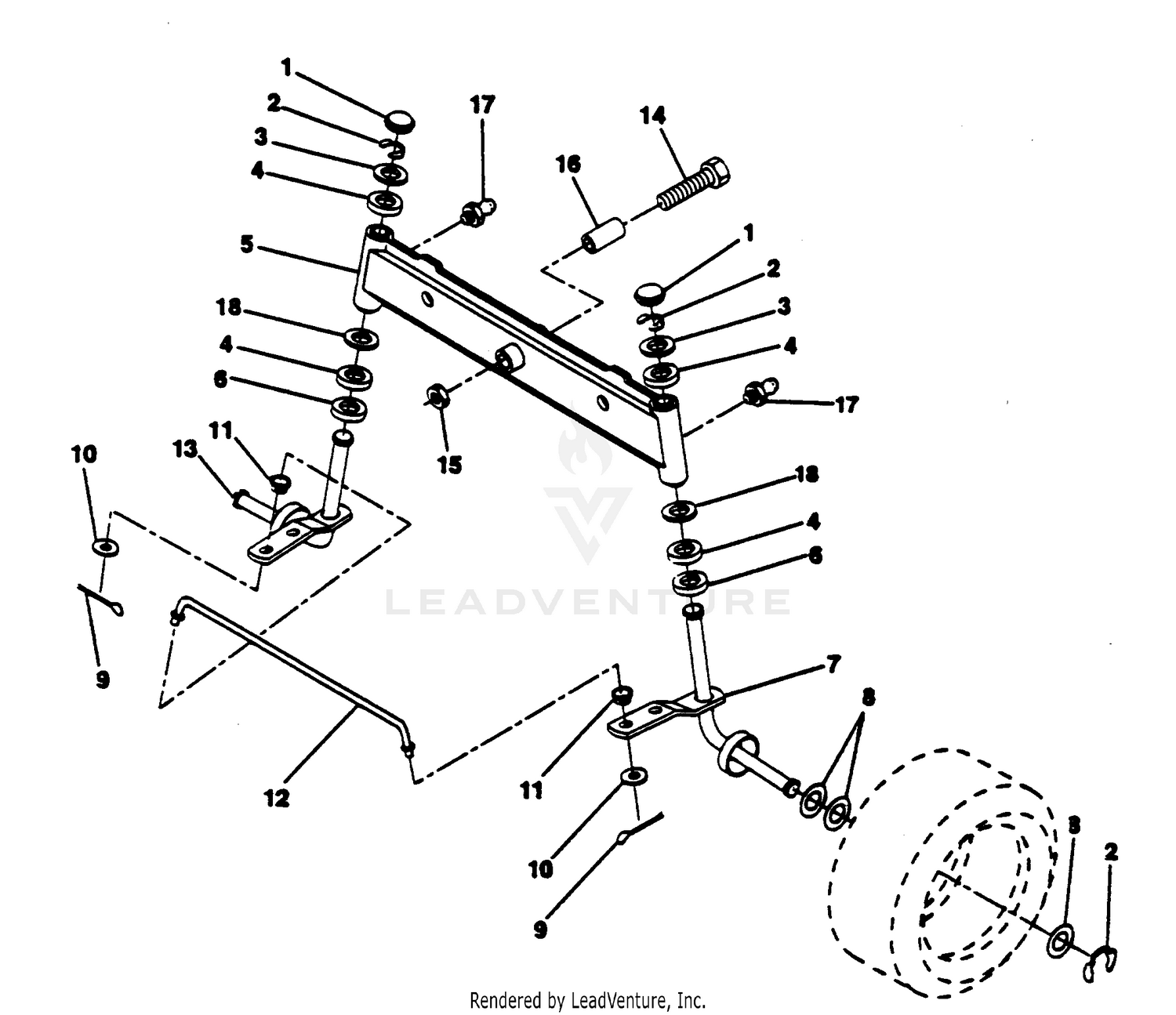

| Ref | Part Number | Description |
|---|
| 1 |
532121232 |
Cap, Spindle (AYP part number) Price: $1.99 |
| 2 |
812000029 |
Ring, Clip (AYP part number) Price: $1.99 |
| 3 |
120-0404 |
BRACKET-HIGH HOC (LH) Price: $71.73 |
| 3 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number) Price: $1.99 |
| 4 |
120-0405 |
BRACKET-HIGH HOC (RH) Price: $71.73 |
| 4 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 5 |
119-0626 |
SHIM-ROLLER Price: $3.23 |
| 5 |
532142033 |
Axle, Front (AYP part number) Price: $59.99 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
532137062 |
Spindle, R.H. Asm. Price: $21.99 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $1.99 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
532126847 |
Bushing (AYP part number) Price: $2.99 |
| 12 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $12.99 |
| 13 |
532137061 |
Spindle, L.H. Asm. (AYP part number) Price: $23.59 |
| 14 |
874011056 |
Bolt Hex 5/1-11 x 3-1/2 (AYP part number) Price: $4.99 |
| 15 |
583612401 |
LOCKNUT M (1 2) (5 2) This part replaces 873901000. Price: $2.99 |
| 16 |
532110438 |
Spacer, Bearing Axle (AYP part number) Price: $5.99 |
| 17 |
532124836 |
Fitting, Grease (AYP part number) Price: $5.99 |
