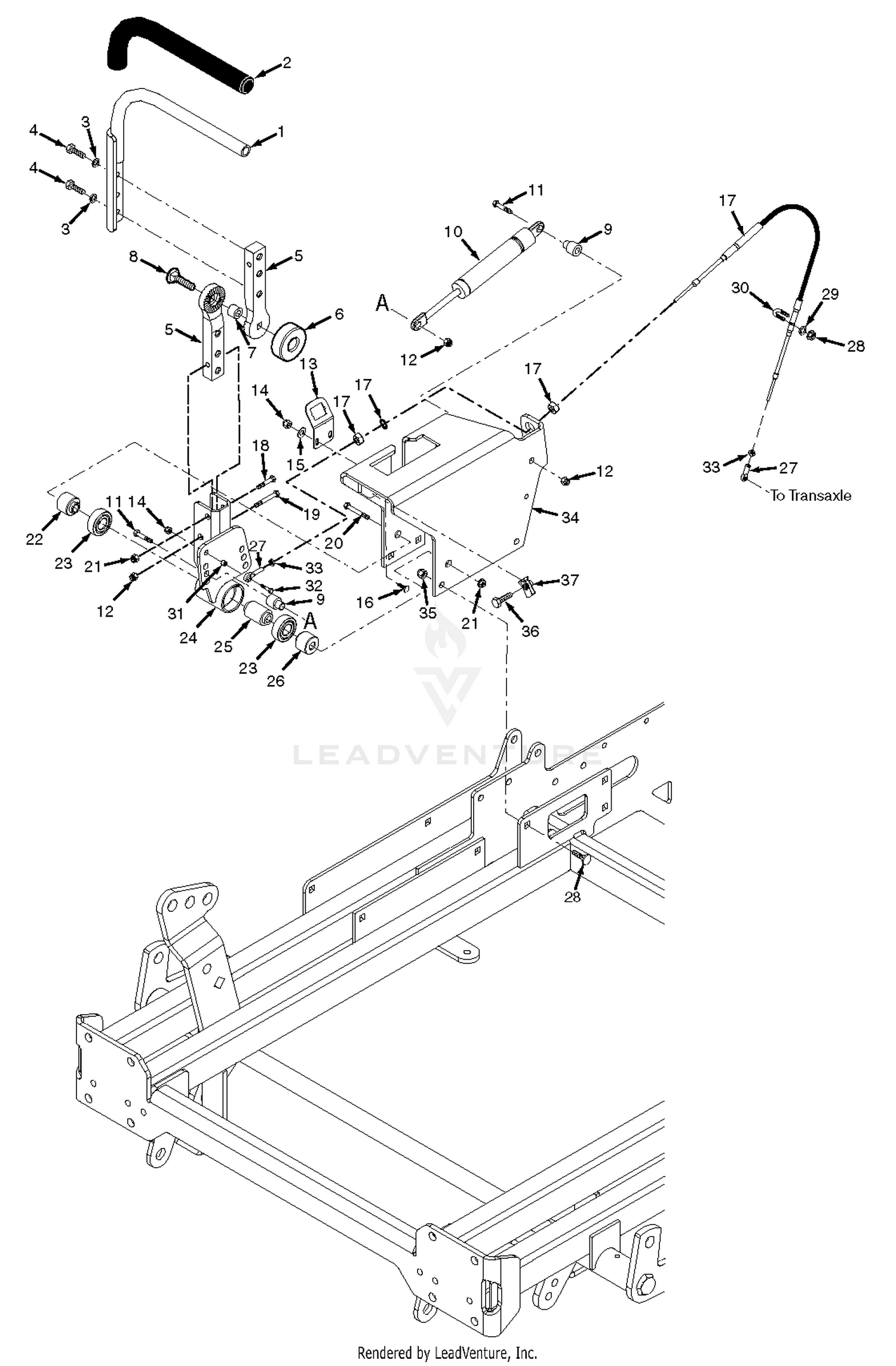

| Ref | Part Number | Description |
|---|
| 1 |
462402 |
Handle Bar w/Grip, LH Price: Call Us |
| 1 |
462403 |
Handle Bar w/Grip, RH Price: Call Us |
| 2 |
484376 |
Grip, Control Handle Price: Call Us |
| 3 |
04030-03 |
Lockwasher, 5/16-" Spring Price: Call Us |
| 4 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1' Price: Call Us |
| 5 |
483238 |
Pivot, Control Lever Price: Call Us |
| 6 |
483269 |
Knob, Control Handle Price: Call Us |
| 7 |
483250 |
Spacer, Rubber Price: Call Us |
| 8 |
04003-05 |
Bolt, Carriage 3/8-16 x 1-1/2" Price: Call Us |
| 9 |
43602 |
Spacer Price: Call Us |
| 10 |
484193 |
Damper Price: Call Us |
| 11 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2" Price: Call Us |
| 12 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 13 |
425389 |
Bracket, Operator Presence Switch Price: Call Us |
| 14 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 15 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 16 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 17 |
484114 |
Control Cable, Hydro Price: Call Us |
| 18 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2" Price: Call Us |
| 19 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2" Price: Call Us |
| 20 |
04001-100 |
Bolt, Hex Head 3/8-16 x 6" Price: Call Us |
| 21 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 22 |
43607 |
Spacer, Controls Price: Call Us |
| 23 |
48224 |
Bearing Price: Call Us |
| 24 |
452406 |
Pivot Weldment, Control Arm LH Price: Call Us |
| 24 |
452407 |
Pivot Weldment, Control Arm RH Price: Call Us |
| 25 |
43600 |
Spacer, Bearing Price: Call Us |
| 26 |
43823 |
Spacer, Controls Price: Call Us |
| 27 |
484040 |
Rod End, 1/4-28 RH Thread Price: Call Us |
| 28 |
04020-31 |
Nut, Jam 5/16-24 UNF-2B Price: Call Us |
| 29 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 30 |
04100-04 |
U-Bolt, 5/16-24 Price: Call Us |
| 31 |
43827 |
Spacer Price: Call Us |
| 32 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 33 |
04020-22 |
Nut, Jam 1/4-28 UNF Price: Call Us |
| 34 |
462560 |
Bracket Weldment, Control Lever LH w/Decal Price: Call Us |
| 34 |
462561 |
Bracket Weldment, Control Lever RH w/Decal Price: Call Us |
| 35 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 36 |
04107-04 |
Bolt, Hex Head 3/8-16 x 2" Special Price: Call Us |
