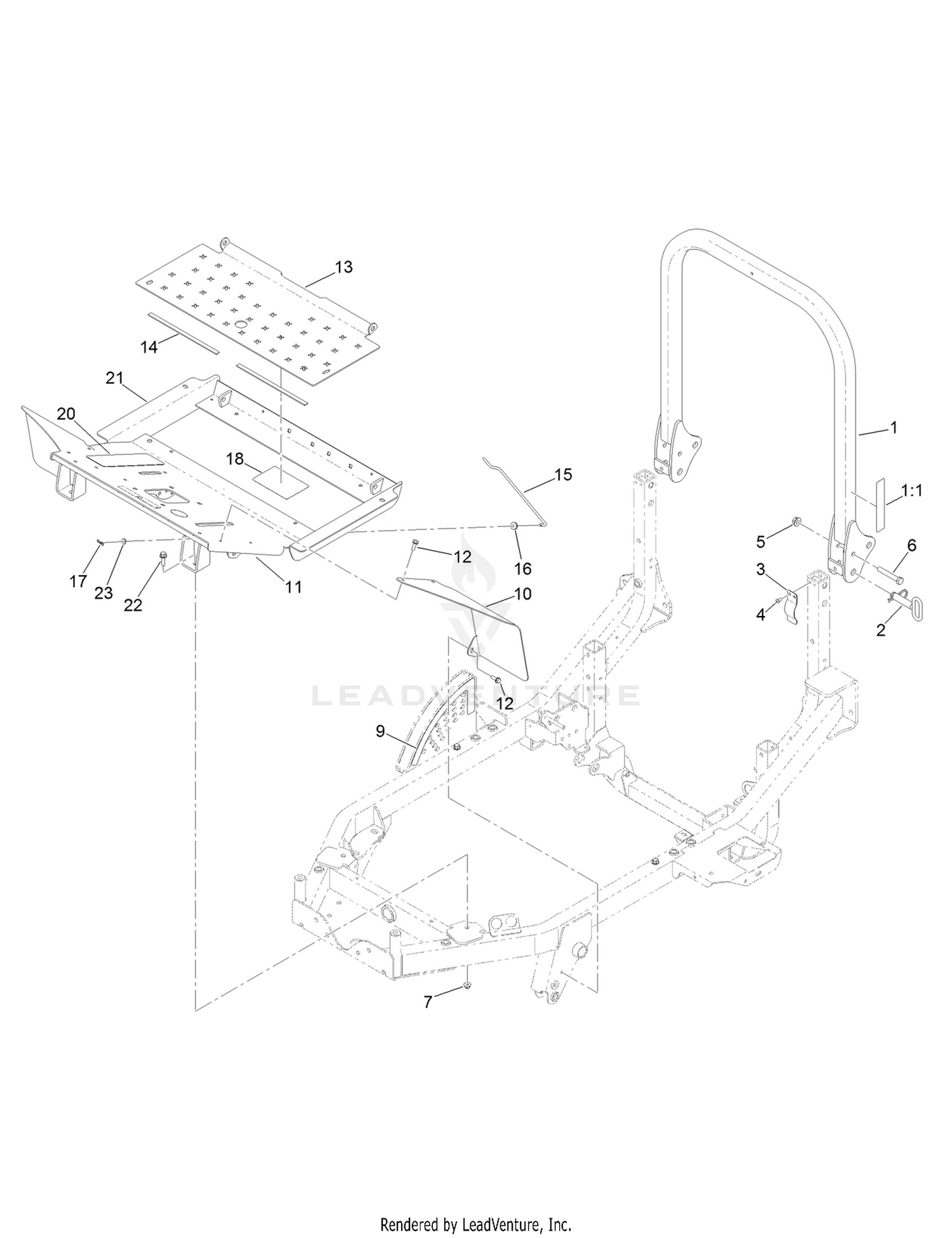

Platform and Roll-Over Protection System Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-6520 | ROPS ASM Price: $445.70 |
| 2 | 161-4477 | PIN-ROPS, ASM This part replaces 103-4553. Price: $31.99 |
| 3 | 110-5696 | SPRING-LEAF Price: $43.16 |
| 4 | 3290-412 | RIVET-BLIND Price: $3.19 |
| 5 | 32128-23 | NUT-HF Price: $1.51 |
| 6 | 112-7264 | SCREW-HH Price: $3.11 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 115-0492 | DECAL-HOC Price: $13.88 |
| 10 | 117-3203-03 | FENDER-FRONT, LH Price: $64.49 |
| 11 | 117-3202-03 | FENDER-FRONT, RH Price: $64.49 |
| 12 | 32144-41 | SCREW-TAPTITE Price: $4.79 |
| 13 | 117-3204-03 | PLATE-FLOOR Price: $158.21 |
| 14 | 115-8827 | FOAM-STRIP Price: $9.07 |
| 15 | 110-9847 | ROD-PROP Price: $29.42 |
| 16 | 237-141 | GROMMET-RUBBER Price: $2.39 |
| 17 | 119-1414 | PIN-COTTER, LOCKING Price: $0.54 |
| 18 | 112-1461 | DECAL-ROUTING, BELT Price: $28.54 |
| 20 | 71-0440 | ABRASIVE-PEDAL Price: $15.80 |
| 21 | 119-1398-01 | PLATFORM Price: $590.01 |
| 22 | 3234-24 | SCREW-HHF Price: $3.19 |
