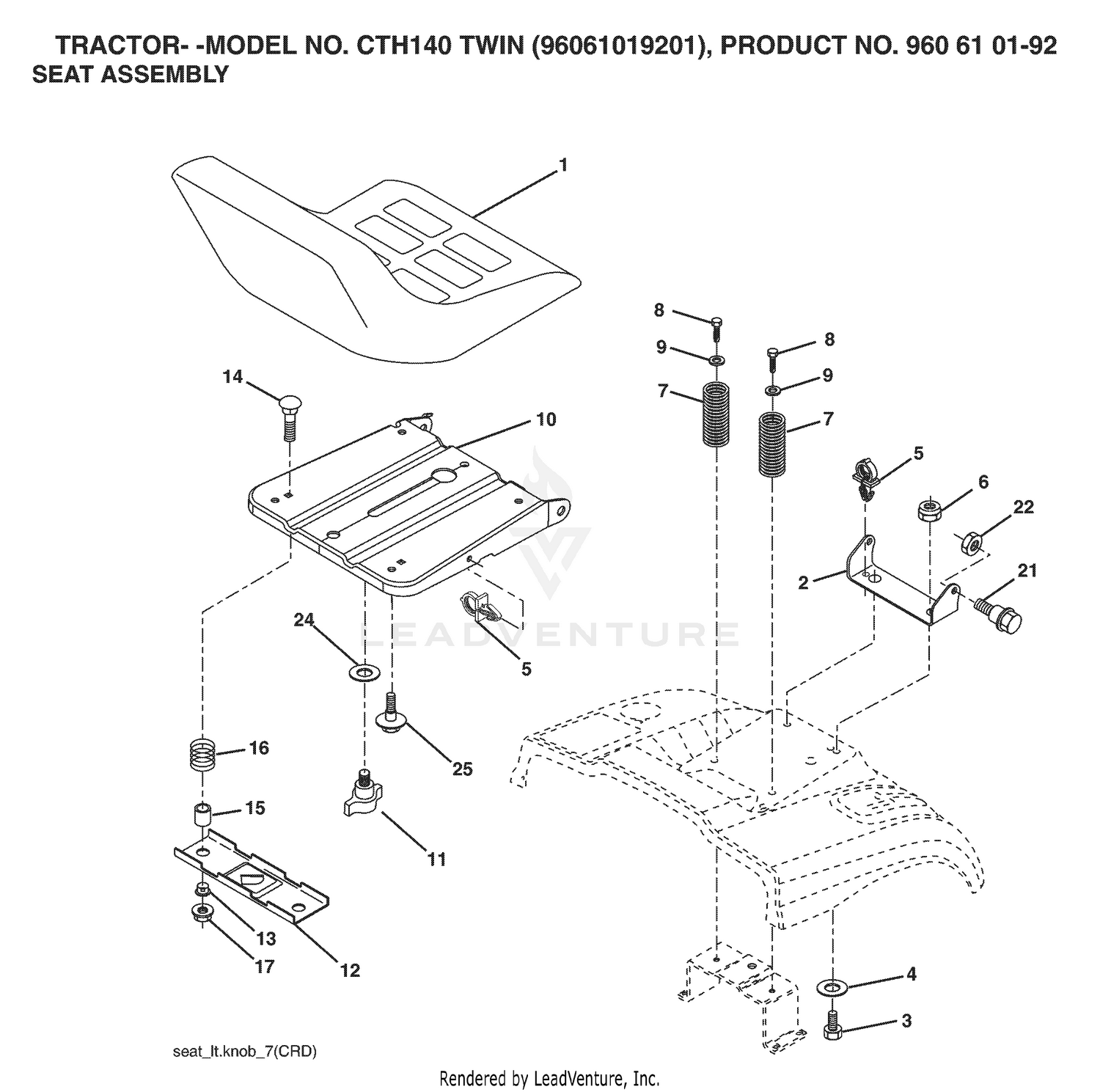

| Ref | Part Number | Description |
|---|
| 1 |
110-5255 |
BUMPER-BASE, SEAT Price: $29.06 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532188715. Price: $219.99 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
110-8971 |
LATCH Price: $15.79 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
98-0917 |
ROD-PROP Price: $51.33 |
| 8 |
108-1757 |
COVER-SEATBASE Price: $318.43 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
125-2122-03 |
SEAT BASE ASM Price: $449.44 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $17.99 |
| 10 |
99-7411 |
POINT-POWER Price: $30.69 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 11 |
99-7416 |
CAP Price: $6.64 |
| 12 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $8.99 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
125-2121-03 |
HINGE-SEATBASE Price: $45.67 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
104-4821 |
SPRING-TORSION Price: $6.26 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 18 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 19 |
240-12 |
GROMMET Price: $28.58 |
| 20 |
127-2711-03 |
BRACKET-HARNESS Price: $28.84 |
| 21 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
