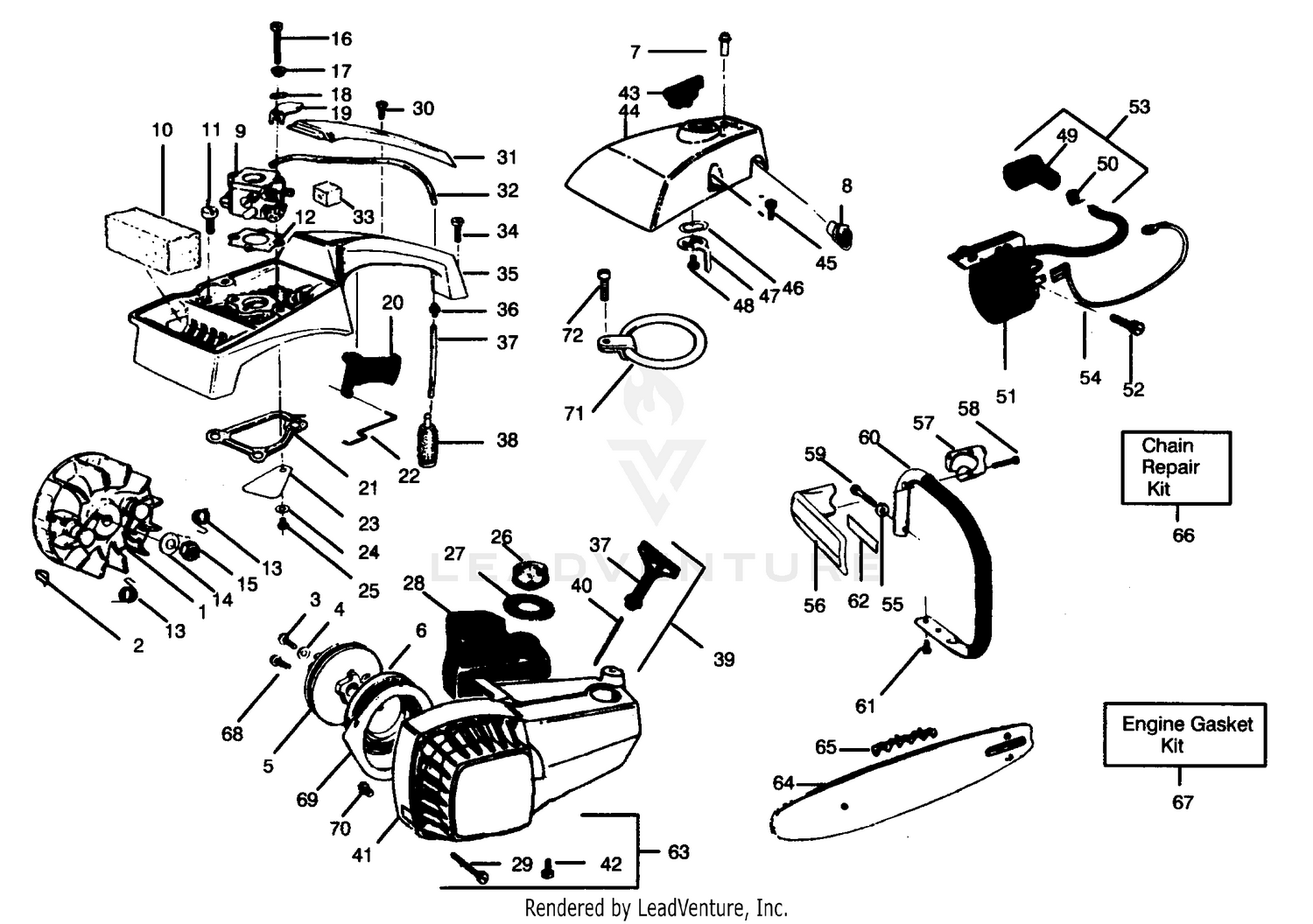

| Ref | Part Number | Description |
|---|
| 1 |
39-2130 |
RETAINER-SPRING Price: $23.51 |
| 1 |
530047198 |
Flywheel Ass'y. Price: $23.99 |
| 2 |
39-2140 |
SPRING Price: $24.34 |
| 2 |
530015126 |
Flywheel Key Price: $1.99 |
| 3 |
33-4990 |
POPPET Price: $11.08 |
| 3 |
530016141 |
Screw This part replaces 530015036. Price: $1.99 |
| 4 |
530015123 |
Washer Price: $1.99 |
| 5 |
530069288 |
Starter Pulley Price: $4.99 |
| 6 |
545008007 |
SPRING-STARTER This part replaces 530042023. Price: $5.23 |
| 7 |
530038646 |
Grommet-Idle-190 only Price: $1.99 |
| 8 |
530038571 |
Grommet-Mixture-190 only Price: $1.99 |
| 9 |
530069772 |
Carburetor Kit w/Limiter Caps Price: $47.76 |
| 10 |
33-4960 |
DISCONTINUED Price: Call Us |
| 10 |
530023791 |
Air Filter Price: $2.99 |
| 11 |
33-4950 |
DISCONTINUED Price: Call Us |
| 11 |
530015242 |
Screw Price: $1.99 |
| 12 |
530019045 |
Carburetor Gasket Price: $1.99 |
| 13 |
530023817 |
Starter Dog Spring Price: $1.99 |
| 14 |
39-2080 |
TOW VALVE ASM This part replaces 39-2110. Price: $188.82 |
| 14 |
530015127 |
Flywheel Washer Price: $1.99 |
| 15 |
530626605 |
Nut Price: $1.99 |
| 16 |
530015245 |
Screw Price: $1.99 |
| 17 |
32151-63 |
DISCONTINUED Price: Call Us |
| 17 |
530023865 |
Spacer Price: $2.99 |
| 18 |
530015254 |
Wave Washer Price: $1.99 |
| 19 |
530023805 |
Choke Shutter Price: $0.99 |
| 20 |
530029826 |
Throttle Trigger Price: $1.99 |
| 21 |
530019252 |
Gasket This part replaces 530019236. Price: $1.99 |
| 22 |
530026606 |
Throttle Wire Price: $0.99 |
| 23 |
530023366 |
Reed Valve, 180 Price: $1.99 |
| 23 |
530036331 |
Reed Valve, 190 Price: $1.99 |
| 24 |
530023367 |
Washer, 180 Price: Call Us |
| 24 |
530036332 |
Washer, 190 Price: $1.99 |
| 25 |
33-4880 |
DISCONTINUED Price: Call Us |
| 25 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 26 |
33-4870 |
DISCONTINUED Price: Call Us |
| 26 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 27 |
49-2910 |
DISCONTINUED This part replaces 33-5030. Price: Call Us |
| 27 |
530019093 |
Seal Price: $1.99 |
| 28 |
530010775 |
Fuel Tank Ass'y. (Incl 26, 27 & 38) Price: Call Us |
| 29 |
33-3780 |
DISCONTINUED Price: Call Us |
| 29 |
530015707 |
Screw This part replaces 530015649. Price: $1.99 |
| 30 |
32120-74 |
RING-SNAP Price: $0.54 |
| 30 |
530015247 |
Screw Price: $1.99 |
| 31 |
33-3760 |
DISCONTINUED Price: Call Us |
| 31 |
530024967 |
Handle Cover Price: $8.99 |
| 32 |
530069216 |
Line Kit Price: $3.99 |
| 33 |
33-3750 |
RACE-INNER Price: $77.27 |
| 33 |
530023373 |
Throttle Wire Boot Price: $1.99 |
| 34 |
252-95 |
BEARING-NEEDLE Price: $19.11 |
| 34 |
530015239 |
Screw Price: $1.99 |
| 35 |
530037774 |
Handle & Carb. Hsg., 190 Price: $14.99 |
| 35 |
530069848 |
Handle & Carb Hsg This part replaces 530036950. Price: $17.65 |
| 36 |
530023877 |
Fuel Line Fitting Price: $1.99 |
| 37 |
530027569 |
Starter Handle-180 Price: $1.99 |
| 38 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 39 |
33-3770 |
DISCONTINUED Price: Call Us |
| 39 |
530026791 |
Ass'y Rope & Handle Price: $6.99 |
| 40 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 40 |
530069232 |
Rope Kit Price: $3.99 |
| 41 |
530069602 |
Fan Hsg. Kit Price: $26.07 |
| 42 |
33-3720 |
WASHER Price: $11.87 |
| 42 |
530015650 |
Screw Price: $1.99 |
| 43 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 43 |
530023807 |
Choke Knob Price: $1.99 |
| 44 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 44 |
530038161 |
Carb. Cover, 190 Price: $3.33 |
| 44 |
530071304 |
Kit-Carb. Cover This part replaces 530024965. Price: $12.99 |
| 45 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 45 |
530015168 |
Screw Price: $1.46 |
| 46 |
33-3730 |
DISCONTINUED Price: Call Us |
| 46 |
530015147 |
Wave Washer Price: $1.99 |
| 47 |
39-2060 |
DISCONTINUED Price: Call Us |
| 47 |
530023806 |
Choke Lever Price: $1.99 |
| 48 |
530015407 |
Screw Price: $0.56 |
| 49 |
507475326 |
Spark Plug Boot Price: $3.99 |
| 49 |
70-1270 |
DISCONTINUED This part replaces 39-2120. Price: Call Us |
| 50 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 51 |
530069202 |
Ignition Module Kit Price: $43.74 |
| 52 |
530015816 |
Screw Price: $1.99 |
| 53 |
530039082 |
Spark Plug Lead Price: Call Us |
| 54 |
530039116 |
Switch Lead Price: $3.99 |
| 55 |
530015151 |
Washer Price: $1.99 |
| 56 |
530024091 |
Handguard-180 Price: $9.99 |
| 57 |
322-20 |
SCREW-HH Price: $1.79 |
| 57 |
530024049 |
Handguard Cap-180 Price: $0.52 |
| 58 |
530015509 |
Screw-180 Price: $1.99 |
| 59 |
322-19 |
SCREW-HH Price: $5.99 |
| 59 |
530001648 |
Screw Price: $1.99 |
| 60 |
530022351 |
FRONT HANDLE This part replaces 530010991. Price: $18.78 |
| 61 |
530015037 |
Screw Price: $1.99 |
| 62 |
530026849 |
Handguard Decal-180 Price: $0.12 |
| 63 |
530069286 |
Fan Hsg. Screw Kit Price: $4.99 |
| 64 |
952044366 |
PLN BAR 12" SN.050 3/8A041 Price: $29.83 |
| 64 |
952044368 |
BAR 14" .050 3/8 041 52DL This part replaces 952044367. Price: $14.99 |
| 64 |
952044370 |
BAR 16" .050 3/8 .041 56DL Price: $24.99 |
| 65 |
581562101 |
ACCY CHN 14" 52DL 3/8 .050 This part replaces 952051209. Price: $17.99 |
| 65 |
581562201 |
ACCY P/PP CHN 16" 56DL 3/8 This part replaces 952051211. Price: $19.99 |
| 65 |
952-051208 |
Chain, 12" Price: Call Us |
| 66 |
530-052073 |
Chain Repair Kit Price: Call Us |
| 67 |
530069401 |
Engine Gasket Kit (Incl. 12,21,27 & 33) Price: $11.99 |
| 68 |
530016080 |
Rope Retaining Screw Price: $1.99 |
| 69 |
530038312 |
Air Baffle-190 Price: $1.99 |
| 70 |
530001726 |
Screw-190 Price: $1.99 |
| 71 |
530069708 |
Rope Ring Kit (Incl. 72) Price: $3.40 |
