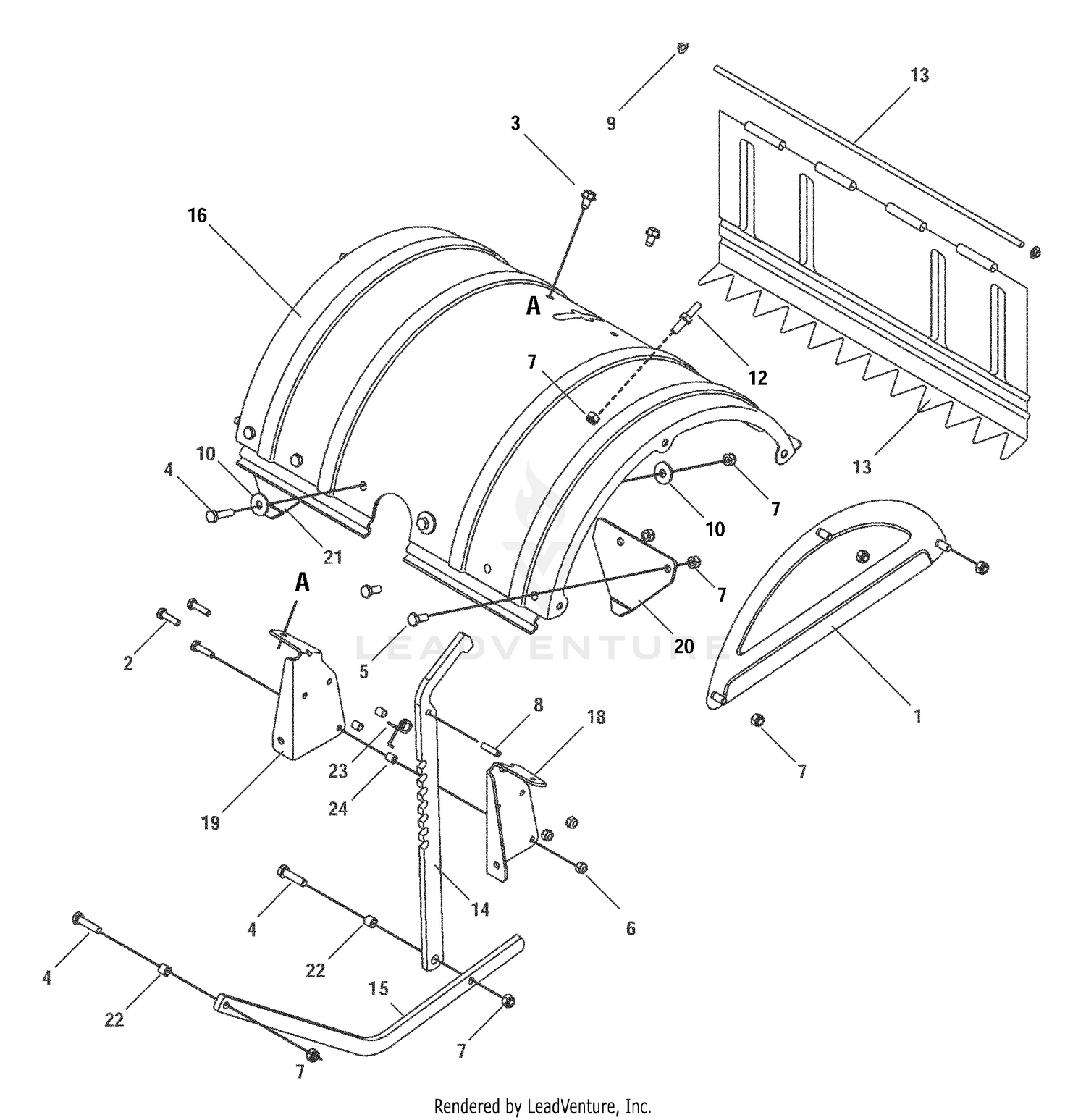

| Ref | Part Number | Description |
|---|
| 1 |
686-0044B |
END COVER ASSEMBLY This part replaces 686-0044A. Price: $59.71 |
| 2 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 3 |
710-0604A |
Self-tapping Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 4 |
710-0874 |
Hex Screw, 5/16-18, 1.25, Gr5 Price: $6.01 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
712-0324 |
Nut, Hex Lock, 1/4-20, Gr8, Nylon Price: $3.38 |
| 7 |
712-0429 |
Nut, Hex Lock, 5/16-18, Gr5, Nylon Price: $3.56 |
| 8 |
715-0108 |
Pin, Spring, 1/4 Dia x 1.00 Lg Price: $4.38 |
| 9 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 10 |
736-3089 |
FLAT WASHER .345X1.0X.100 Not Available Price: |
| 11 |
938-0849 |
Hex Screw, 5/16-18 x .75 This part replaces 738-0849. Price: $8.82 |
| 12 |
747-0432 |
Rod, Tiller Flap Price: $12.08 |
| 13 |
786-0113 |
Shield, Tine, Rear Price: $60.57 |
| 14 |
786-04171 |
Bar, Depth Price: Call Us |
| 15 |
786-04172 |
Bar, Drag, Depth Price: Call Us |
| 16 |
786-04179 |
Shield, Tine Price: Call Us |
| 17 |
786-04184 |
Bracket, Shield, Tine Price: Call Us |
| 18 |
786-04215 |
Bracket, Mounting, Bar, Depth, LH Price: Call Us |
| 19 |
786-04216 |
Bracket, Mounting, Bar, Depth, RH Price: Call Us |
| 20 |
786-04220 |
Bracket, Deflector, LH Price: Call Us |
| 21 |
786-04221 |
Bracket, Deflector, RH Price: Call Us |
| 22 |
GW-55088 |
BUSHING Not Available Price: |
| 23 |
732-04320 |
Torsion Spring This part replaces GW-9384. Price: $3.85 |
