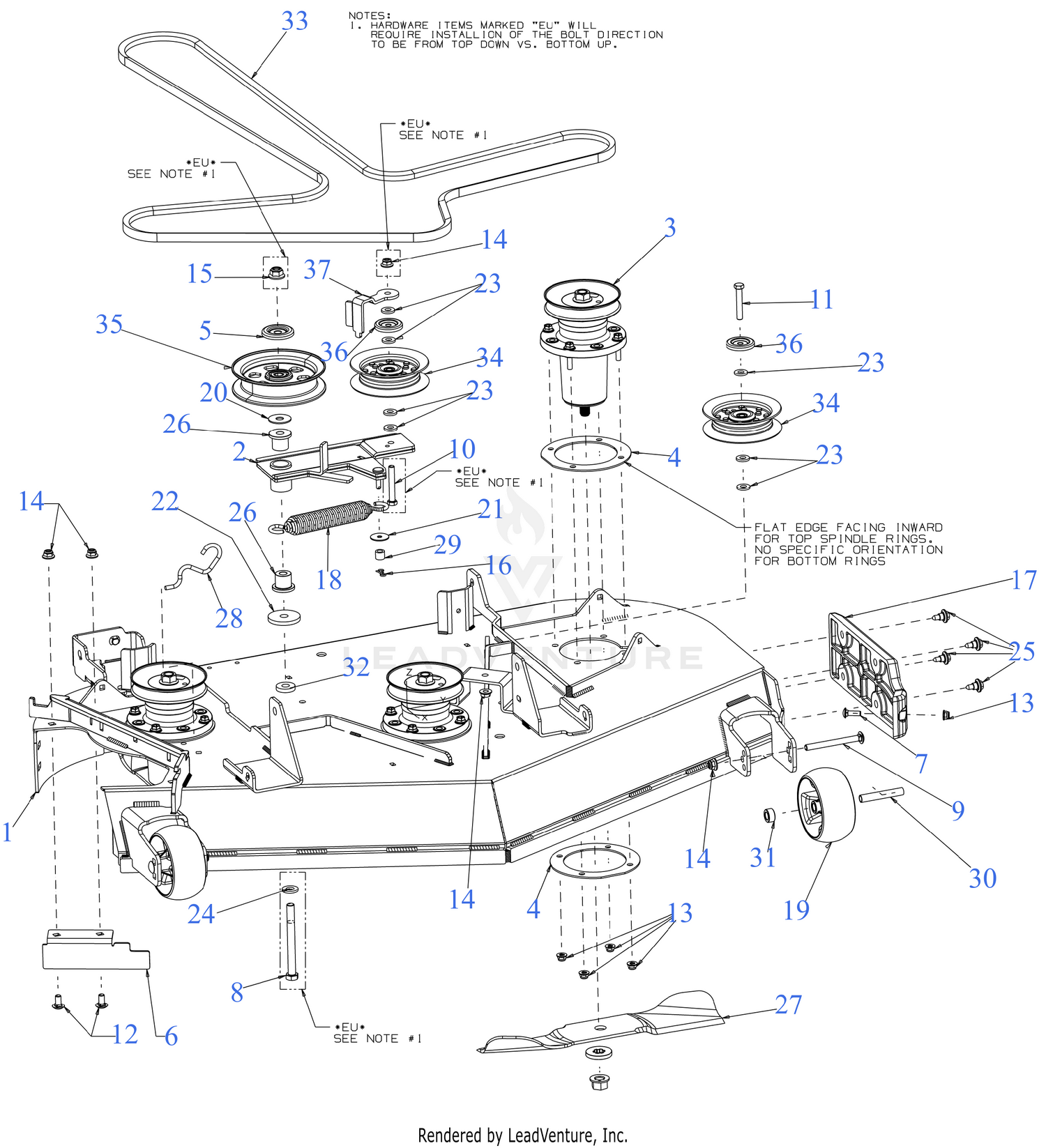

| Ref | Part Number | Description |
|---|
| 4 |
703E18464 |
SPINDLE PLATE Price: $29.67 |
| 5 |
703-24504 |
PULLEY CAP (.540 x 2.041 DIA) Price: $7.94 |
| 7 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 8 |
710-0382 |
BOLT-HEX 1/2-13X5.0 GR5 Price: $10.57 |
| 9 |
710-05384 |
CARRIAGE BOLT 3/8-16 x 4.00 GR5 Price: $4.69 |
| 10 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 11 |
710-3011 |
SCREW 3/8-16 x 2.25 GR5 Price: $6.49 |
| 12 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 13 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 14 |
712-04065 |
NUT Price: $3.68 |
| 15 |
712-04150 |
NUT Price: $3.74 |
| 16 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 17 |
731-13530 |
DECK SKID PLATE Price: $38.06 |
| 18 |
732-07946 |
SPRING (1.28" DIA x 8.5" LONG) Price: $30.86 |
| 19 |
734-04155 |
DECK WHEEL Price: $19.04 |
| 20 |
736-0208 |
WASHER .51 x 1.5 x .07 Price: $4.02 |
| 21 |
736-0362 |
FLAT WASHER .322 ID x 1.25 x .060 Price: $3.93 |
| 22 |
736-05642 |
FLAT WASHER .53"x2.125"x.25" Price: $6.20 |
| 23 |
736-3004 |
FLAT WASHER Price: $4.08 |
| 24 |
736-3019 |
FLAT WASHER .531X1.060X.134 Price: $5.45 |
| 25 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 26 |
741-06810 |
FLANGE BEARING Price: $8.34 |
| 27 |
02005017P-X |
BLADE-HI LIFT 17.0 (XTREME) Price: $27.15 |
| 27 |
742P04417-L |
LOW-LIFT 17" BLADE (48"DECK) Price: $25.44 |
| 28 |
747-10430 |
DECK SPRING HOOK Price: $3.04 |
| 29 |
750-05563 |
SPACER Price: $6.51 |
| 30 |
750-06199 |
SPACER .38X.49X3.05LG Price: $7.44 |
| 31 |
750-0664 |
SPACER-.505 1D Price: $6.01 |
| 32 |
Not |
Used This Part Is Not Used In This Application Price: Call Us Not Used |
| 33 |
754P06674 |
V-BELT B SEC x 141.50 Price: $88.31 |
| 34 |
756-05062 |
IDLER PULLEY 4.0 Price: $60.21 |
| 36 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
