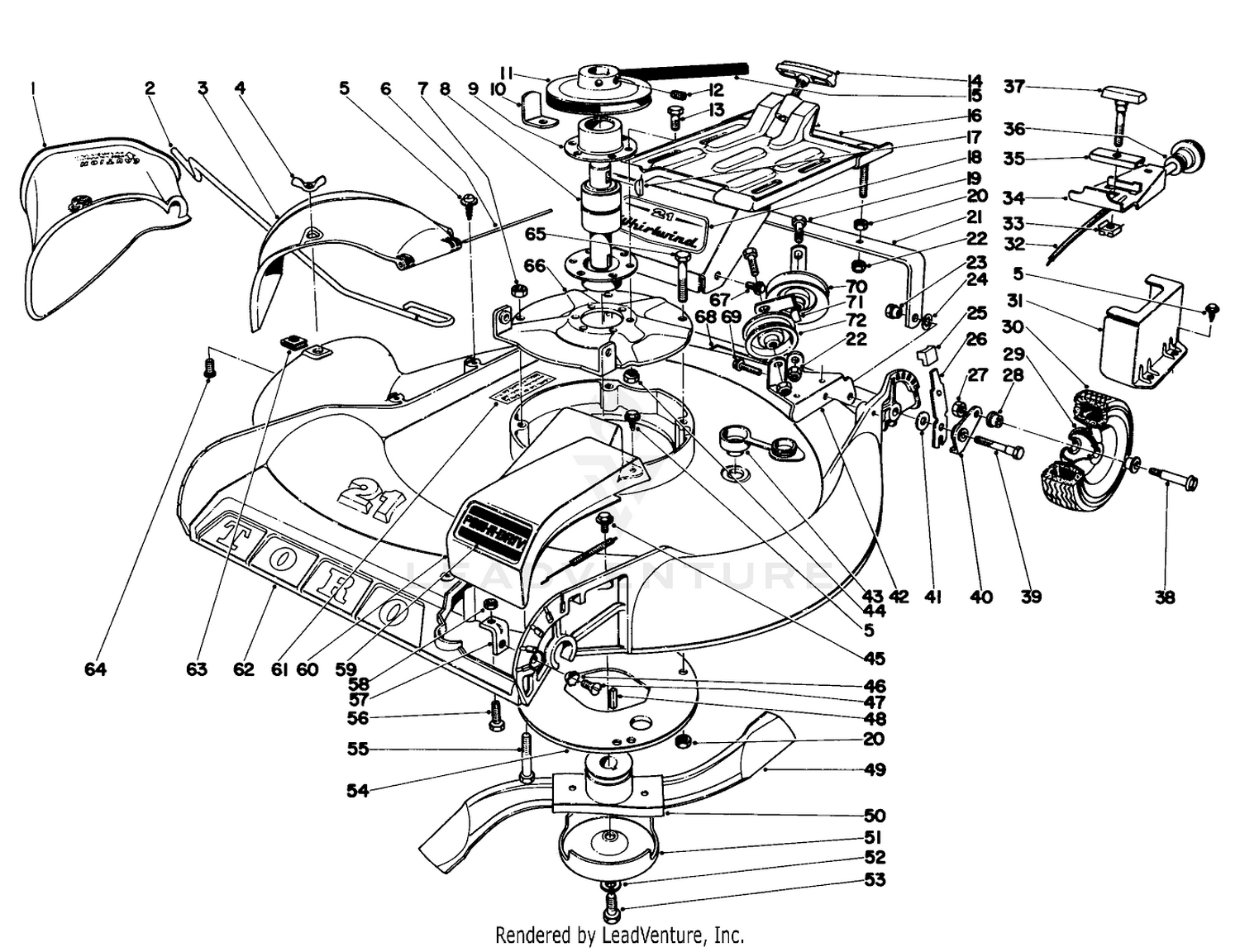

| Ref | Part Number | Description |
|---|
| 1 |
11-0460 |
BAG ATTACHMENT This part replaces 5-3442. Price: $118.20 |
| 2 |
3-2734 |
Bag Hanger Price: Call Us |
| 3 |
5-3311 |
Deflector Price: Call Us |
| 4 |
32103-14 |
NUT-WING SPECL Price: $12.99 |
| 5 |
32144-34 |
SCREW-HWHTF This part replaces 32104-75. Price: $4.19 |
| 6 |
3-2644 |
HINGE PIN Price: Call Us |
| 7 |
32128-13 |
NUT-HF Price: $1.79 |
| 8 |
3-5295 |
Spindle Bearing Price: Call Us |
| 9 |
3-1931 |
BEARING HOUSING Price: Call Us |
| 10 |
3-4815 |
Belt Retainer Price: Call Us |
| 11 |
3-4575 |
Pulley Price: Call Us |
| 12 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 13 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
3-7454 |
Clamp Assy. Price: Call Us |
| 15 |
3-4577 |
DISCONTINUED Price: Call Us |
| 16 |
3-6480 |
Adapter Plate Price: Call Us |
| 17 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 18 |
3-7313 |
Decal Price: Call Us |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 20 |
3217-7 |
NUT-HEX Price: $0.28 |
| 21 |
3-4568 |
Rear Support Price: Call Us |
| 22 |
32127-43 |
Nut Price: Call Us |
| 23 |
3-4566 |
Pivot Nut Price: Call Us |
| 24 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 25 |
5-0656 |
Knob Price: Call Us |
| 26 |
3-2637 |
Spring Arm Price: Call Us |
| 27 |
3296-5 |
NUT-HEX Price: $3.09 |
| 28 |
5-4504 |
DISCONTINUED This part replaces 3-5116. Price: Call Us |
| 29 |
3-7350 |
DISCONTINUED XREF Price: Call Us |
| 30 |
4-2600 |
DISCONTINUED Price: Call Us |
| 31 |
3-4573 |
Belt Guard Price: Call Us |
| 32 |
5-3438 |
DISCONTINUED Price: Call Us |
| 33 |
3290-198 |
Retaining Nut Price: Call Us |
| 34 |
3-5690 |
Angle Bracket Price: Call Us |
| 35 |
2-0330 |
Strap Price: Call Us |
| 36 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
2-0470 |
Clamp Assembly Price: Call Us |
| 38 |
99-5651 |
WHEEL BOLT & NUT This part replaces 3-2652. Price: $1.15 |
| 39 |
3-4567 |
Pivot Screw Price: Call Us |
| 40 |
3-2634 |
Pivot Arm Price: Call Us |
| 41 |
5-4460 |
WASHER-PIVOT This part replaces 3-5956. Price: $6.19 |
| 42 |
3-4574 |
Idler Bracket Price: Call Us |
| 43 |
6-4500 |
WASHOUT PLUG This part replaces 5-0655. Price: $6.61 |
| 44 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 45 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 46 |
3255-12 |
DISCONTINUED Price: Call Us |
| 47 |
32108-20 |
SCREW Price: $0.61 |
| 48 |
3-6168 |
KEY Price: $11.99 |
| 49 |
5-610 |
Blade Price: Call Us |
| 50 |
3-7287 |
DISCONTINUED Price: Call Us |
| 51 |
5-9530 |
ANTI-SCALP CUP This part replaces 3-6292. Price: $22.55 |
| 52 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 53 |
3-5246 |
SPECIAL SCREW Price: Call Us |
| 54 |
3-7626 |
DISCONTINUED Price: Call Us |
| 55 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 56 |
3-7281 |
DISCONTINUED Price: Call Us |
| 57 |
3-7278 |
DISCONTINUED Price: Call Us |
| 58 |
3218-1 |
NUT-JAM Price: $1.29 |
| 59 |
5-3303 |
Decal Price: Call Us |
| 60 |
5-3475 |
Belt Guard Price: Call Us |
| 61 |
104-8589 |
DECAL-WARNING This part replaces 3-7643. Price: $3.79 |
| 62 |
5-3440 |
Housing Price: Call Us |
| 63 |
3290-199 |
NUT-SPEED Price: $4.09 |
| 64 |
3290-133 |
SCREW Price: $1.19 |
| 66 |
3-9750 |
Mounting Plate Price: Call Us |
| 67 |
32140-33 |
Sems Screw Price: Call Us |
| 68 |
3-5586 |
Serial Number Plate Price: Call Us |
| 69 |
32140-14 |
Sems Screw Price: Call Us |
| 70 |
3-4243 |
IDLER PULLEY *R Price: Call Us |
| 71 |
3-4814 |
Belt Retainer Price: Call Us |
| 72 |
3-4244 |
PULLEY-IDLER Price: $24.99 |
