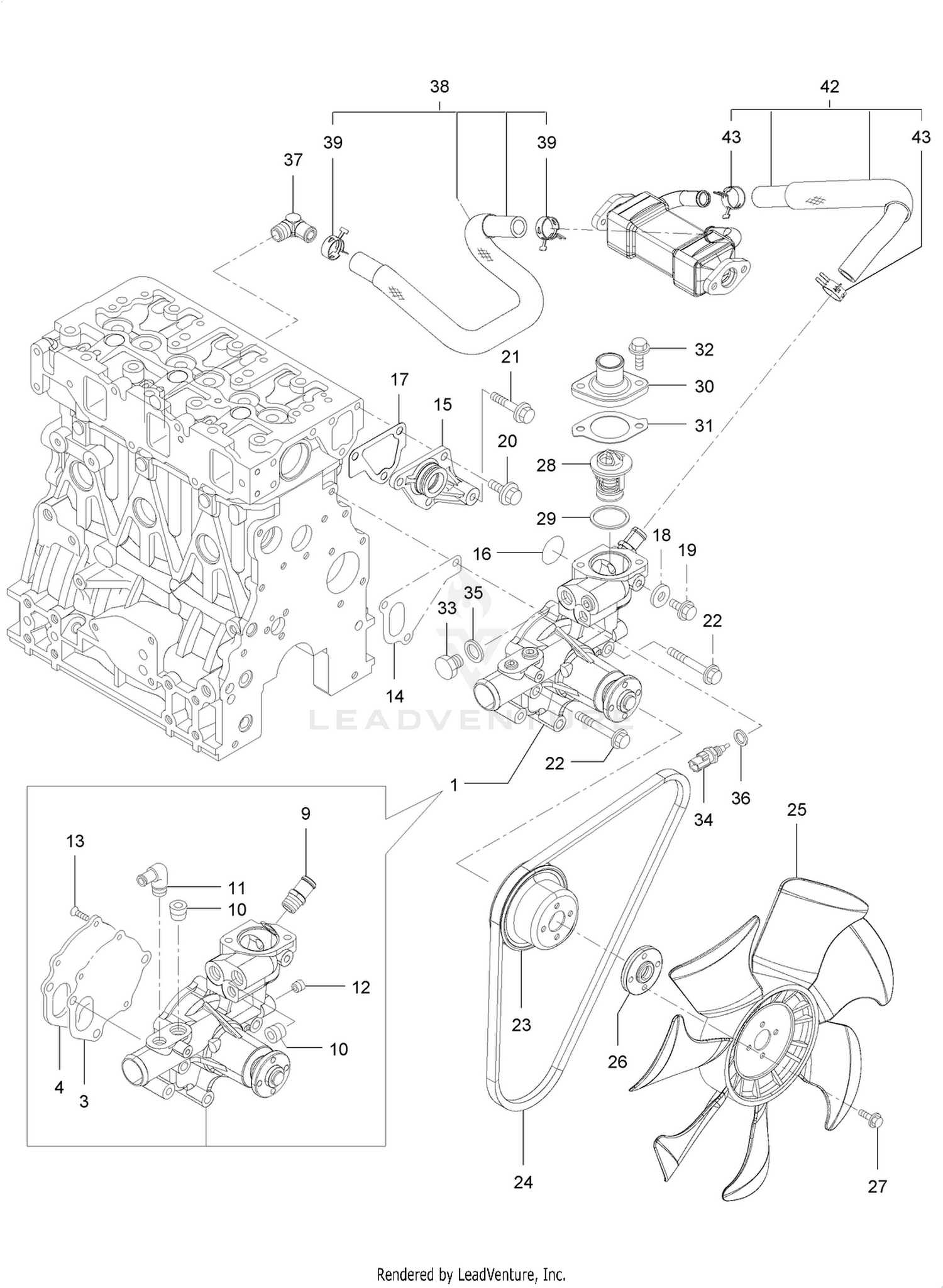

Cooling Water System Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-3071 | WATER PUMP ASM Price: $747.99 |
| 3 | 125-6998 | GASKET Price: $10.99 |
| 4 | 125-6999 | PLATE Price: $48.99 |
| 9 | 127-3017 | Joint Price: $57.99 |
| 10 | 125-7123 | PLUG Price: $7.99 |
| 11 | 125-7001 | ELBOW Price: $32.99 |
| 12 | 125-7195 | PLUG Price: $2.19 |
| 13 | 125-7234 | SCREW Price: $0.79 |
| 14 | 125-7047 | GASKET Price: $4.19 |
| 15 | 125-6986 | JOINT Price: $19.99 |
| 16 | 125-7048 | O-RING Price: $2.29 |
| 17 | 125-6978 | GASKET Price: $1.69 |
| 18 | 125-7192 | GASKET Price: $0.89 |
| 19 | 93-0362 | BOLT Price: $4.79 |
| 20 | 125-7214 | BOLT This part replaces 100-6928. Price: $0.99 |
| 21 | 125-7219 | BOLT Price: $1.39 |
| 22 | 125-7222 | BOLT Price: $1.59 |
| 23 | 127-4712 | V-PULLEY Price: $16.99 |
| 24 | 127-4771 | V-BELT Price: $47.99 |
| 25 | 127-4702 | FAN Price: $58.99 |
| 26 | 127-3810 | SPACER Price: $24.99 |
| 27 | 125-7209 | BOLT Price: $0.99 |
| 28 | 125-7029 | THERMOSTAT Price: $50.99 |
| 29 | 125-7026 | GASKET Price: $2.29 |
| 30 | 125-7034 | COVER Price: $70.99 |
| 31 | 125-7110 | GASKET Price: $3.39 |
| 32 | 125-7594 | BOLT Price: $1.19 |
| 33 | 125-6953 | PLUG Price: $6.19 |
| 34 | 125-7124 | SENSOR-THERMOSTAT, CW Price: $86.99 |
| 35 | 125-6979 | GASKET Price: $2.09 |
| 36 | 125-7176 | WASHER-SEAL Price: $2.59 |
| 37 | 127-4705 | ELBOW Price: $46.99 |
| 38 | 127-4757 | E G R-C PIPE ASM Price: $52.99 |
| 39 | 127-3020 | Clip-Hose Price: Call Us |
| 42 | 127-3811 | CW PIPE ASM Price: $74.99 |
