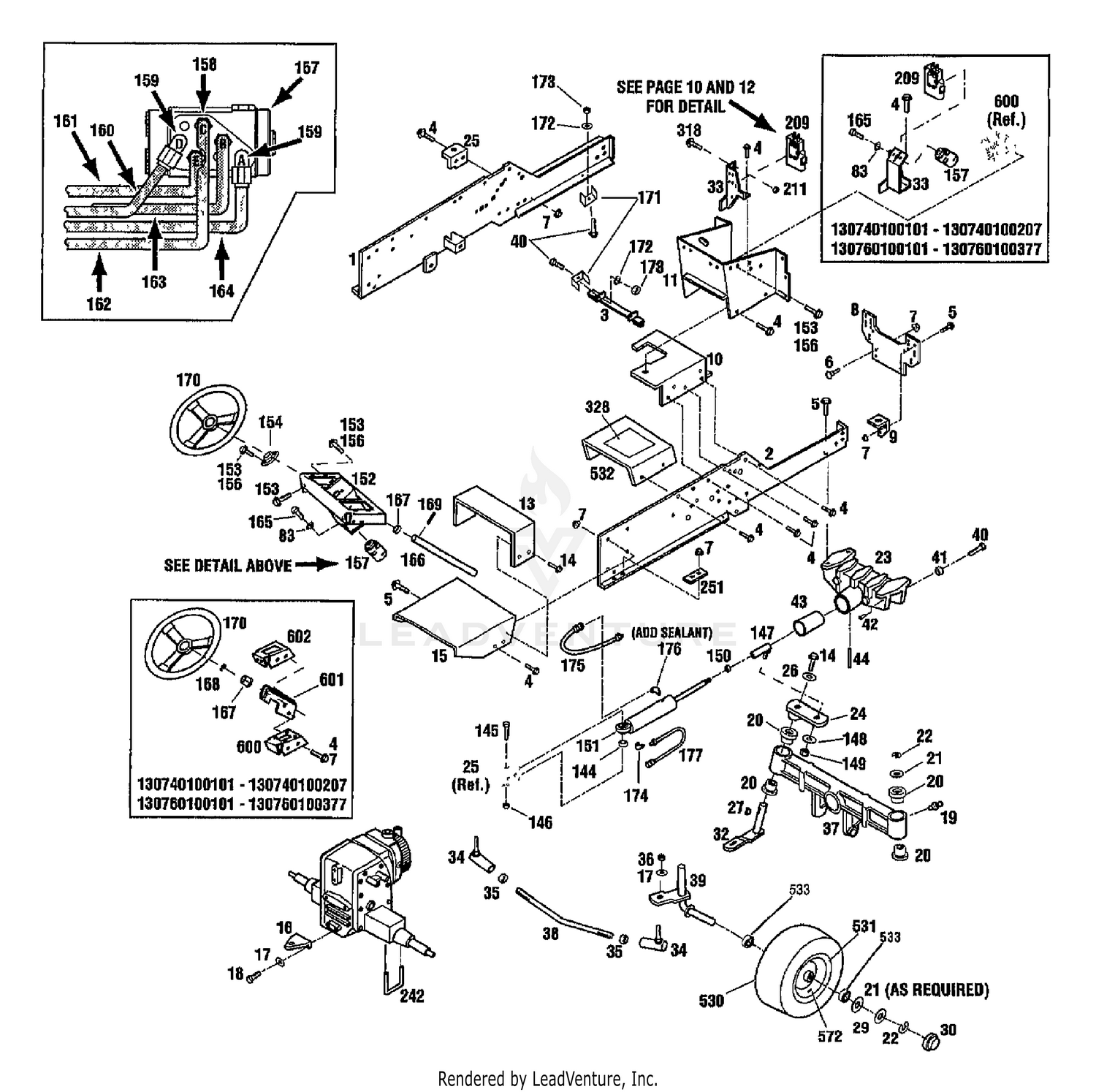

| Ref | Part Number | Description |
|---|
| 1 |
1755513010 |
ASSM-FRAME Price: Call Us |
| 2 |
1752634010 |
ASSM-FRAME Price: Call Us |
| 3 |
1767392 |
ASSM-FRAME SUPPORT Not Available Price: |
| 4 |
1186345 |
SCREW Not Available Price: |
| 5 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 6 |
1739656 |
SCR-CARR 3 Not Available Price: |
| 7 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 8 |
1752665001 |
PLATE-FRON Not Available Price: |
| 9 |
1752746001 |
SUPPORT-ENGINE Not Available Price: |
| 11 |
1755514010 |
SUPPORT Not Available Price: |
| 13 |
1756513001 |
SUPPORT-FENDER Not Available Price: |
| 14 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 15 |
1756512001 |
SUPPORT-FUEL TANK Not Available Price: |
| 16 |
1724698001 |
DRAWBAR HITCH Not Available Price: |
| 17 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 18 |
710-3032 |
Hex Cap Screw, 1/2-13 x 1.25 This part replaces 1100055. Price: $5.66 |
| 19 |
937-0146 |
Grease Fitting This part replaces 1185976. Price: $4.80 |
| 20 |
1752556 |
BEARING-FL Not Available Price: |
| 21 |
1915058 |
WASHER-1.0X1.5X.0 Not Available This part replaces 1703073. Price: |
| 22 |
1185689 |
RETAINING RING EXT Not Available Price: |
| 23 |
1754321001 |
BOLSTER-FRONT AXLE Not Available Price: |
| 24 |
1752797001 |
ARM STEERING Not Available Price: |
| 25 |
1751629001 |
BRACKET CY Not Available Price: |
| 26 |
1186033 |
WASHER-1.7 Not Available Price: |
| 29 |
1766242 |
WASHER-SPECIAL .75 Not Available Price: |
| 30 |
1766215 |
HUB CAP Not Available Price: |
| 32 |
1752518 |
SPINDLE WHEEL (LH) Not Available This part replaces 1752518001. Price: |
| 34 |
923-0179 |
Drag Link End This part replaces 1713361. Price: $36.97 |
| 35 |
712-3029 |
Nut, 1/2-20, Jam This part replaces 1186247. Price: $6.01 |
| 36 |
712-0239 |
Hex Lock Nut, 1/2-20 This part replaces 1110152. Price: $5.01 |
| 37 |
1757627001 |
AXLE FRONT Not Available Price: |
| 38 |
1746138 |
ROD TIE Not Available Price: |
| 39 |
1752520 |
SPINDLE WHEEL (RH) Not Available Price: |
| 40 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces 1100045. Price: $3.66 |
| 41 |
712-3007 |
Jam Nut, 5/16-18 This part replaces 1186258. Price: $6.06 |
| 42 |
1751219 |
DAMPER-VIBRATION Not Available Price: |
| 43 |
1744374 |
TUBE-PIVOT Not Available Price: |
| 44 |
1733103 |
PIN-.312X. Not Available Price: |
| 83 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 144 |
1759293 |
SLEEVE-CYL Not Available Price: |
| 145 |
1107073 |
SCR-HH 5/8 Not Available Price: |
| 146 |
912-0261 |
HEX NUT Not Available This part replaces 1110112. Price: |
| 147 |
1719003 |
JOINT BALL Not Available Price: |
| 149 |
712-3063 |
Nut, Hex Crown Lock, 5/8-18 This part replaces 1110297. Price: $7.26 |
| 150 |
712-3056 |
Jam Nut, 5/8-18 This part replaces 1186249. Price: $4.21 |
| 151 |
1751627001 |
HYDRO CYLINDER Not Available Price: |
| 152 |
1771350001 |
BRKT Not Available Price: |
| 153 |
710-04049 |
Flange Screw, 5/16-18,.625, Gr5 This part replaces 1186328. Price: $4.11 |
| 154 |
1736440 |
BEARING FL Not Available Price: |
| 156 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 157 |
1767378 |
CONTROL UNIT Price: Call Us |
| 158 |
1717563 |
CONNECTOR Not Available Price: |
| 159 |
727-3012 |
Elbow, 90 Deg Tube This part replaces 1185737. Price: $23.35 |
| 160 |
1767742 |
TUBE-HYD RIGHT Price: Call Us |
| 161 |
1767741 |
TUBE-HYD PB VALVE Not Available Price: |
| 162 |
1767740 |
TUBE PRESS Not Available Price: |
| 163 |
1767743 |
TUBE-HYD LEFT Price: Call Us |
| 165 |
1860203 |
SCR-HH M6-1.0X19MM Price: Call Us |
| 166 |
1767383 |
SHAFT-STEERING Not Available Price: |
| 168 |
716-0231 |
E-ring..75 This part replaces 1185388. Price: $3.50 |
| 174 |
1185739 |
ELBOW Not Available Price: |
| 176 |
1756142 |
ELBOW Not Available Price: |
| 242 |
1727898 |
U-BOLT Not Available Price: |
| 251 |
1730692001 |
BRLT-DOUBLER REAR Not Available Price: |
| 328 |
1767130 |
DECAL-OPERATING IN Not Available Price: |
| 530 |
734-0275-0902 |
TIRE-16X6.5 Not Available This part replaces 1768792. Price: |
| 531 |
1767101 |
WHEEL Not Available Price: |
| 532 |
1767113 |
TUNNEL W/DECAL Price: Call Us |
| 533 |
1756524 |
BALL BEARING Not Available Price: |
| 572 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
