| Ref | Part Number | Description |
|---|
| 1 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 2 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 3 |
99-1629 |
GUIDE-LEVER Price: $3.51 |
| 4 |
85-0290 |
SPACER-PIVOT, SEAT Price: $7.26 |
| 5 |
323-9 |
SCREW-HH Price: $1.29 |
| 6 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 7 |
107-2163-01 |
FENDER-RH This part replaces 98-0918. Price: $272.65 |
| 8 |
98-8160 |
PLATE-LATCH, LEVER Price: $37.76 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
98-0980 |
STRIP-BASE, SEAT Price: $9.78 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
98-0981 |
PAD-BASE, SEAT Price: $8.90 |
| 13 |
98-0982 |
STRIP-FENDER Price: $5.94 |
| 14 |
32128-20 |
NUT-HF Price: $0.99 |
| 15 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 16 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 17 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 18 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 20 |
98-0972 |
DECAL-SAND PRO 5020 Price: $31.13 |
| 21 |
3219-14 |
NUT-HEX Price: $0.25 |
| 22 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 23 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 24 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 25 |
28-4210 |
SOLENOID Price: $63.91 |
| 26 |
98-0917 |
ROD-PROP Price: $51.33 |
| 27 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 28 |
321-3 |
SCREW-HH Price: $0.28 |
| 29 |
98-0966-03 |
PANEL-REAR, LH This part replaces 98-0966. Price: $80.64 |
| 30 |
98-8150 |
SEAT BASE ASM Price: $922.16 |
| 33 |
32148-8 |
NUT-CLINCH Price: $2.31 |
| 34 |
98-0962 |
FRAME ASM Price: $4,249.35 |
| 35 |
32148-11 |
NUT-CLINCH Price: $1.56 |
| 36 |
93-9052 |
DECAL-DANGER Price: $24.34 |
| 37 |
85-8780 |
TREAD-FLOOR, RH Price: $27.04 |
| 38 |
85-8790 |
TREAD-FLOOR, LH Price: $27.04 |
| 39 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 40 |
85-9680-01 |
PANEL-LH This part replaces 85-9680. Price: $444.11 |
| 41 |
85-8490 |
DISCONTINUED Price: Call Us |
| 42 |
98-0902-03 |
PANEL-REAR, RH This part replaces 98-0902. Price: $90.67 |
| 43 |
93-9050 |
DECAL-INSTRUCTIONS, OPERATING Price: $29.50 |
| 44 |
98-0965 |
TOP PANEL ASM Price: $162.05 |
| 46 |
3290-496 |
NUT-RETAINER Price: $5.99 |
| 47 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 48 |
93-9053 |
DISCONTINUED Price: Call Us |
| 49 |
322-2 |
SCREW-HH Price: $0.69 |
| 50 |
3274-56 |
SCREW-HSH Price: $5.99 |
| 51 |
32115-15 |
PUSHNUT-RETAINER, BOLT Price: $0.99 |
| 52 |
3290-199 |
NUT-SPEED Price: $4.09 |
| 501360205 |
501360205 |
WASHER Price: $3.99 |
| 501361188 |
537184701 |
NUT M6 This part replaces 501361188. Price: $3.99 |
| 501364878 |
537184501 |
SCREW M6 This part replaces 501364878. Price: $3.99 |
| 501364938 |
501364938 |
SCREW Price: $3.99 |

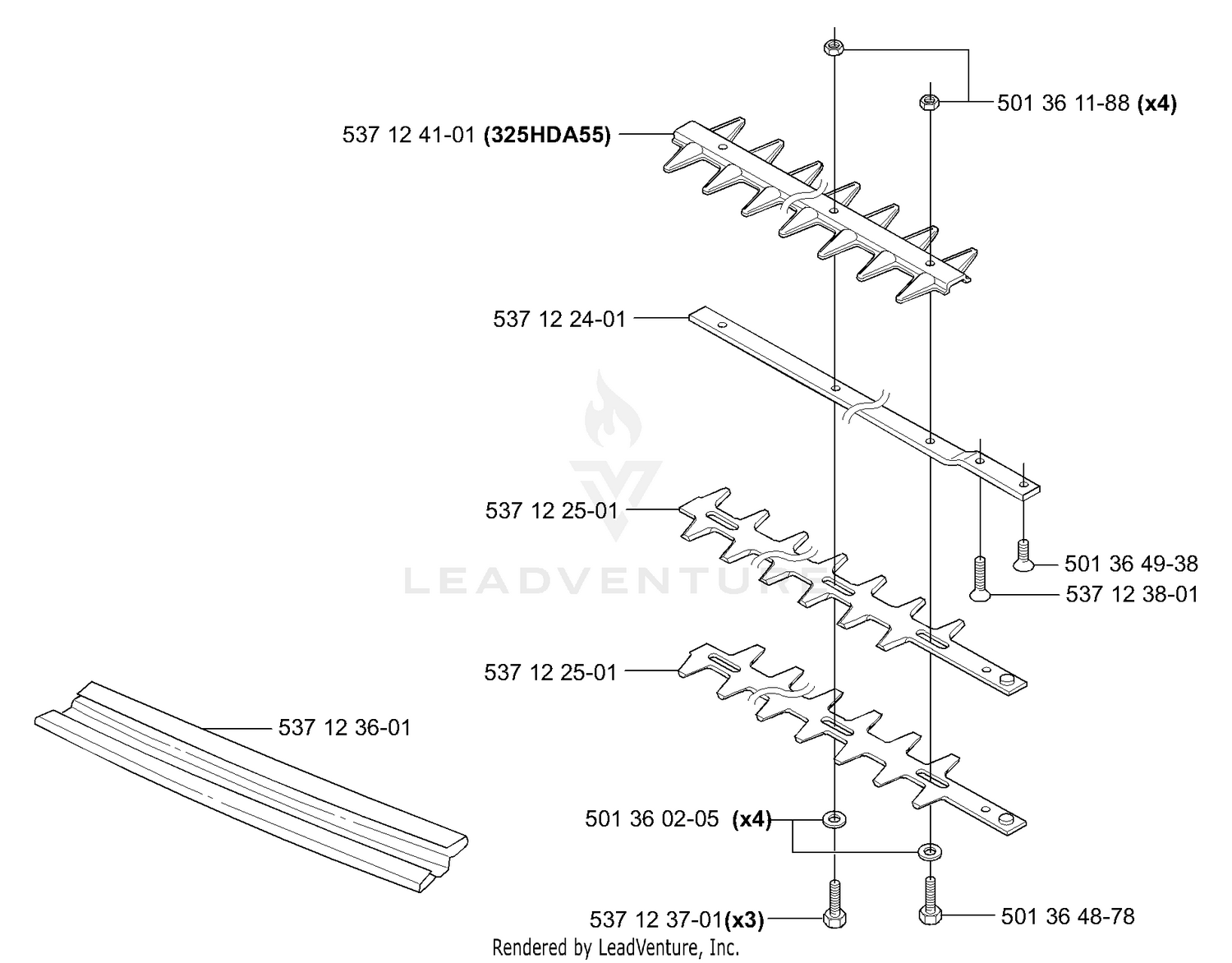

| 537122401 |
537184401 |
SUPPORT BAR M6 This part replaces 537122401. Price: $59.99 |
| 537122501 |
537122501 |
BLADE (EACH) Price: $89.99 |
| 537123601 |
537123601 |
PROTECTOR Price: $34.99 |
| 537123701 |
537184601 |
SCREW M6 This part replaces 537123701. Price: $3.99 |
| 537123801 |
537123801 |
SCREW Price: $4.99 |
