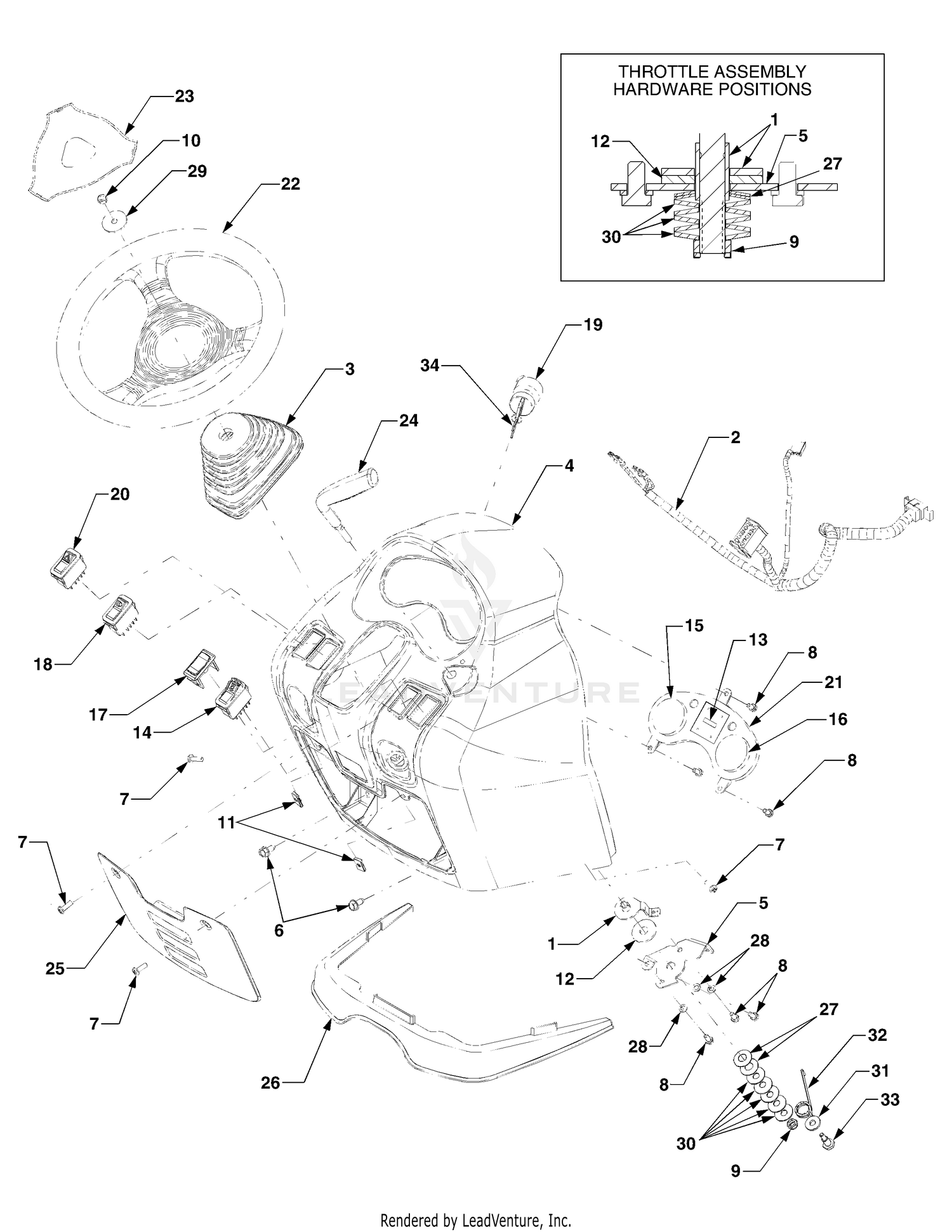

| Ref | Part Number | Description |
|---|
| 1 |
603-04305 |
THROTTLE TAB ASSEMBLY Not Available Price: |
| 2 |
629-04112 |
DASH PANEL HARNESS Not Available Price: |
| 3 |
631-0076 |
STEERING TILT BOOT ASSEMBLY Not Available Price: |
| 4 |
931-04007B |
DASH PANEL Not Available This part replaces 631-04007B. Price: |
| 5 |
703-05132A |
THROTTLE BRACKET Not Available Price: |
| 6 |
710-0604A |
Screw, Hex Wash. Hd. Tapp 5/16-18 x .625 Price: $3.96 |
| 7 |
710-0924 |
Screw, Pan Hd., 1/4-20 x .75 Price: $4.02 |
| 8 |
710-3013 |
Screw, Hex Cap, 1/4-20 x .5 GR5 Price: $4.02 |
| 9 |
712-0116 |
Nut, Hex Insert Jam Lock, 3/8-24 .. Price: $3.95 |
| 10 |
712-0237 |
Nut, Hex Lock, 5/16-24 Price: $4.37 |
| 11 |
712-0292 |
Nut, Speed, 1/4-20 Price: $8.97 |
| 12 |
723-3013 |
FRICTION DISC Not Available Price: |
| 13 |
925-04022B |
Meter, Indicator This part replaces 725-04022. Price: $129.03 |
| 14 |
925-04076 |
PTO SWITCH This part replaces 725-04076. Price: $98.15 |
| 15 |
725-04241 |
FUEL GAUGE Not Available Price: |
| 16 |
925-04259 |
GAUGE-TACH Not Available This part replaces 725-04259. Price: |
| 17 |
725-2017 |
SWITCH HOLE COVER Not Available Price: |
| 18 |
725-3274 |
SWITCH-HEADLAMP NLAUD Not Available Price: |
| 19 |
925-3277 |
IGNITION SWITCH This part replaces 725-3277. Price: $96.07 |
| 20 |
725-3279B |
HAZARD LAMP SWITCH Not Available Price: |
| 21 |
731-05066 |
CLUSTER PANEL Not Available Price: |
| 22 |
731-3209 |
STEERING WHEEL Not Available Price: |
| 23 |
731-06459 |
Cover, Steering Wheel This part replaces 731-3210. Price: $18.55 |
| 24 |
731-3298 |
THROTTLE HANDLE Not Available Price: |
| 25 |
731-3344 |
DASH PANEL INSERT Not Available Price: |
| 26 |
931-3372 |
DASH PANEL EXTENSION Not Available This part replaces 731-3372. Price: |
| 27 |
736-0255 |
Washer, Belleville, .51 x 1.14 x .04 Price: $4.02 |
| 28 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 29 |
936-04062 |
FLAT WASHER .344 IDX1.5X.1 Not Available This part replaces 736-04062. Price: |
| 30 |
736-0331 |
Washer, Belleville, .39 x 1.13 x .062 Price: $3.50 |
| 31 |
736-3072 |
Washer, Flat, .38 x .93 x .110 Hdn Price: $4.11 |
| 32 |
732-04288 |
Spring, Torsion Price: $7.93 |
| 33 |
738-05034 |
SHOULDER BOLT .395 DIA x .56 LG This part replaces 738-04170. Price: $6.57 |
